Chapter 3 79

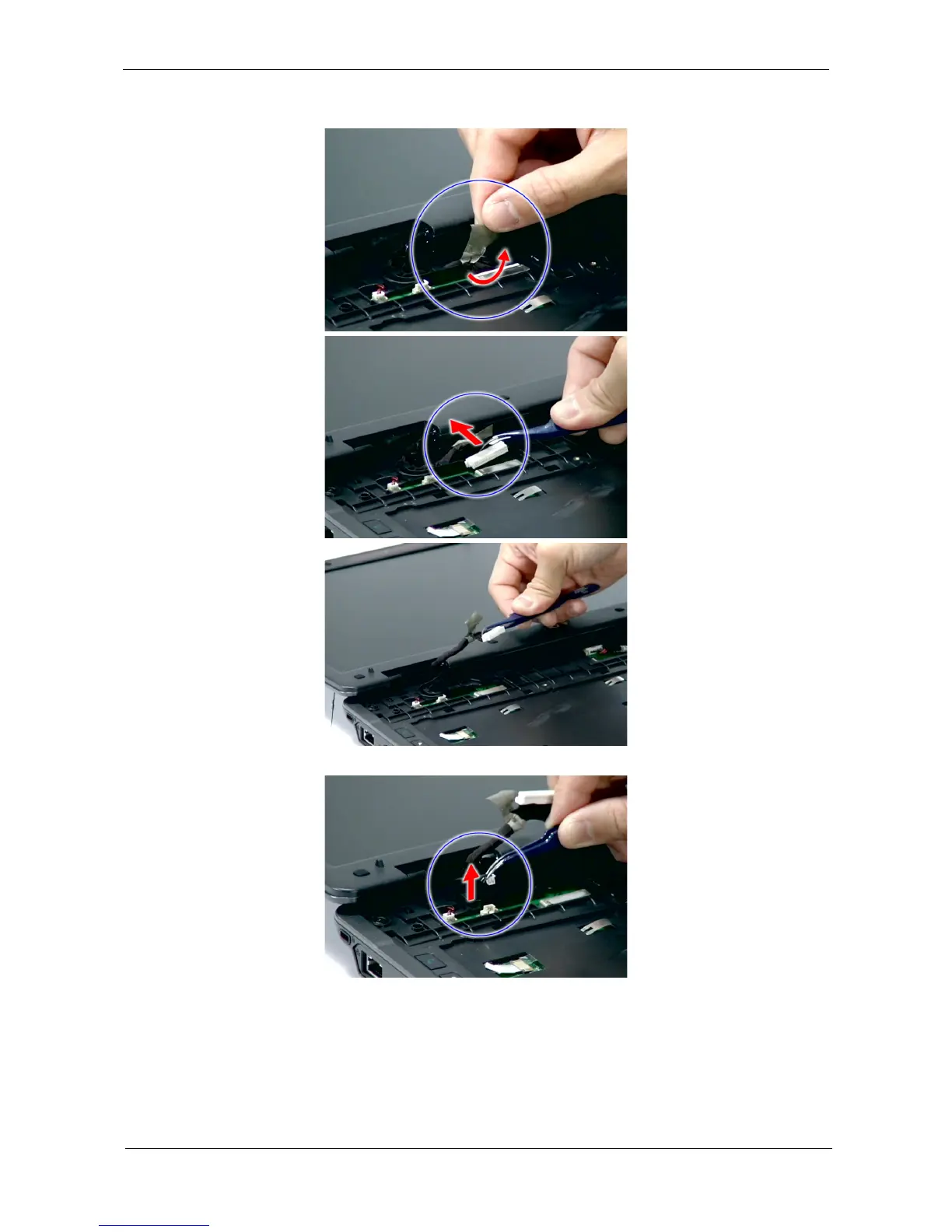

6. Remove the acetic tape and disconnect the LCD coaxial cable from the LCD1 connector on the main
board and release it from the latch.
7. Remove the internal microphone cable from the INTMIC1 connector on the main board.
