80 Chapter 3

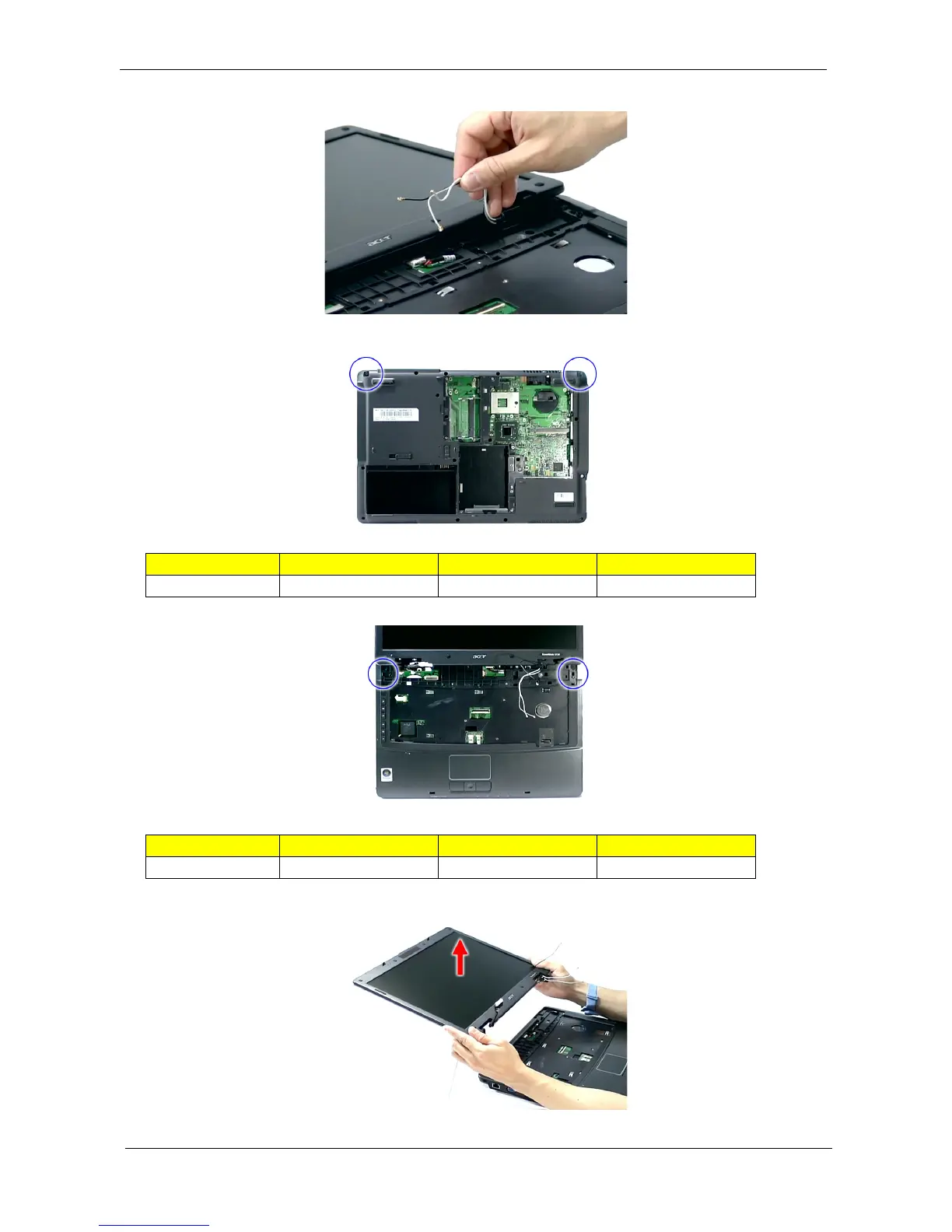

8. Release the wireless LAN antenna cables from the hole and latches as shown.
9. Remove the two screws (A) from the base of the unit.
10. Remove the two screws (H) from the left and right hinge of the LCD module.
11. Carefully remove the LCD module from the base unit.
NOTE: When connecting the cable back to the unit, please note that the cable should be routed well.
Step Size (Quantity) Color Torque
1~2 M2.5 x L6 (2) Black 4.0 kgf-cm
Step Size (Quantity) Color Torque
1~2 M2.5 x L8 (2) Black 4.0 kgf-cm
