ACTpro 1500 and 1520 Operating and Installation Manual
Page 6

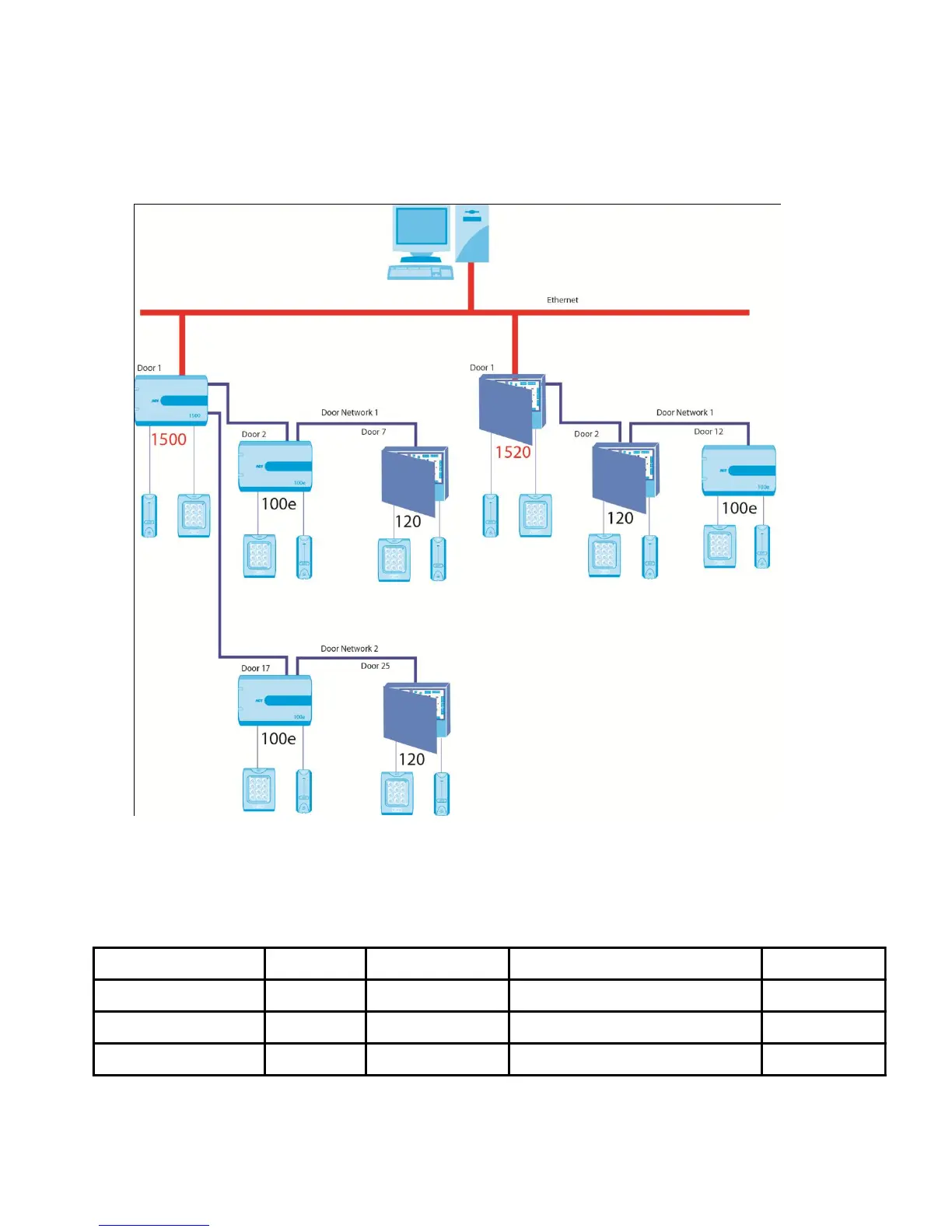

Diagram 2: illustrates an ACTpro 1500 and 1520 controllers managing 28 doors
(maximum is 32 doors each). With more than one controller ACTWin software required.
Diagram 2: Example: with ACTpro 1500 and 1520 Controllers
Cable Chart
From To Network Type Cable Type* Max Distance
ACTpro 1520 or 1500 PC Ethernet or USB CAT5 or mini USB 100m or 5m
ACTpro 1520 or 1500
ACTpro 120 or
100
RS485
Shielded and twisted single pair cable - Belden
9501 or equivalent.
1.4Km
ACTpro 1520, 1500, 120, 100 Readers ACT protocol 8 Core Screen 100m
