ACTpro 1500 and 1520 Operating and Installation Manual
Page 7
2.0 Installation diagram

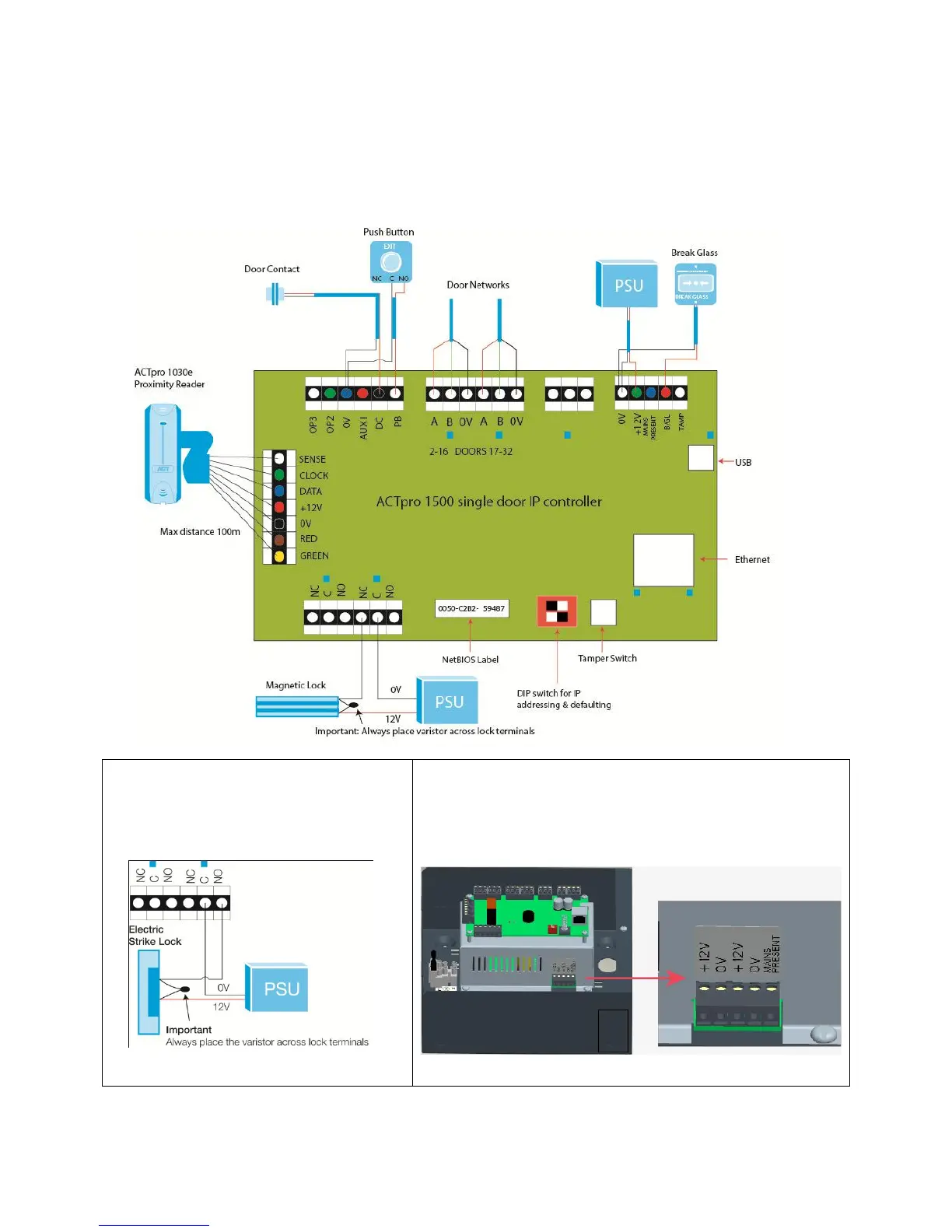

2.1 Diagram 3: ACTpro 1500 typical wiring
Note: For electric strike lock (de-
energized lock) wire between
“Common” and “Normally open” pins.
Note: The ACTpro 1520 is an ACTpro 1500 enclosed
in an ACT 12V DC 2amp power supply unit. The 12V
DC outputs are regulated by the same 2amp fused
output.
