ActionTec V1000H User Manual

11
Chapter 2 Getting Started

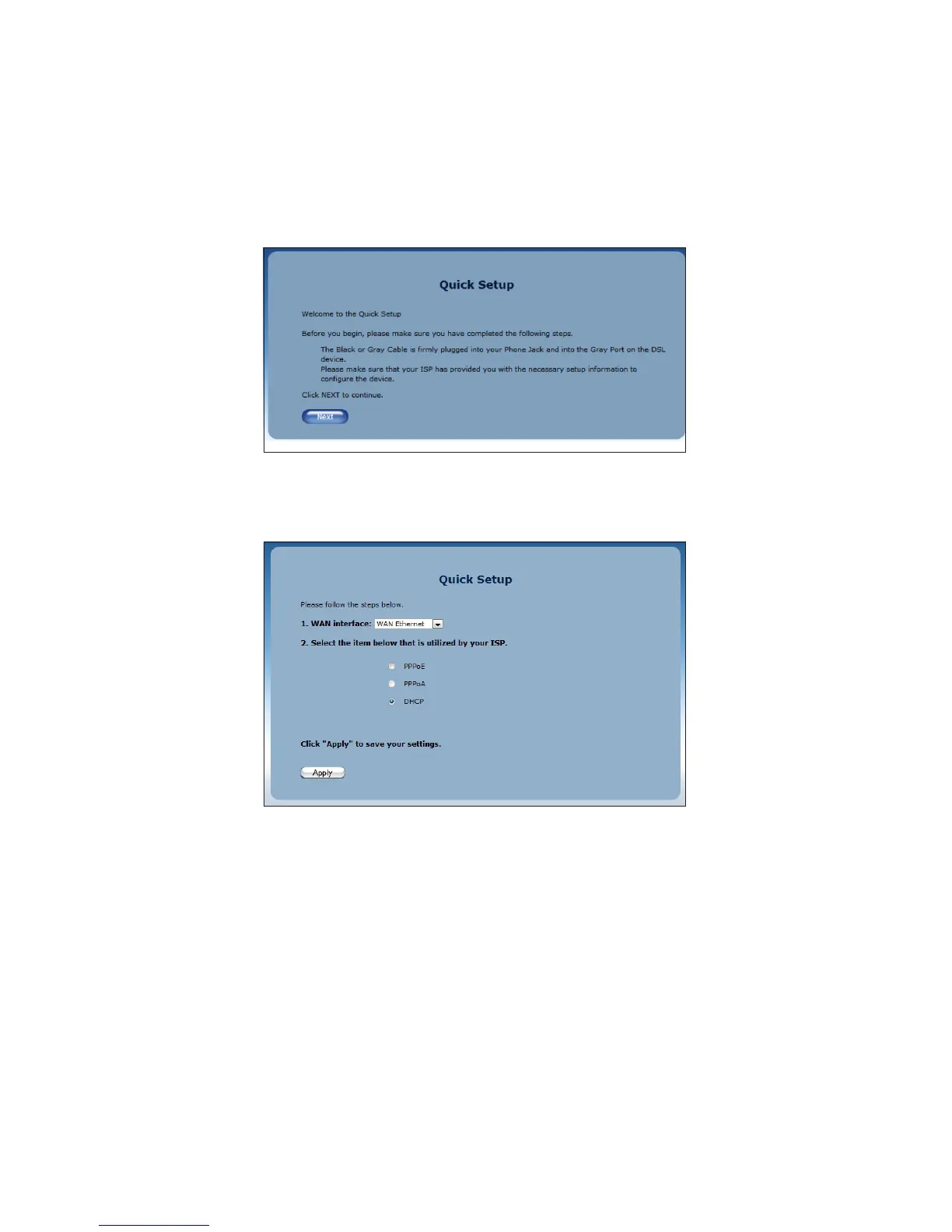

Manual Setup
Selecting this option takes you to the Quick Setup screen. To perform a quick setup:
In the first Quick Setup screen, follow the onscreen instructions, then click 1. Next.
Another Quick Setup screen appears. Select the WAN interface you are using 2.
from the WAN Interface drop-down list.
Select the protocol used by your ISP by clicking in the appropriate radio but-3.
ton. If PPPoE or PPPoA was selected, enter the PPP username and password in
the text boxes that appear.
Click 4. Apply to save your changes.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
