ActionTec V1000H User Manual

50
Wireless VDSL Modem Router
QoS Settings
The QoS Settings screens allow you to prioritize certain types of data traffic (video,
for example) over other data traffic on the Modem Router’s network. Both incom-
ing data traffic (QoS Upstream) and outgoing data traffic (QoS Downstream) can
be configured.

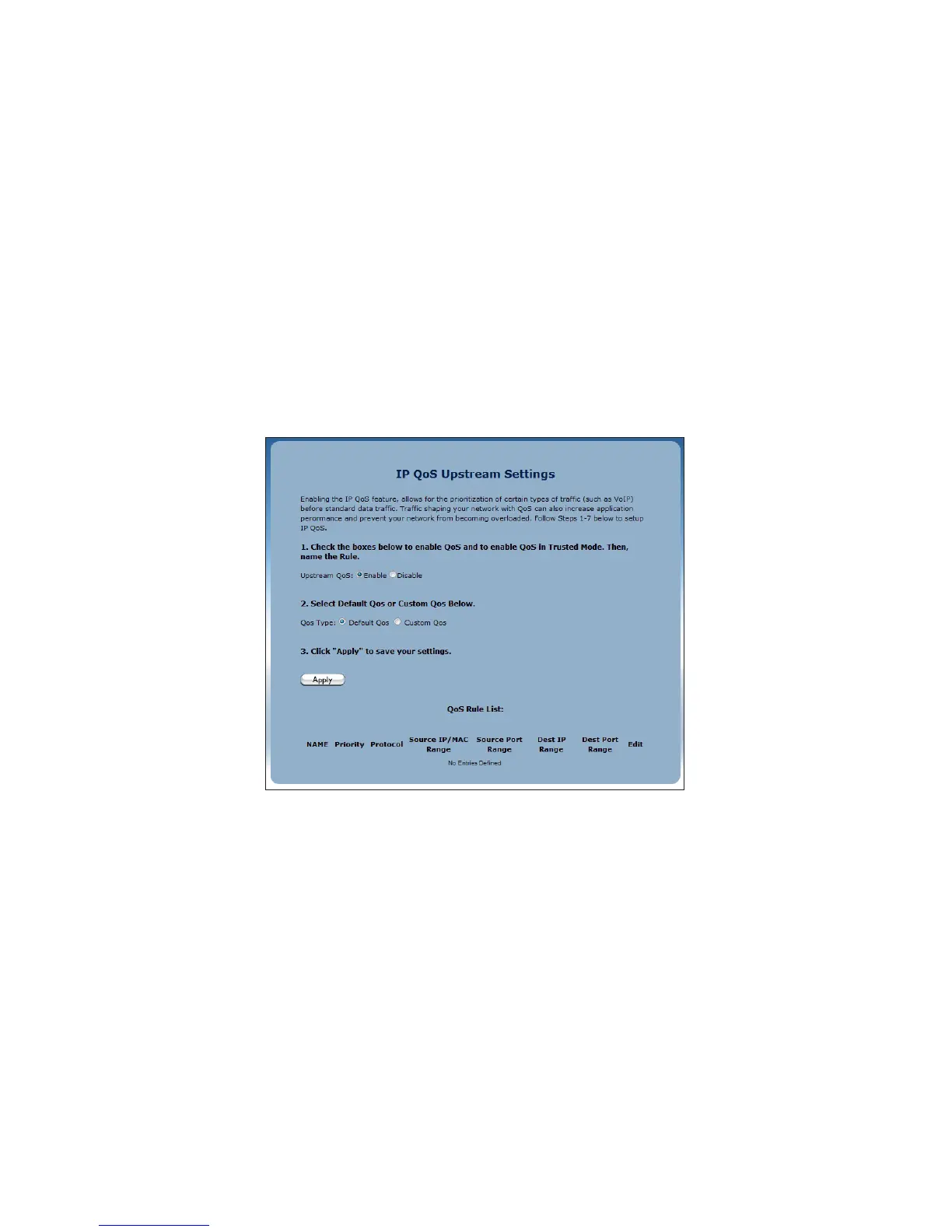

QoS Upstream
Click 1. QoS Upstream from the menu on the left side of any Advanced Setup
screen. The QoS Upstream screen appears.
Click in the Enable radio button next to Upstream QoS to activate.1.
Select the type of QoS to enable. If selecting Custom QoS, you will have 2.
to enter a number of values: Name, Queue Priority, Reserved Bandwidth,
Protocol, TOS Bit Value, Source IP or MAC address information, Destination
IP Address, Netmask IP Address, and Port Pange. Do not select Custom QoS
unless you are an experienced network technician. For most wireless networks,
the Default QoS option should be sufficient.
Click 3. Apply to save your changes. The new QoS setting will appear at the bot-
tom of the screen, under QoS Rule List.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
