ActionTec V1000H User Manual

55
Chapter 5 Advanced Setup

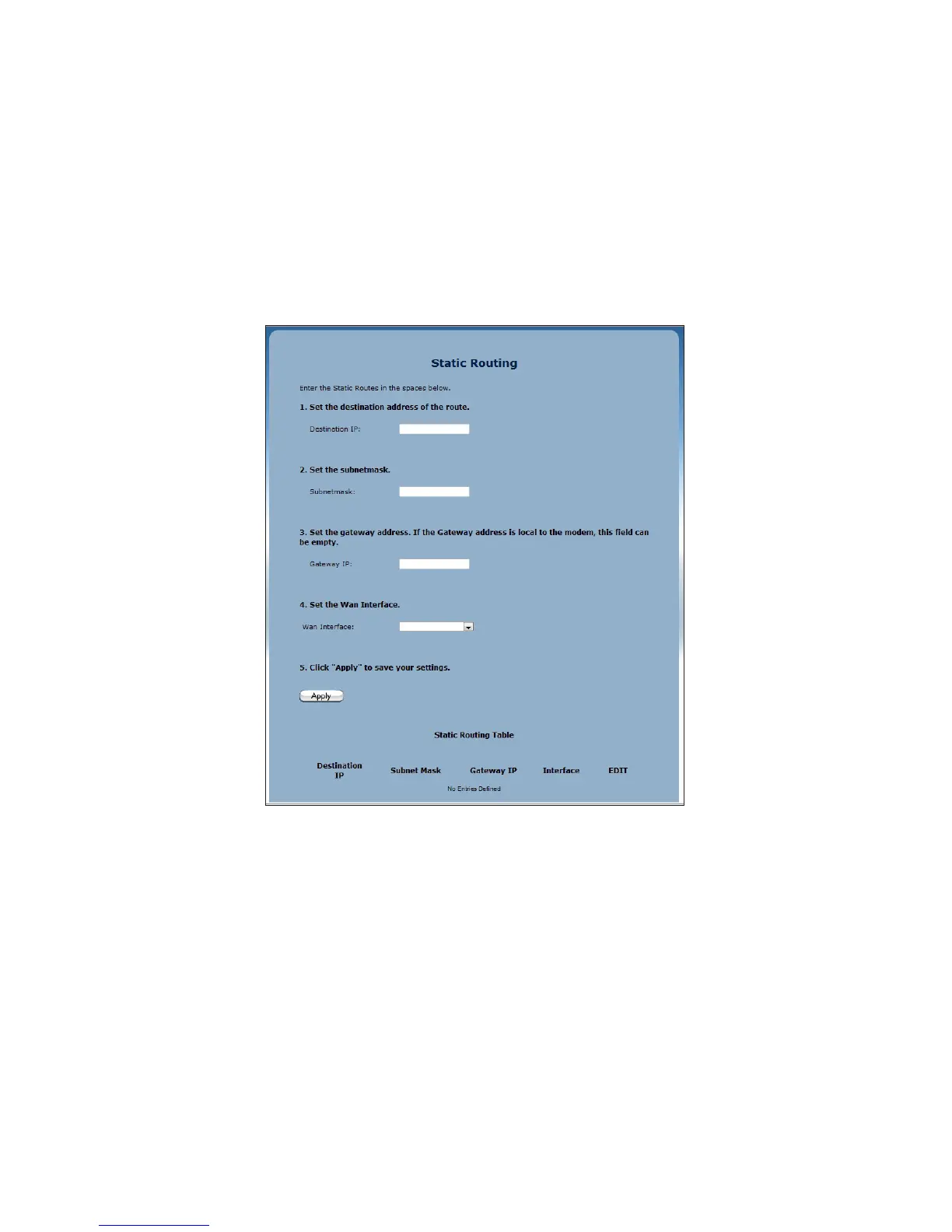

Static Routing
The Static Routing screen allows you to set up static routes on the Modem Router.
To use:
Click 1. Static Routing from the menu on the left side of any Advanced Setup
screen. The Static Routing screen appears.
Enter the destination IP address of the static route in the Destination IP 2.
text box.
Enter the subnet mask IP address in the Subnetmask text box.3.
If applicable, enter the gateway IP address in the Gateway IP text box.4.
Select a WAN interface from the WAN Interface drop-down list.5.
Click 6. Apply to save your changes.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
