Chapter 1 Introduction
USB
The USB LED illuminates when a USB device is connected via the Modem
Router’s USB port. This port is not currently operational, but may be enabled in
a future firmware update.
Wireless
The Wireless LED illuminates when the Modem Router is connected wirelessly,
assuming the Modem Router’s Wireless feature is turned on.
WPS Button
The WPS button activates WPS (WiFi Protected Setup) on the Modem Router.
To use WPS, press the WPS button on the Modem Router, then, within two
minutes, press the WPS button on a device you wish to connect to the Modem
Router’s wireless network. The device will automatically join the Modem
Router’s wireless network. Repeat for other wireless devices.

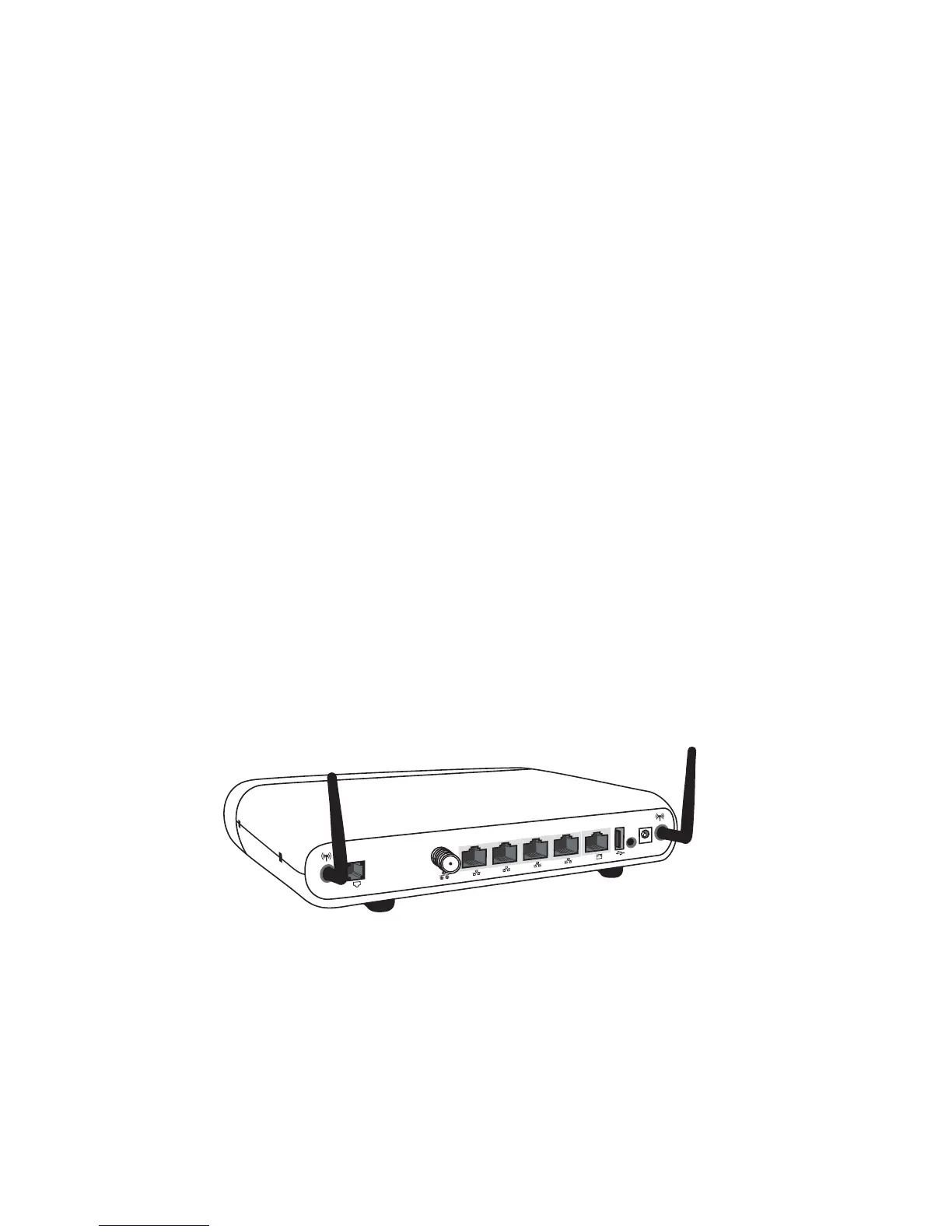

Rear Panel
The rear panel of the Modem Router features 8 ports (Line, HPNA, LAN Ethernet,
WAN Ethernet, USB, and Power), as well as a Reset switches.
4
3
2
1
LAN
WAN
Ethernet Cable
(from LAN Ethernet Port
to Computer/Device)
Ethernet Cable
(from WAN Port
to ISP Connection)
Power Adapter
(from Power Port
to Wall Outlet)
Coaxial Cable
(from Coax Port
to Set Top Box)
USB1
USB Cable
(from USB Port
to Device)
USB
HPNA
Line
Reset
Power

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black
