ActionTec V1000H User Manual

24
Wireless VDSL Modem Router
Begin creating your list by selecting a wireless device that appears on the Select 4.
Device Name drop-down list. You can also enter a devices MAC address in the
Manually Add MAC Address text box.
Click 5. Apply. The device will appear in the MAC Authentication Device List at
the bottom of the screen.
Repeat steps 4 and 5 to add more wireless devices.6.

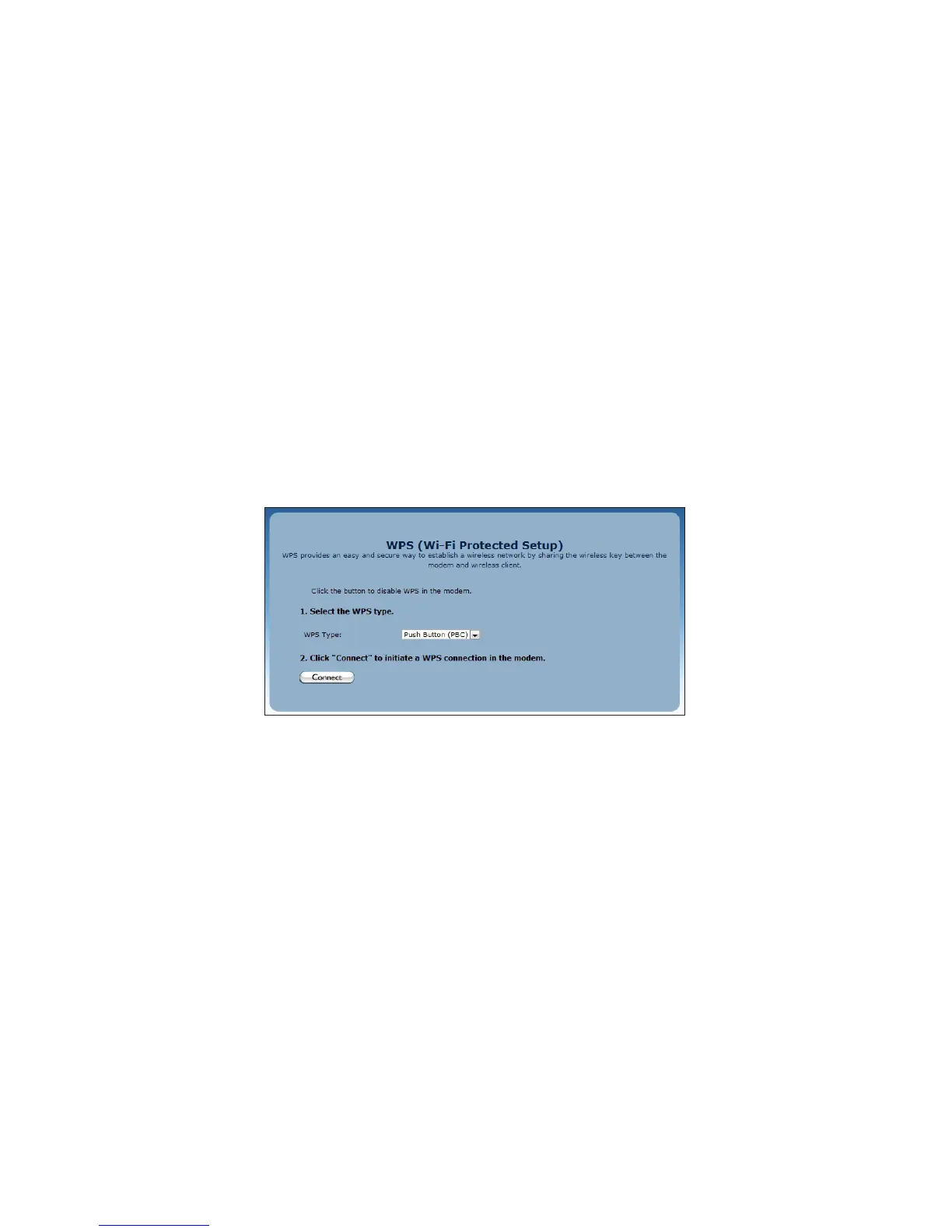

WPS
Click WPS in any Wireless screen to generate the WPS (Wi-Fi Protected Setup)
screen.WPS provides a simple method of setting up a wireless network by automati-
cally sharing the network key between the Modem Router and other wireless devices.
There are three ways to set up WPS on the Modem Router: Push Button (PBC),
AP PIN, and End Device PIN.
Push Button (PBC)
Select Push Button (PBC) from the drop-down list.1.
Click 2. Connect.
Press the PBC-compatible button on another wireless device within two minutes 3.
to have that device join the wireless network.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
