ActionTec V1000H User Manual

43
Chapter 5 Advanced Setup

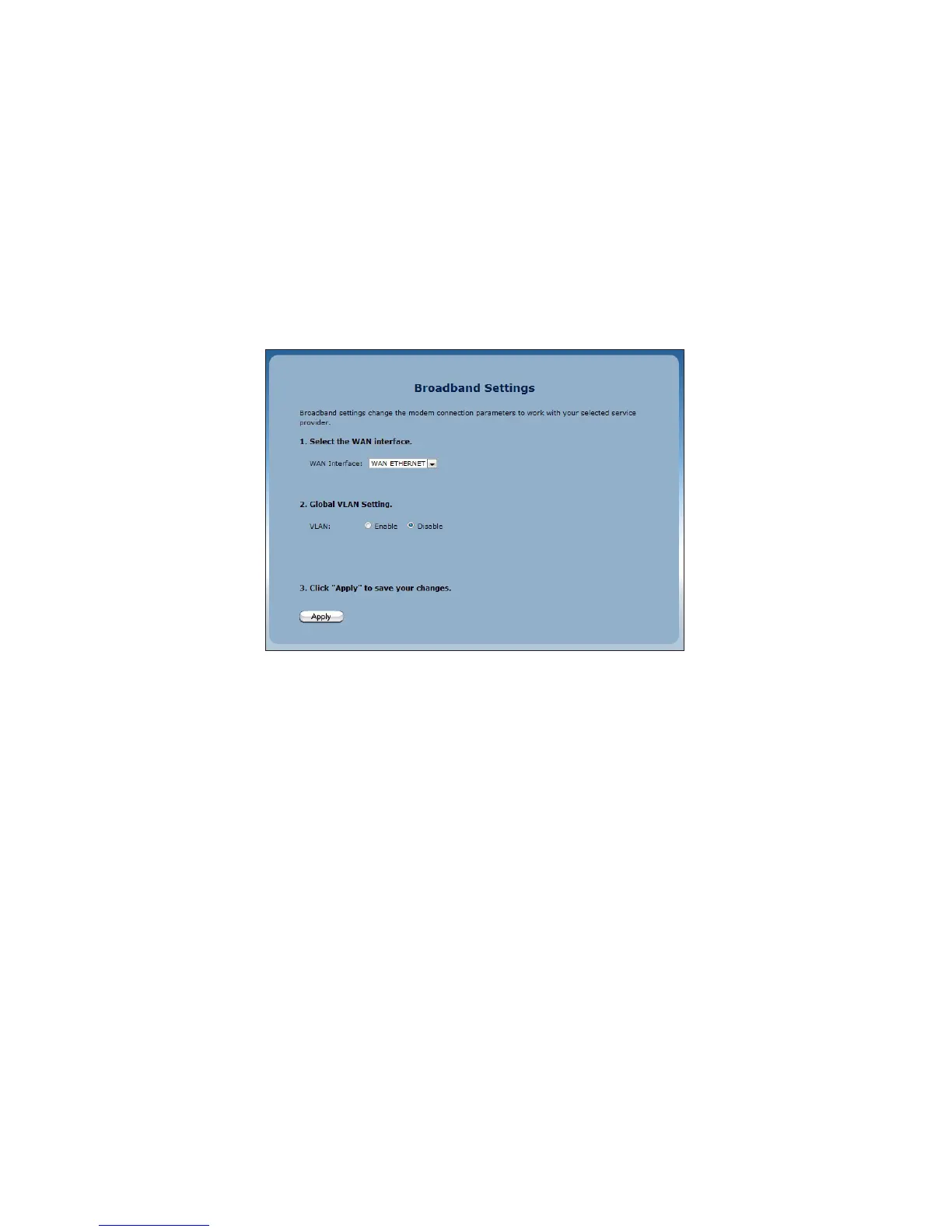

Broadband Settings
The Broadband Settings screen allows the Modem Router to connect to differ-
ent service providers, which may have different connection parameters than the
Modem Router’s default settings. To change Broadband Settings:
Click 1. Broadband Settings from the menu on the left side of any Advanced
Setup screen. The Broadband Settings screen appears.
Select the type of WAN interface the service providers uses. Options are WAN 2.
Ethernet, WAN DSL PTM, and WAN DSL ATM.
Enable or disable Global VLAN on the Modem Router by clicking in the 3.
appropriate radio button. Global VLANs are used on the WAN and LAN
sides to create virtual networks. Do not enable or disable Global VLAN unless
instructed to do so by your ISP.
Click 4. Apply to save your changes.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
