ActionTec V1000H User Manual

26
Wireless VDSL Modem Router

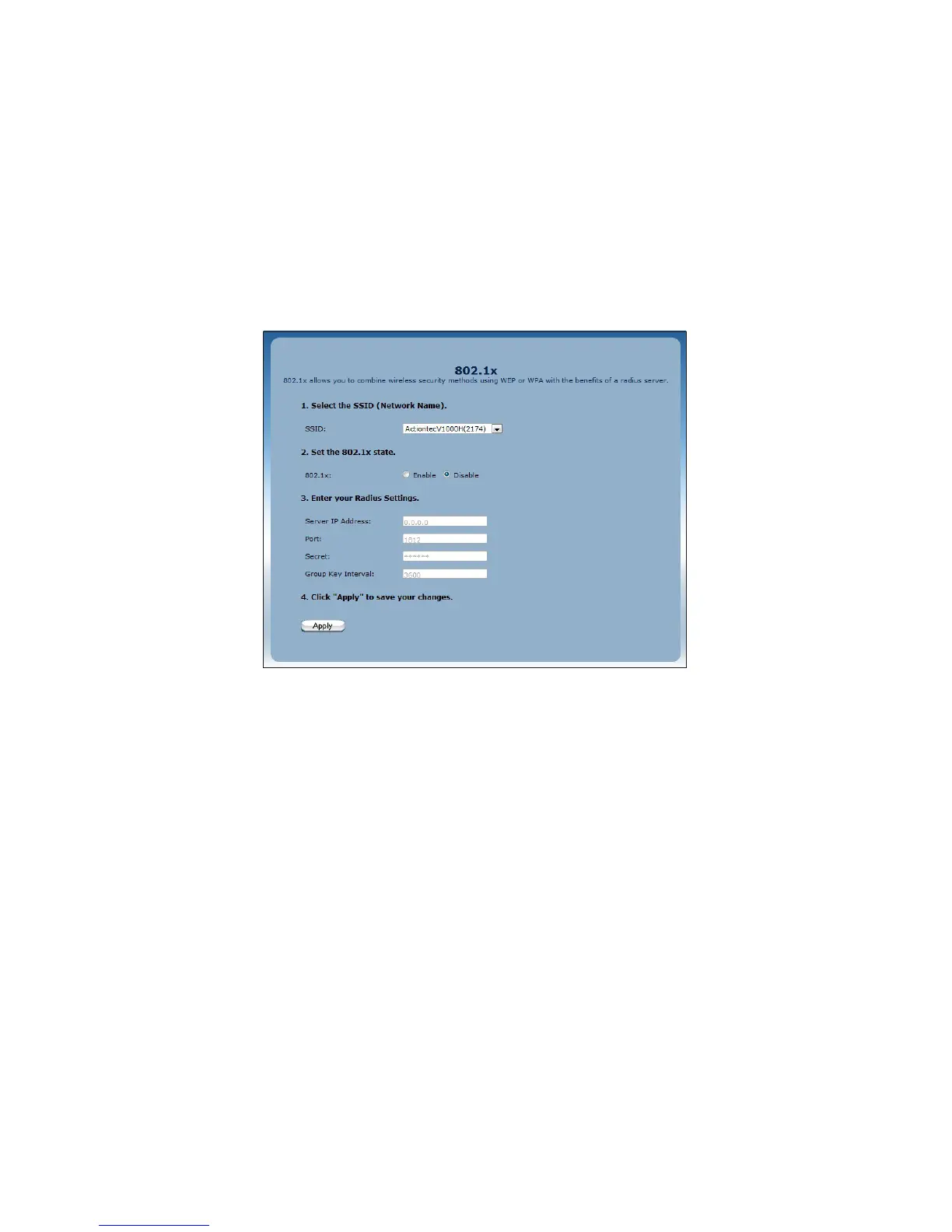

802.1x
802.1x is a robust security protocol that uses port control with dynamically
changing encryption keys automatically updated over the network. 802.1x uses a
RADIUS (Remote Authentication Dial-in Service) server for authentication pur-
poses. This server must be physically connected to the Modem Router. Also, the
user must enable the RADIUS client embedded in the Modem Router.
To set up 802.1x security:
Select the Modem Router’s wireless network name from the SSID drop-down list.1.
Click in the radio button next to Enable under step 2.2.
Enter the RADIUS server’s port number in the Radius Port text box.3.
Enter the RADIUS server’s shared secret in the Radius Key text box.4.
Enter the group key interval in the Group Key Interval text box.5.
Click 6. Apply to save your changes.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
