ActionTec V1000H User Manual

32
Wireless VDSL Modem Router

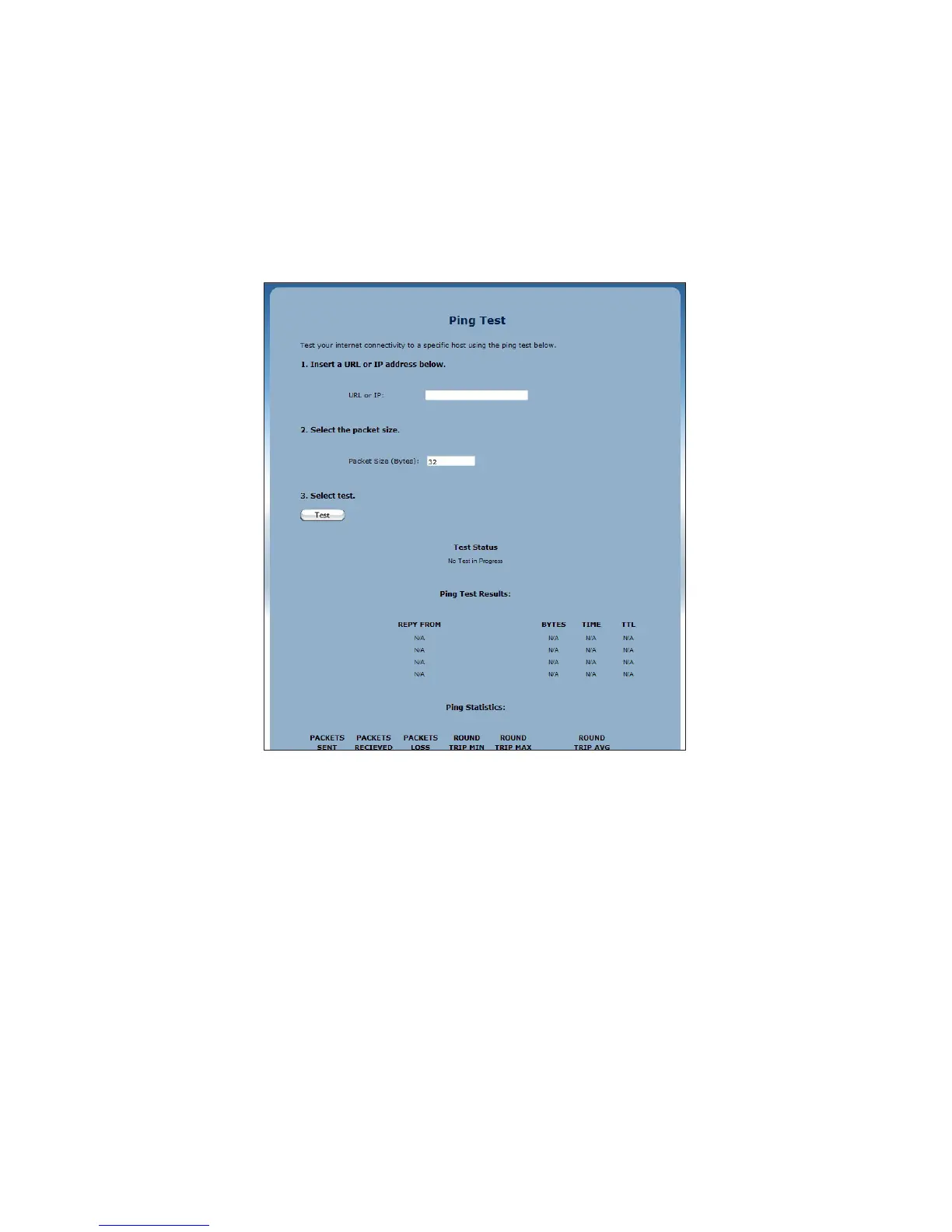

Ping Test
Selecting Ping Test from any Utilities screen generates the Ping Test screen, which
is used to check whether the Modem Router is properly connected to the Internet.
Follow the on-screen instructions to perform the test. The results will be displayed
at the bottom of the screen.

ActionTec V1000H Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Firewall security	Application-level gateway (ALG), Protocol and generic packet filter
Security algorithms	WEP, WPA, WPA2, WPS
Dimensions (WxDxH)	- mm
Product color	Black

Weight and Dimensions

Weight	- g
