Operation Manual - LC7-2 Wall Control
Document: 0525-080 Ver. 1 190923
13.03.03. Temperature Set Back Screens

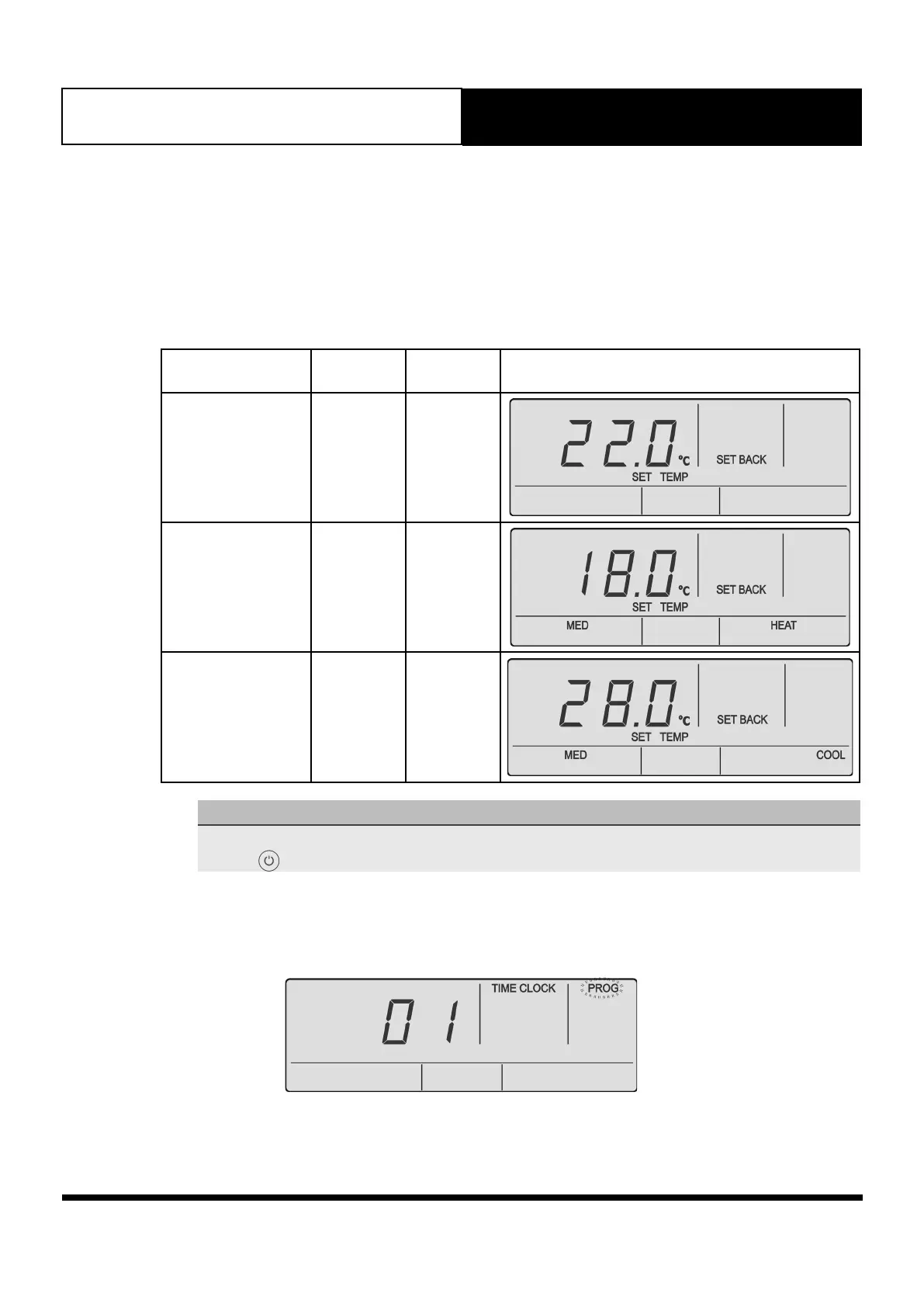

Tabulated below are the different screens that are displayed on the LC7-2 during Set back operation.
H
Set back
- Heat To Set back limit
C
Set back
- Cool To Set back limit
U
setpoint
- Unit setpoint prior to unit turned off
R
temp
- Room Temperature
Case
Temperature
Displayed
Mode of
Operation
LC7-2 Display
H
Set back
≤ R
temp
≤ C
Set back
U
setpoint
Off
R
temp
< H
Set back
H
Set back
Heating
R
temp
> C
Set back
C
Set back
Cooling
NOTE
• Indoor fan speed will operate to last setting.
• The button backlight is always off under the set back mode when operation mode is heat or cool.
13.03.04. De-Activating the Temperature Set back
1. Press the PROG button to enter program Menu.
