ActronAir LC7-2W User Manual

8
Operation Manual
LC7-2 Wall Control

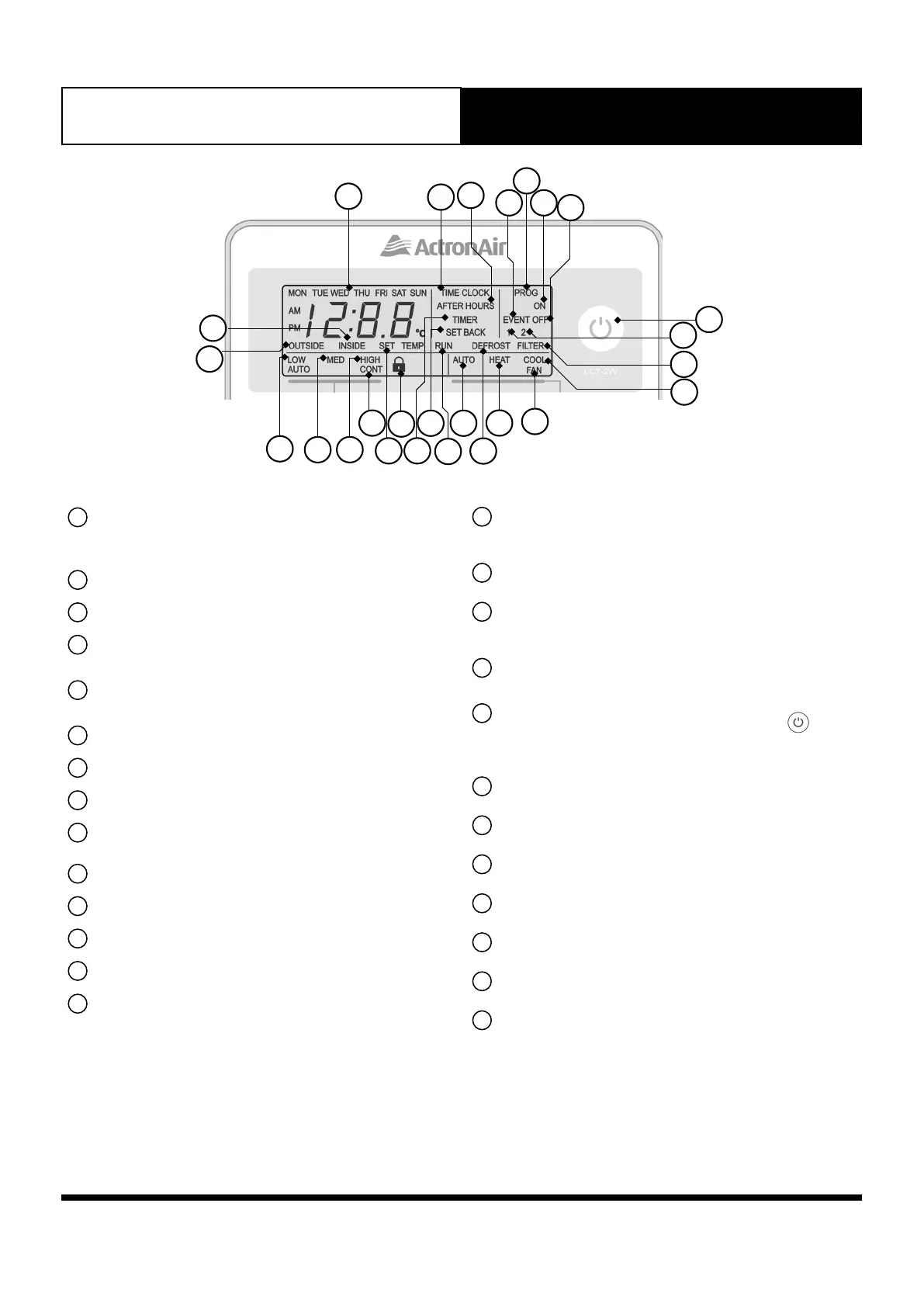

Operation Manual - LC7-2 Wall Control
Document: 0525-080 Ver. 1 190923
24
25
26
27
28
29
30
31
35
36
32
33
34
45
47
46
49
3840
44
37
39
41
43
42
24
Day Indicator
Display the day of the week when the time is shown and which day
is selected for programming.
25
Time Clock Indicator
26
After Hours Indicator
27
Event Indicator
Indicates which event of the time clock is being set.
28
Prog Indicator
Indicates when control is currently in Program Menu.
29
On Indicator
30
Off Indicator
31
Power On/Off Button Backlight
32
1 & 2 Indicator
Illuminates together with Event to show the programming event.
33
Filter Indicator
34
Fan-Only Indicator
35
Cooling Mode Indicator
36
Heating Mode Indicator
37
Defrost Indicator
48
38
Auto Mode Indicator
Indicates the system will automatically select heating or cooling
operation.
39
Run Indicator
Indicates the outdoor unit is in operation, flashes when on delay.
40
Set back Indicator
Indicates that the system is operating to achieve Set back
temperature.
41
Timer Indicator
Indicates timer is in operation.
42
Lock Symbol
Shows during backlight adjustments and while using button.
In addition, when the following is enabled: Mode Lock, Fan Speed
Lock, Set Point Lock and Keypad Lock.
43
Set Indicator
Illuminates during time and time clock setting adjustments.
44
Continuous Indicator
Illuminates when the fan is set to continuous mode of operation.
45
High Fan Speed Indicator
Illuminates when the fan is set to high speed operation.
46
Medium Fan Speed Indicator
Illuminates when the fan is set to medium speed operation.
47
Low Fan Speed Indicator
Illuminates when the fan is set to low speed operation.
48
Outside Indicator
Illuminates when the outside temperature is being displayed.
49
Inside Indicator
Illuminates when the inside temperature is being displayed.
