7451A/7461A/7461P Digital Multimeter Operation Manual
5. MENU OPERATION AND FUNCTION DESCRIPTION
5-1
5. MENU OPERATION AND FUNCTION DESCRIPTION
5.1 Menu
The functions and conditions in this instrument are set by using layered menus.
5.1.1 How to Navigate the Menus
Menus have a three-layer structure. (Some menus have a four-layer structure.)
First layer Category layer Selects the menu category.
Second layer Selection layer Selects the setting parameters in the category.
Third layer Entry/Execution layer Used to enter the values or select the setting.

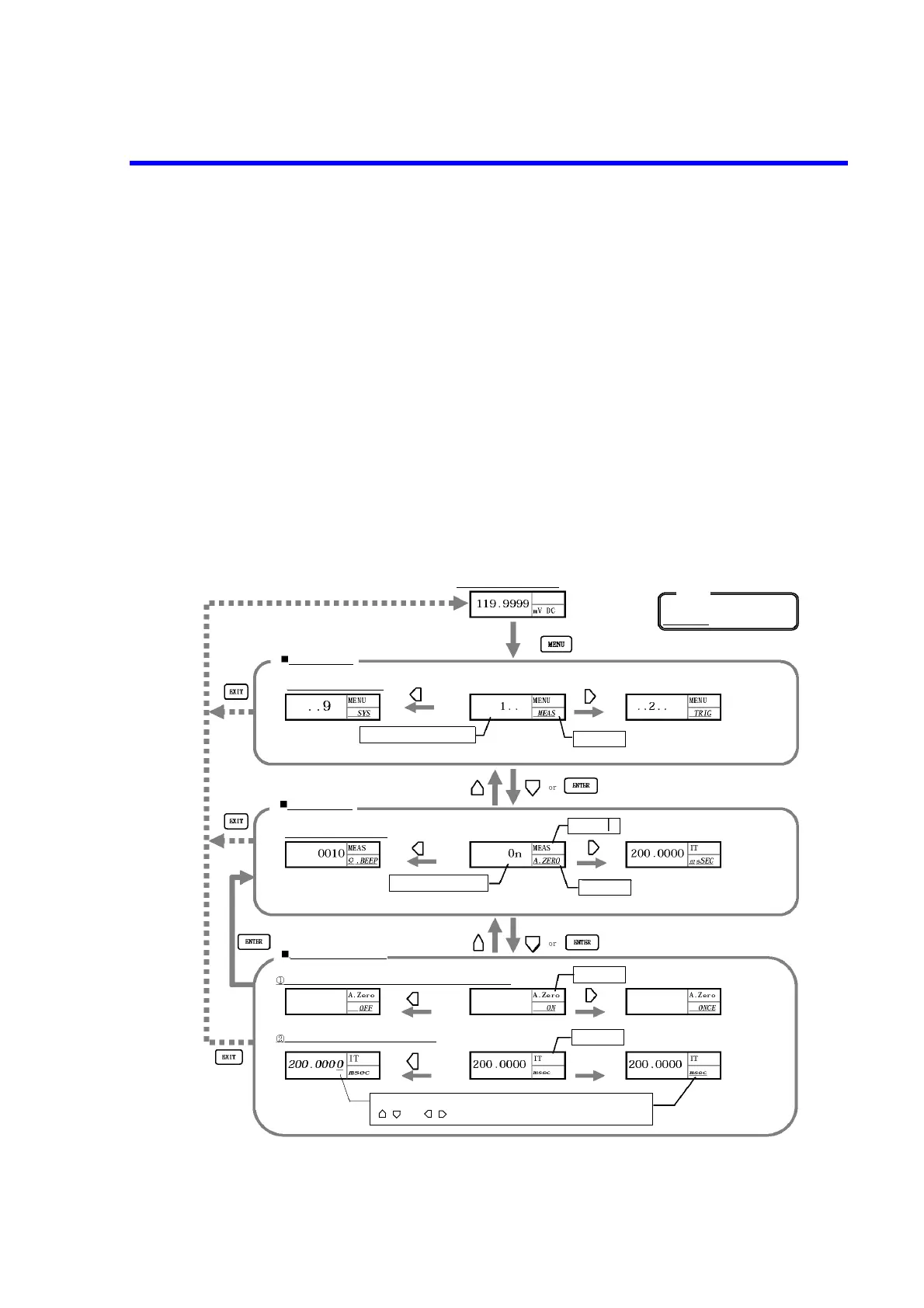

Figure 5-1 Menu Operation
Measured value display
Category layer
Note
Italic: Entry item
Under line
: Cursor blinks
Selecting the category
Present category number
Category
Category
Parameter
Parameter
Parameter
Present setting values
Selection layer
Selecting the parameter
Entry/Execution layer
Determine the entered value and move to the upper layer.
When selecting a setting and executing the selection
When entering the numerical value
Cancel the settings and
return to the measured
value display.
Select and change the digit, decimal point, and unit by using
and .
