7451A/7461A/7461P Digital Multimeter Operation Manual
5.8.2 Trigger Source Selection
5-22

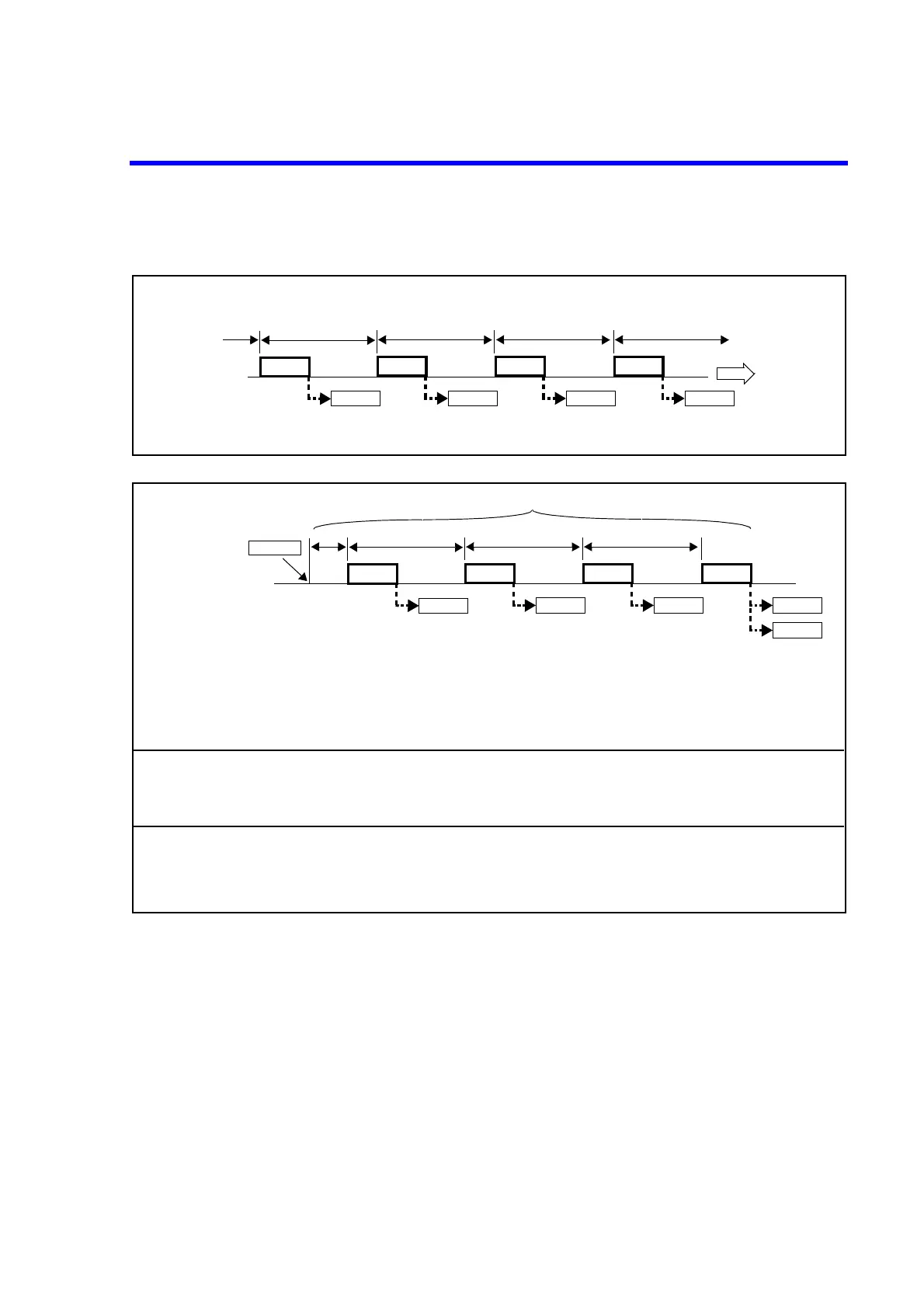

[Measurement timing according to the trigger source]
A: HOLD: OFF
B: HOLD: ON
1. TRIGger:Source:IMMediate
Measurement
SI
Complete
Measurement
SI
Complete
Measurement
SI
Complete
Measurement
SI
Complete
SI=TRIGger:TIMer<n>
TRIGger:DELay is invalid.
2. TRIGger:Source:MANual
3. TRIGger:Source:BUS
The same as TRIGger:Source:MANual However, the measurement starts when *TRG command is
received.
4. TRIGger:Source:EXTernal
The same as TRIGger:Source:MANual However, the measurement starts when the external trigger
signal is input.
Complete signal output: Multi
Complete signal output: Single
Measurement
SI
Complete
Measurement
SI
Complete
Measurement
SI
Complete
Measurement
Complete
Complete
Td
Key TRIG
Td=TRIGger:DELay <n>
Cs=SAMPle:COUNt <n>
When TRIGger:COMPlete:SINGle The Complete signal is output when the measurements of the set number of
sampling (Cs) are complete.
When TRIGger:COMPlete:MULTi The Complete signal is output each time when the measurement is complete.
Example of Cs = 4
