(3) Pressure transmitter calibration
Operation steps as following:
① Connect the pressure transmitter and
on the pressure test pump.
② Pressing to select the current
measure item, and press to
start 24V output. If user needs to control
the output time,please find the related
option in the menu.

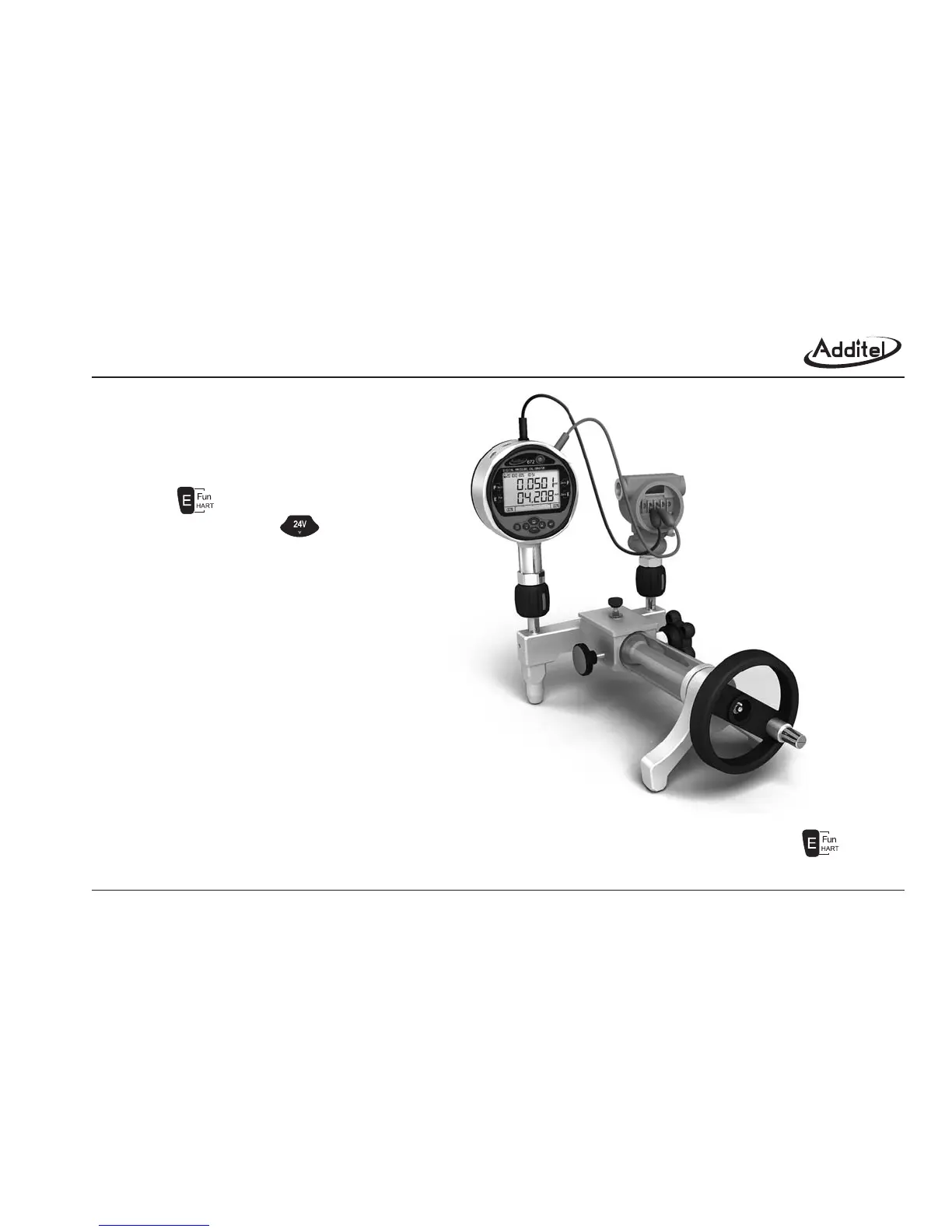

③ As right figure, connect the pressure
transmitter and .
◎24V connect the transmitter +, red color.
◎mA connect the transmitter.
④ Following all verification regulations,
take as a reference gauge to
calibrate (verify) the pressure transmitter.
ADT672
ADT672
ADT672
Remark: If user wants to calibrate the HART type pressure transmitter, please enter into the HART status by pressing .
Please refer the [HART communication function introduction] for further information.
