ADRF ADXV-HPR - Figure 3-6 Host;Remote Switch; Power Connection (for AC 110 V); Power Connection (for DC -48 V)

Advanced RF Technologies, Inc.
24

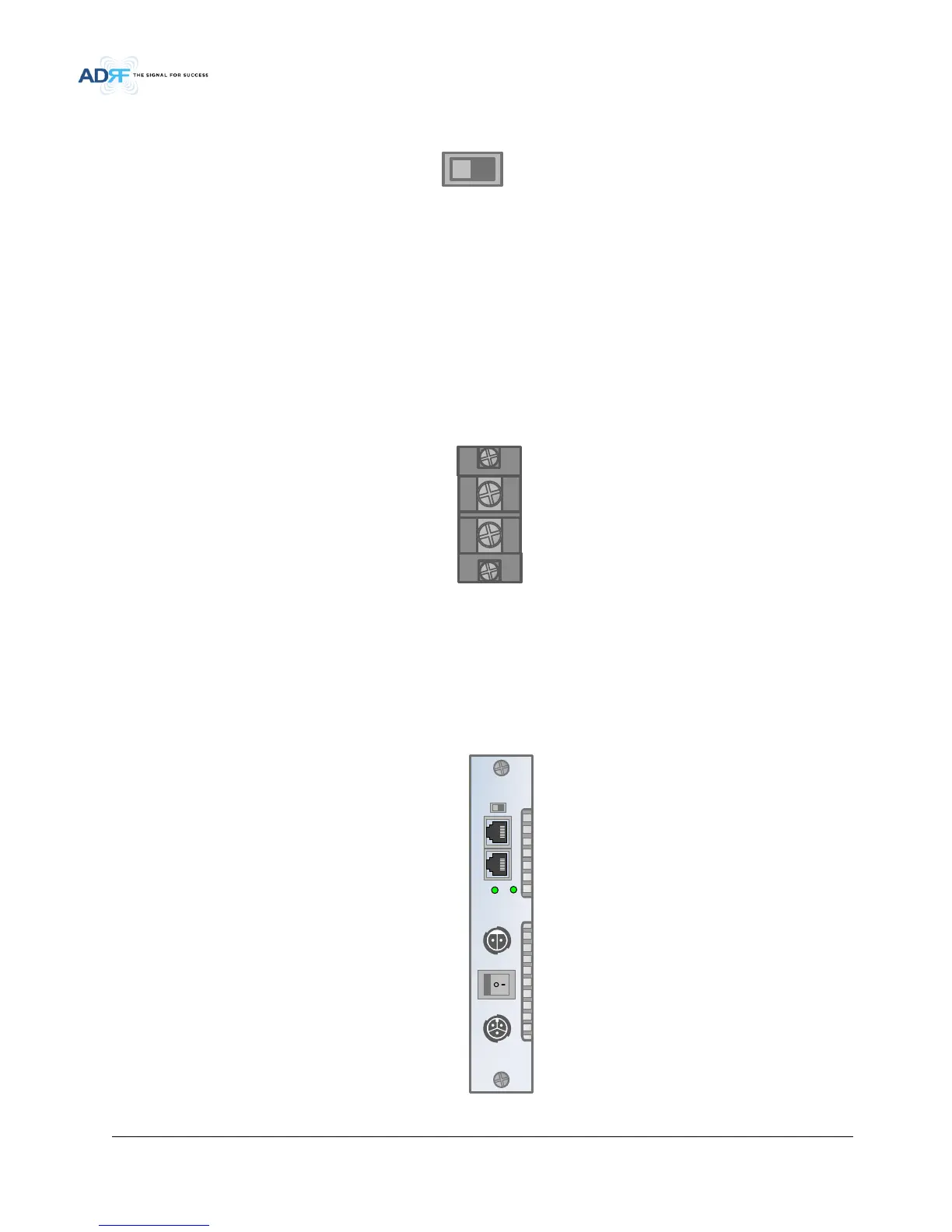

Figure 3-6 Host/Remote Switch
• Host IP: 192.168.63.1 (Fixed IP, unable to modify this IP address)
• Remote IP: 192.168.63.5 (Default IP, but can be modified in Host mode)
3.1.1.5 Power Connection (for DC -48V)
NMS has terminal block for DC power connection on the front panel.
You should verify power polarity of each power line and should turn on the power after power connection
necessarily.
3.1.1.6 Power Connection (for AC 110V)
NMS has Chogori connectors for AC power feeding and battery backup on the front panel.
You should verify power polarity of each power line and should turn on the power after power connection
necessarily.
HOST
LAN0
REMOTE
RTN
-48
V
DC IN
SERVICE
HOST
ADXV-H-NMS-AC
LAN1
LAN0
LAN0
AC IN 110V
REMOTE
LINK
OFF - AC - ON
BATTERY
