Advanced RF Technologies, Inc.
32

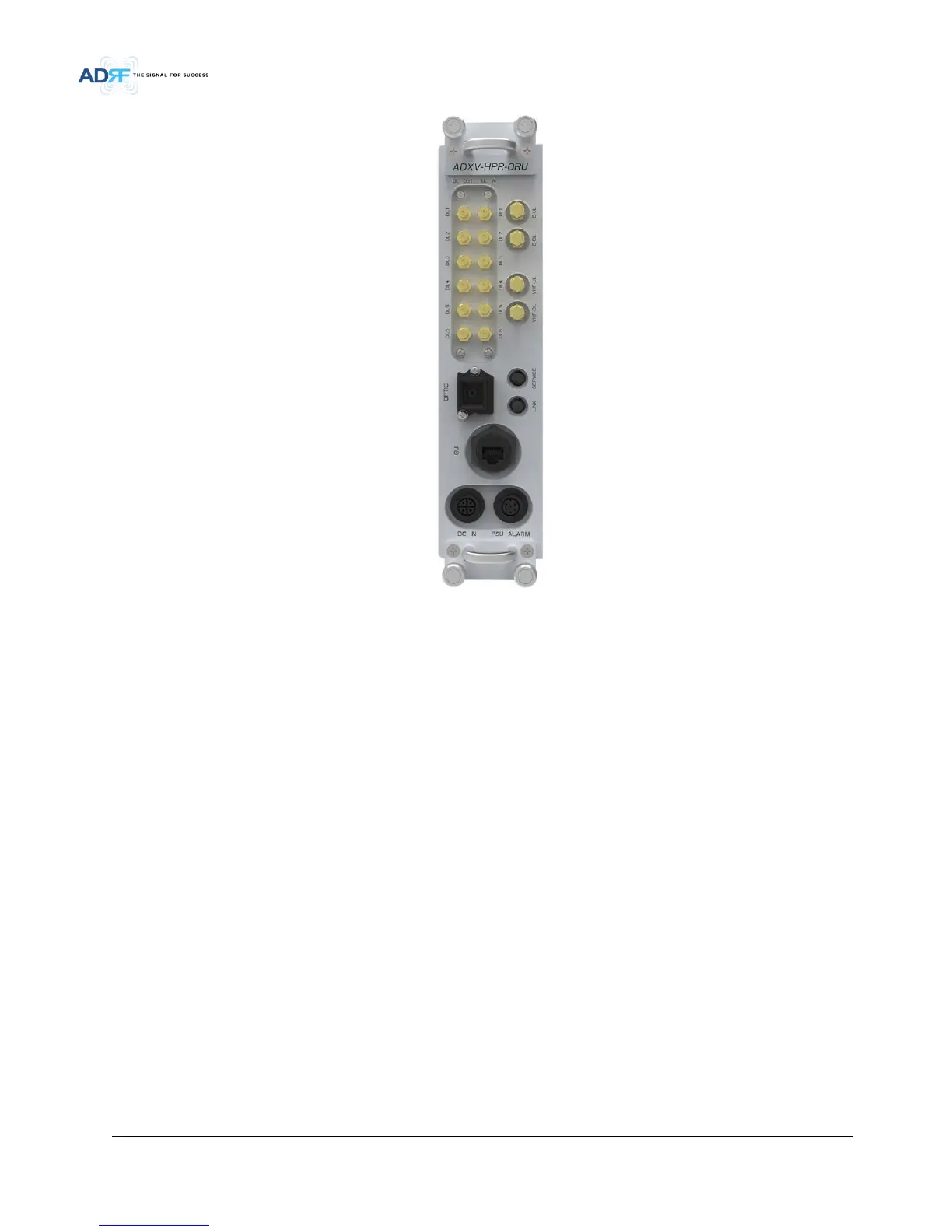

Figure 3-17 ADXV-HPR-ORU Front View
• Spec
- Size: 2.36 x 13.8 x 10.3 inches
- Weight: 11.02lbs
3.2.2.1 Front port
DL1-DL6: DL port connect to ‘DL IN’ of ADXV-HPR (Remote Module) (see 3.2.1.1)
UL1-UL6: UL port connect to ‘UL OUT’ of ADXV-HPR (Remote Module)(see 3.2.1.1)
E-DL/E-UL ports connect to external splitter for extension of band RM
VHF-DL/VHF-UL ports connect to the ADXV VHF/UHF RM
OPTIC port connects with optic line with waterproof optical connector (provided by ADRF)
3.2.2.2 Rear port
DC IN port connects to PSU’s ADXV-HPR-ORU port.
PSU ALARM port connects to PSU’s ALARM port.
GUI port for connection to Lap top.
FAN port for connection to FAN unit.
3.2.2.3 LED
