6.2.3 RF coaxial cable and antenna connection
> The coaxial cables which are connected to antenna port of ADXV-HPR. Before connection, check the
VSWR value of coaxial cable whether it is within specification using Site master.
> At this time, check if the Return loss have above 15dB or VSWR have below 1.5
> The part of antenna connection fasten to port not to be loosed and not to be injected the dusty and
insects
> The antenna connected to ADXV-HPR is only serviced in in-building
6.3 Grounding
A ground cable is included in the box. The grounding terminals are located at the rear of the ADXV HE and ADXV-
HPR. The grounding cable should be properly connected before powering on the equipment.

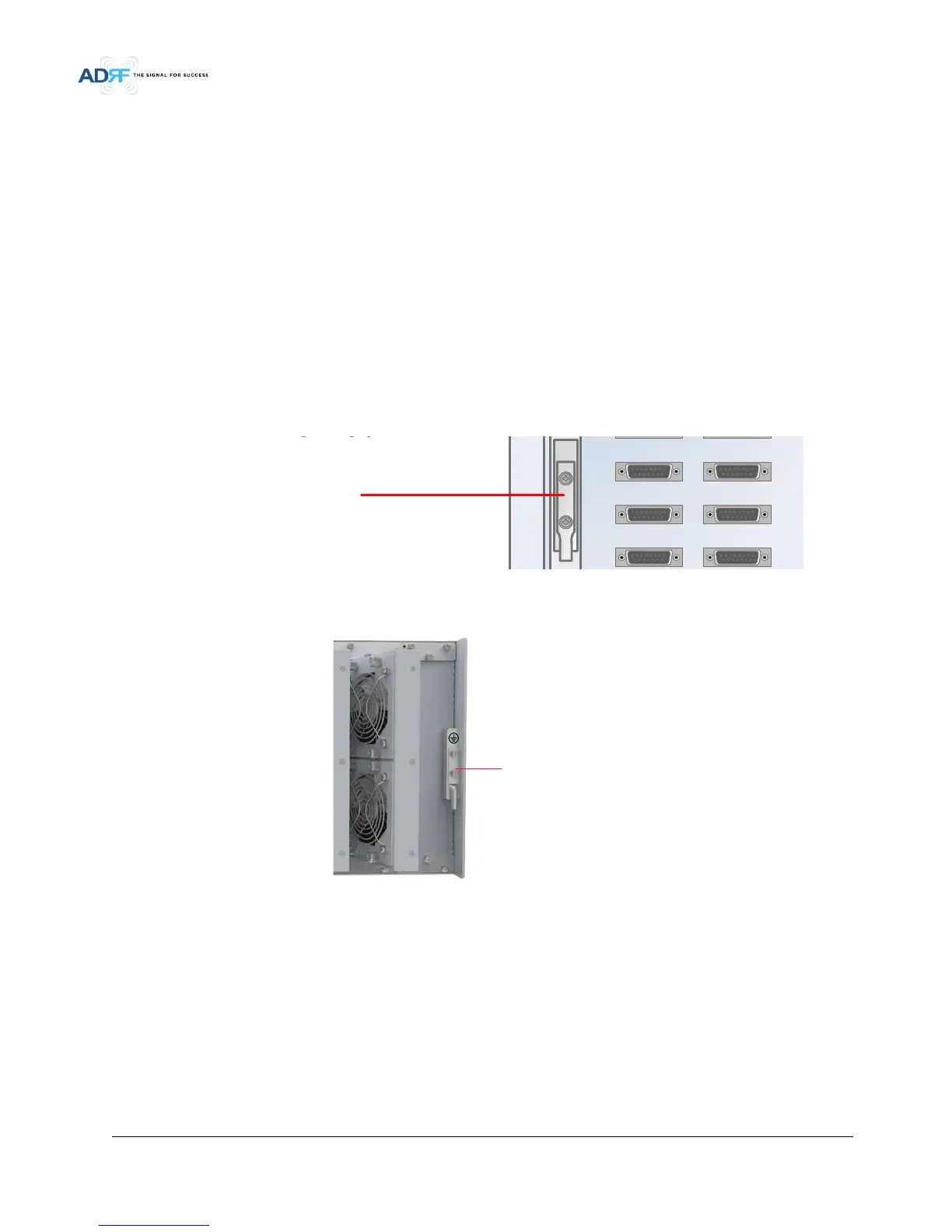

Figure 6-3 HE Ground Cable Connection, Protective Earthing Conductor (HE chassis rear side)
Figure 6-4 ADXV-HPR Ground Cable Connection, Protective Earthing Conductor (ADXV-HPR chassis rear
side)
Round terminals located on the side of a 1.25mm²(16AWG)or more wires Using permanently connected to
earth(Protective earthing conductor).
U
AUX 3
AUX 5
AUX 7
U
AUX 3
AUX 5
AUX 7
U ot
Fan Unit
Ground Terminal
