3.1.2 POI (ADXV-H-POI-x)

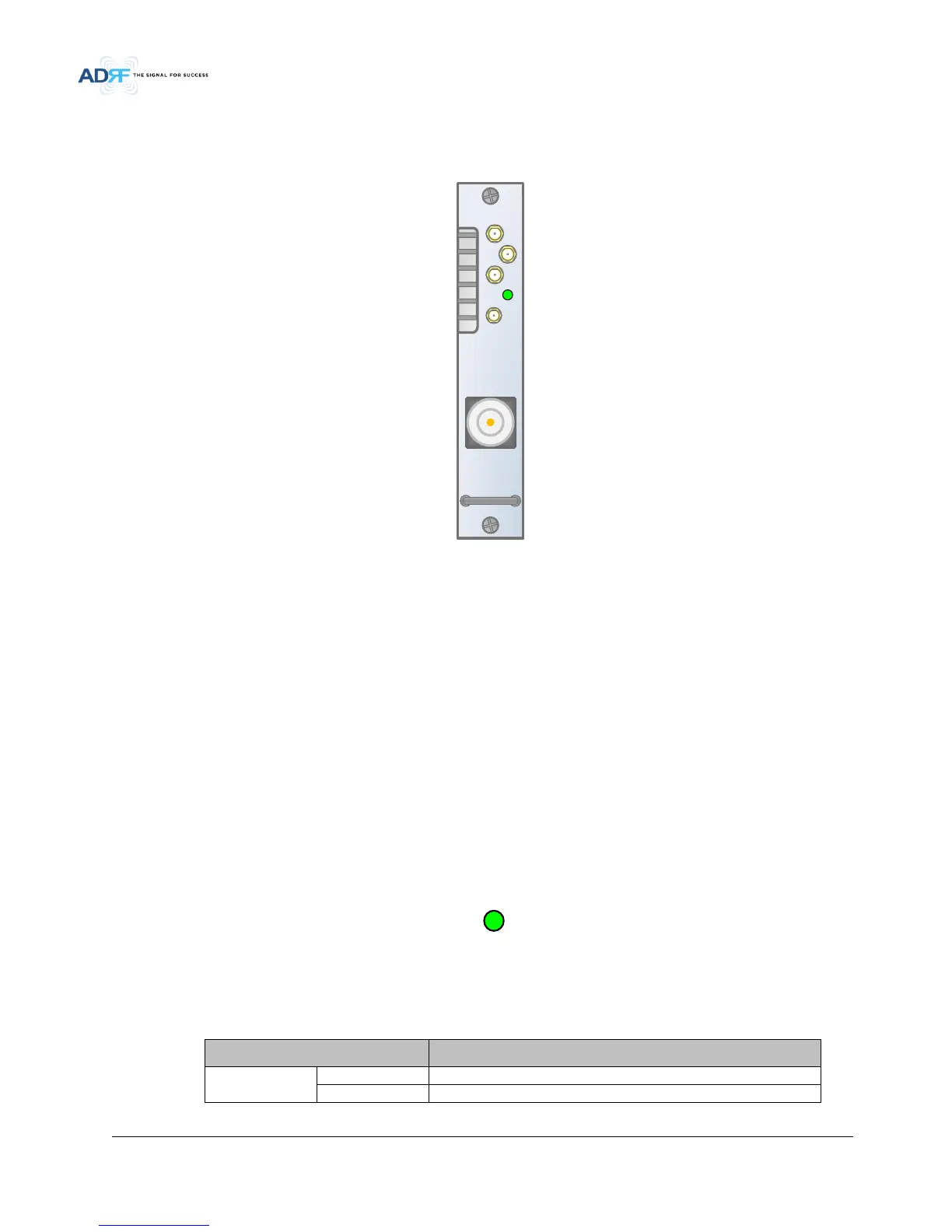

Figure 3-7 POI front View
• Functions and features
- Provide RF interface with BTS
- Each POI has independent gain control and filtering
- Modular type and hot swappable
- Supports duplex port and simplex RX port
- Easily support additional frequency bands by adding a single POI
- Reduces complexity and overall equipment size
• Specifications
- Size: 1.3 x 17.1 x 6.85inches
- Weight: 6.2lbs
3.1.2.1 LED
POI has LEDs on the front panel as shown in Figure 3-8.
Figure 3-8 POI LED
Table 3-3 POI LED Specifications
POI Specifications
Power
Solid Green
POI power is ON and POI is normal status
Solid Red
POI power is ON and POI is hard fail alarm status
UL IN
DL OUT
SERVICE
E911
DL/UL
ADXV-H-POI-X
ADXV-H-POI-X
UL
DL/UL
BTS
BTS
POWER
