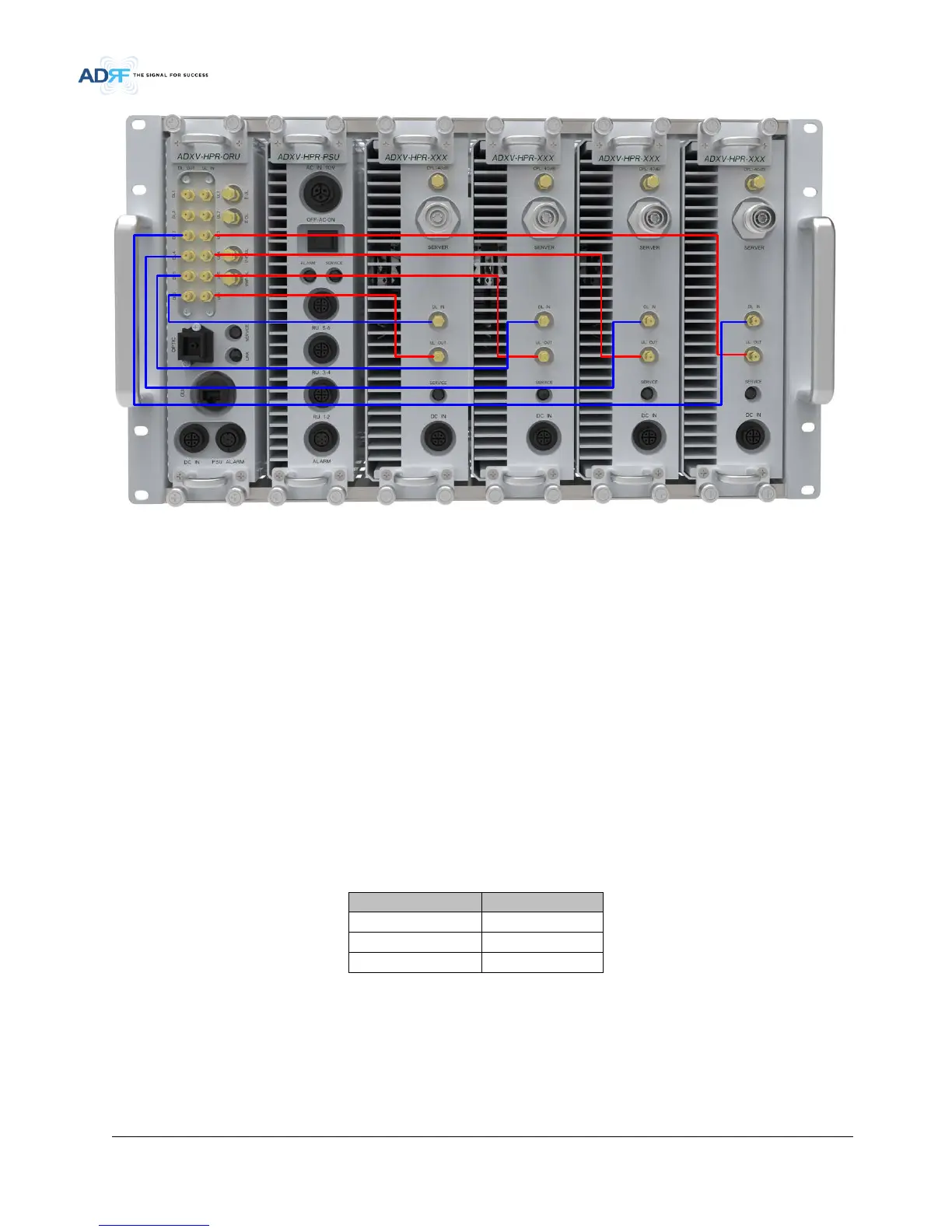

Figure 3-16 ADXV-HPR ID numbering and RF connection between ADXV-HPR-ORU and ADXV-HPR
3.2.1.2 RF port
DL IN/UL OUT connect to ADXV-HPR-ORU’s DL port and UL port, it is necessary to connect UL’s port number
equal to DL’s because of serial communication with ADXV-HPR-ORU.
CPL (-40dB): DL output 40dB coupling
SERVER: DL output, UL input, Server Duplexer port
3.2.1.3 Power port
DC IN: Port for power supply (+27VDC) and communication with Controller inside PSU.
3.2.1.4 LED
LED color
Status
Green
Normal
Yellow
Soft fail
Red
Hard fail
3.2.2 Optical Remote Unit (ADXV-HPR-ORU)
