3.2.1 Remote Module (ADXV-HPR-4XX)

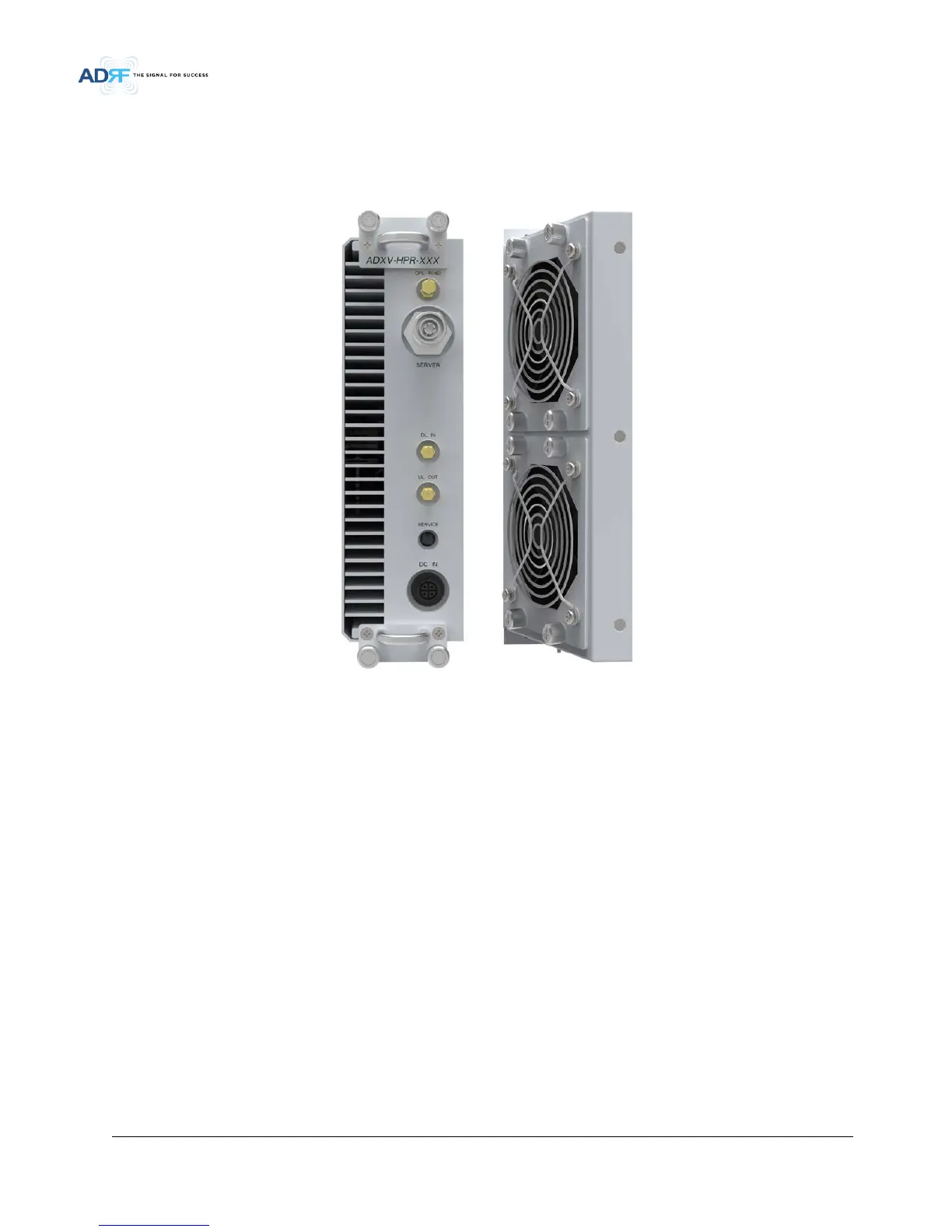

Figure 3-15 ADXV-HPR-4XX (RM) Front and Rear View
• Spec
- Size: 2.75 x 17.8 x 10.3 inches
- Weight: 13.22lbs for 437F, 43S8C, 46P, 46A, 45W, 46BT
3.2.1.1 HPR ID numbering and RF line connection scheme
HPR ID right next to ADXV-HPR-ORU is HPR #1, HPR second next is HPR #2, the rest of HPR s’ ID numbering is in
the same order.
With RF connection between ADXV-HPR-ORU and HPR, it is necessary ADXV-HPR ID number should be equal to
DL/UL port number of ADXV-HPR-ORU because of ADXV-HPR ID management and normal serial communication.
