Advanced RF Technologies, Inc.
27
3.1.3.1 RF ports
3.1.3.1.1 RF ports at the front panel (DL 1 to DL 8, UL 1 to UL 8)
DL 1(to DL 8) & UL 1(to UL 8) RF ports are connected to DL OUT/UL IN Ports at the front panel of POI.
• Receive the downlink signal from each POI
• Split the uplink signal received from ODU to each POI
3.1.3.1.2 RF ports at the back panel (DL 1 to DL 8, UL 1 to UL 8)
DL 1(to DL 8) & UL 1(to UL 8) RF ports are connected to DL IN/UL OUT Ports at the back panel of ODU.
• Transfer the combined downlink signals to ODU
• Receive the uplink signal from ODU
3.1.4 Optical Donor Unit (ODU, ADXV-H-ODU-4)

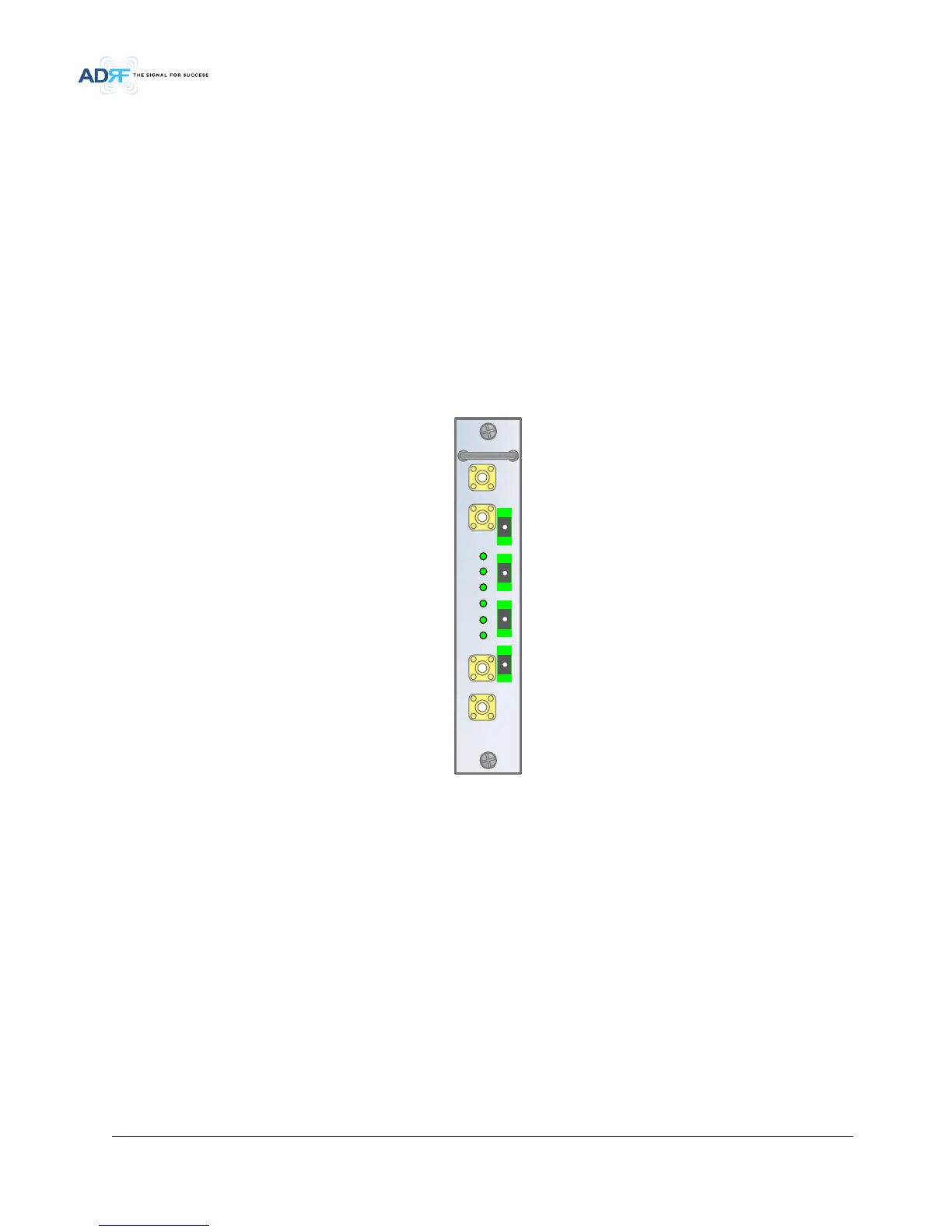

Figure 3-10 ADXV-H-ODU-4 Front view
• Functions & Features
- Converts signal from RF to optic and transports signals up to a maximum of 10Km (optical 5dBo
loss including optical connection loss).
- One ADXV-H-ODU-4 supports up to 4 ADXV-HPRs
- Minimizes the number of optic fiber cable need by transporting multi band signals over a single
strand of fiber using WDM technology.
• Spec
- Size: 1.3 x 17.1 x 6.85inches
- Weight: 5.3lbs
3.1.4.1 LEDs
The ADXV-H-ODU-4 has the following LEDs on the front panel as shown in Figure 3-11.
VHF UL
ADXV-H-ODU-4
ADXV-H-ODU
-4
UL OUT
DL IN VHF UL
PWRLD
PD4
PD3PD
2PD1
VHF DL
OPTIC1
OPTIC2 OPTIC3
OPTIC4
