3.2.3.2 LED
LED
LED color
Status
ALARM
Green
Normal
Yellow
Link fail
SERVICE
Green
Normal
Yellow
Soft fail
Red
Hard fail
3.2.3.3 AC Switch
The ADXV-HPR is operated at 110 AC.
(WARNING: The AC switch must be set to OFF before cable connection to avoid equipment damage and
personal injury.)
(WARNING: To avoid damage, be sure 110V AC for operation of ADXV-HPR.)
(CAUTION: DOUBLE POLE/NEUTRAL FUSING.)
The procedure for connecting ADXV-HPR
 AC S/W OFF
 AC cable connection
 Optic connection
 RF cable connection

AC S/W ON
4. CABLE CONNECTION
4.1 Head End Connection Diagrams

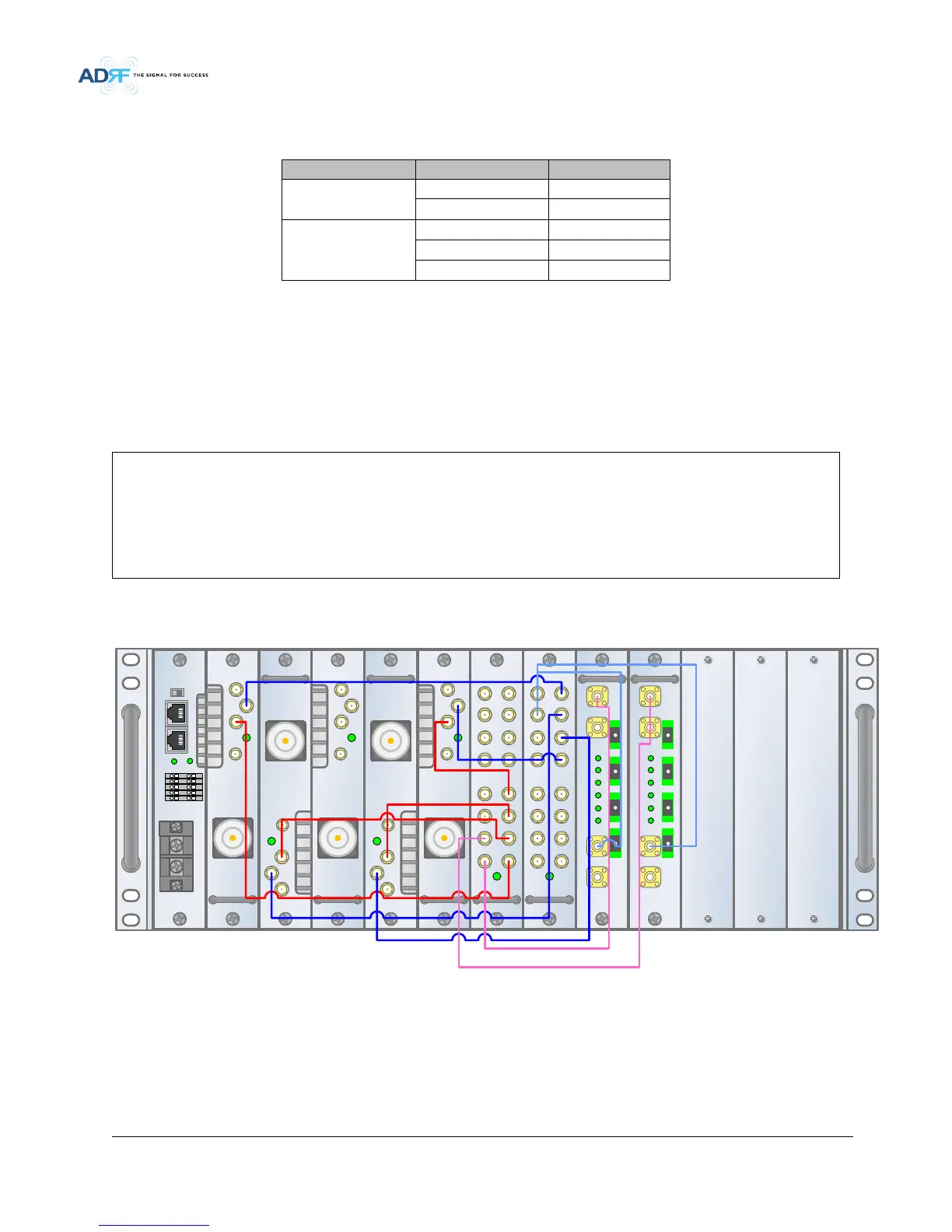

Figure 4-1 HE Cable connection (4 ADXV-H-POIs, 2 ADXV-H-ODUs)
AAI
SERVICE
HOST
ADXV-H-NMS-DC
LAN1
LAN0
LAN0
RTN
-48V
DC IN
REMOTE
01
02
03
04
05
P(+)
LINK
N(
-)
UL IN
DL OUT
SERVICE
E
911
DL/UL
ADXV-H-POI-X
ADXV
-H-POI-X
UL
DL/UL
BTS
BTS
UL IN
DL OUT
SERVICE
E911
DL/UL
ADXV-H-
POI-X
ADXV-H-POI-
X
UL
DL/UL
BTS
BTS
UL IN
DL OUT
SERVICE
E911
DL/UL
ADXV
-H-
POI-X
ADXV-H-POI-X
UL
DL/UL
BTS
BTS
UL IN
DL OUT
SERVICE
E911
DL/UL
ADXV-H-POI-X
ADXV-H-POI-X
UL
DL/UL
BTS
BTS
UL IN
DL OUT
SERVICE
E911
DL/UL
ADXV-
H-POI-X
ADXV
-H-
POI-X
UL
DL/UL
BTS
BTS
DL IN
1
SERVICE
ADXV-H-CHC-88-DL
DL IN7
DL IN6 DL IN5 DL IN4 DL IN3 DL IN2 DL IN1DL IN8
DL OUT7DL OUT6DL OUT5DL OUT4DL OUT3DL OUT2DL OUT
1 DL OUT8
ADXV
-H-CHC-88-DL
DL IN 1
SERVICE
ADXV-H-CHC-88-UL
DL IN7 DL IN6 DL IN5 DL IN4 DL IN3 DL IN2 DL IN1
DL IN8
DL OUT7DL OUT6DL OUT5DL OUT4
DL OUT3DL OUT
2DL OUT1 DL OUT8
ADXV-
H-CHC-88-
UL
VHF UL
ADXV-H-ODU-4
ADXV
-H-
ODU-4
UL OUT
DL IN VHF UL
PWRLD
PD4PD3PD2PD1
VHF DL
OPTIC1 OPTIC2 OPTIC3 OPTIC
4
VHF UL
ADXV-H-ODU-4
ADXV
-H-
ODU-4
UL OUT
DL IN VHF UL
PWRLD
PD4PD3PD2PD1
VHF DL
OPTIC1 OPTIC2 OPTIC3 OPTIC
4
