7.2.2 Status Tab
7.2.2.1 Status – NMS
The NMS Status page provides an overall view of how the system is performing. From the NMS Status page, the
user can see what modules are connected to ADXV-HPR. In addition, the user can see if any alarms are present in
the system and also the commissioning status of each module.
7.2.2.1.1 System Summary
The Summary section provides the user with the number of components physically connected, the number of
soft/hard/link fails present in the system, and also the number of commissioned and non-commissioned componnets.
Table 7-5 System Summary Description
Parameters Description
Connected Display the number of modules physically connected to ADXV-HPR
Soft Fail Display the number of soft fail present on each module
Hard Fail Display the number of hard fail present on each module
Link Fail Display the number of link fail present on each module
Not Commissioned Display the number of non-commissioned or commission failed module
Commissioned Display the number of successfully commissioned module
7.2.2.1.2 HE Alarm Status
Display the alarm status of each HE component.
7.2.2.1.3 HE Commissioning Status
Display commissioning status of each HE component.
7.2.2.1.4 Alarm
Displays alarm status of the NMS. If an alarm is present in the system, the color of the system alarm tab will
change according to the type of failure.
7.2.2.1.5 SNMP

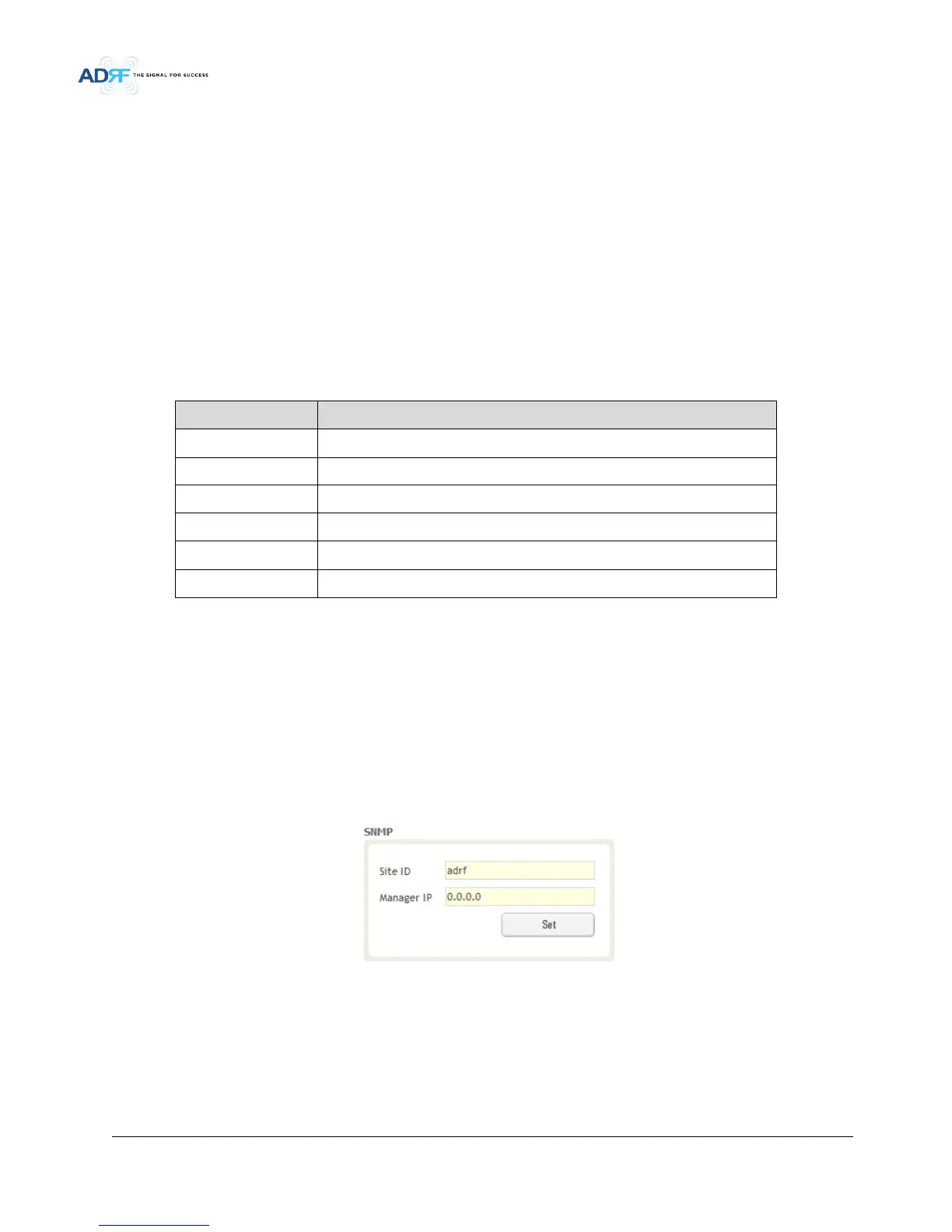

Figure 7-3 SNMP (Install – NMS)
The SNMP section allows you to specify the Site ID and Manager IP. The Site-ID is the code that is used to
identify a particular module. The Manager IP field is where the user inputs the IP address of the NOC system that is
being used to monitor the SNMP traps.
7.2.2.1.6 Location
