5.2 ADXV-HPR
5.2.1 Rack Mount

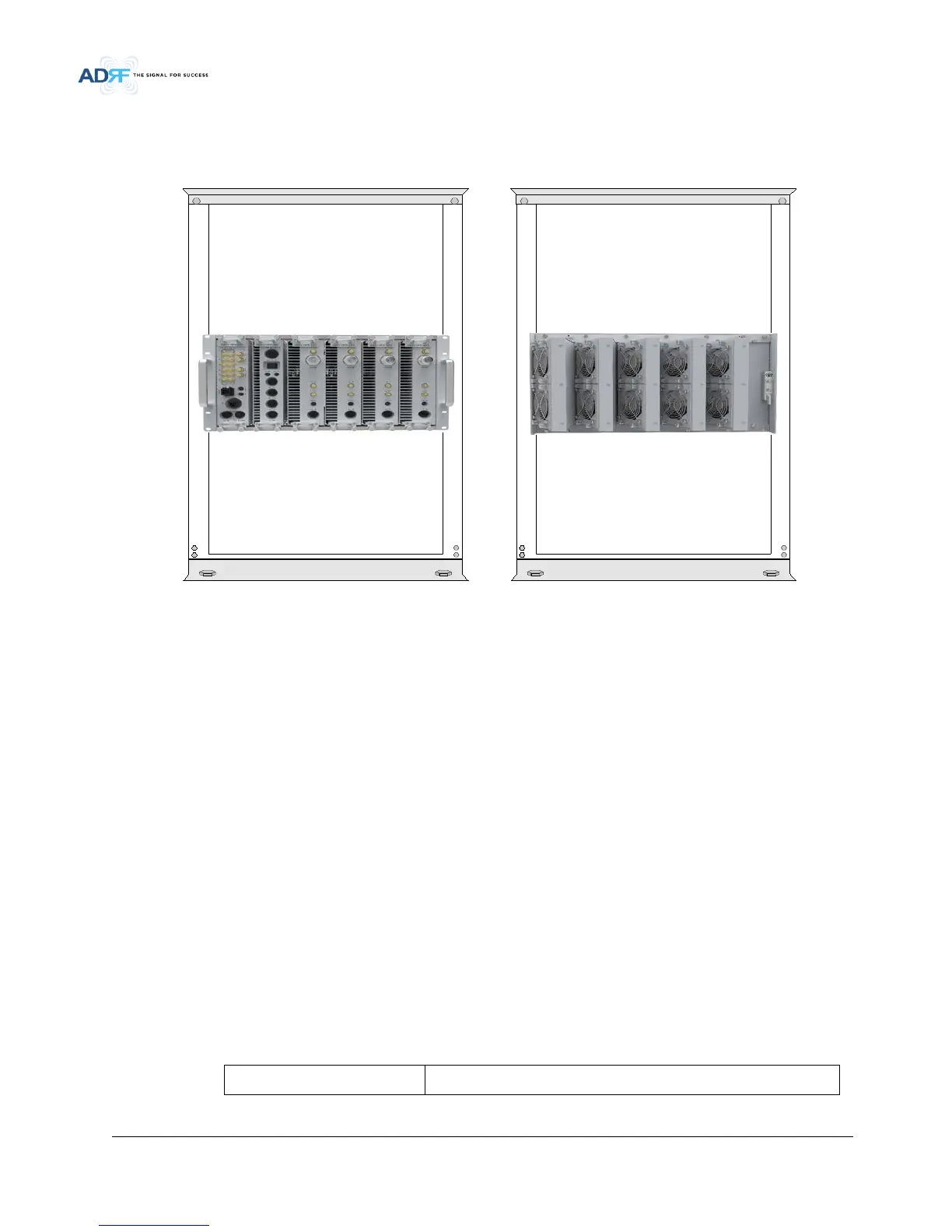

Figure 5-2 ADXV-HPR Rack Mount Front and Rear View
6. INSTALLATION
6.1 Pre-Installation Inspection
Please follow these procedures before installing ADXV equipment:
o Verify the number of packages received against the packing list.
o Check all packages for external damage; report any external damage to the shipping carrier. If
there is damage, a shipping agent should be present before you unpack and inspect the contents
because damage caused during transit is the responsibility of the shipping agent.
o Open and check each package against the packing list. If any items are missing, contact ADRF
customer service.
o If damage is discovered at the time of installation, contact the shipping agent.
o Verify the AC voltage with DVM (Volt meter) is 110V AC. Incorrect AC voltage can damage the ADXV
equipment.
o This power of this system shall be supplied through wiring installed in a normal building. If powered
directly from the mains distribution system, it shall be used additional protection, such as
overvoltage protection device.
o Over voltage category(OVC) & Pollution degree(PD)
Over voltage category (OVC) OVC II
