ADRF ADXV-HPR - Psu (Adxv-Hpr-Psu); Port; Figure 3-18 ADXV-R-PSU Front View

Advanced RF Technologies, Inc.
33
LED
LED color
Status
Link
Green
Link normal
Yellow
Link fail
Service
Green
Normal
Yellow
Soft fail
Red
Hard fail
3.2.3 PSU (ADXV-HPR-PSU)

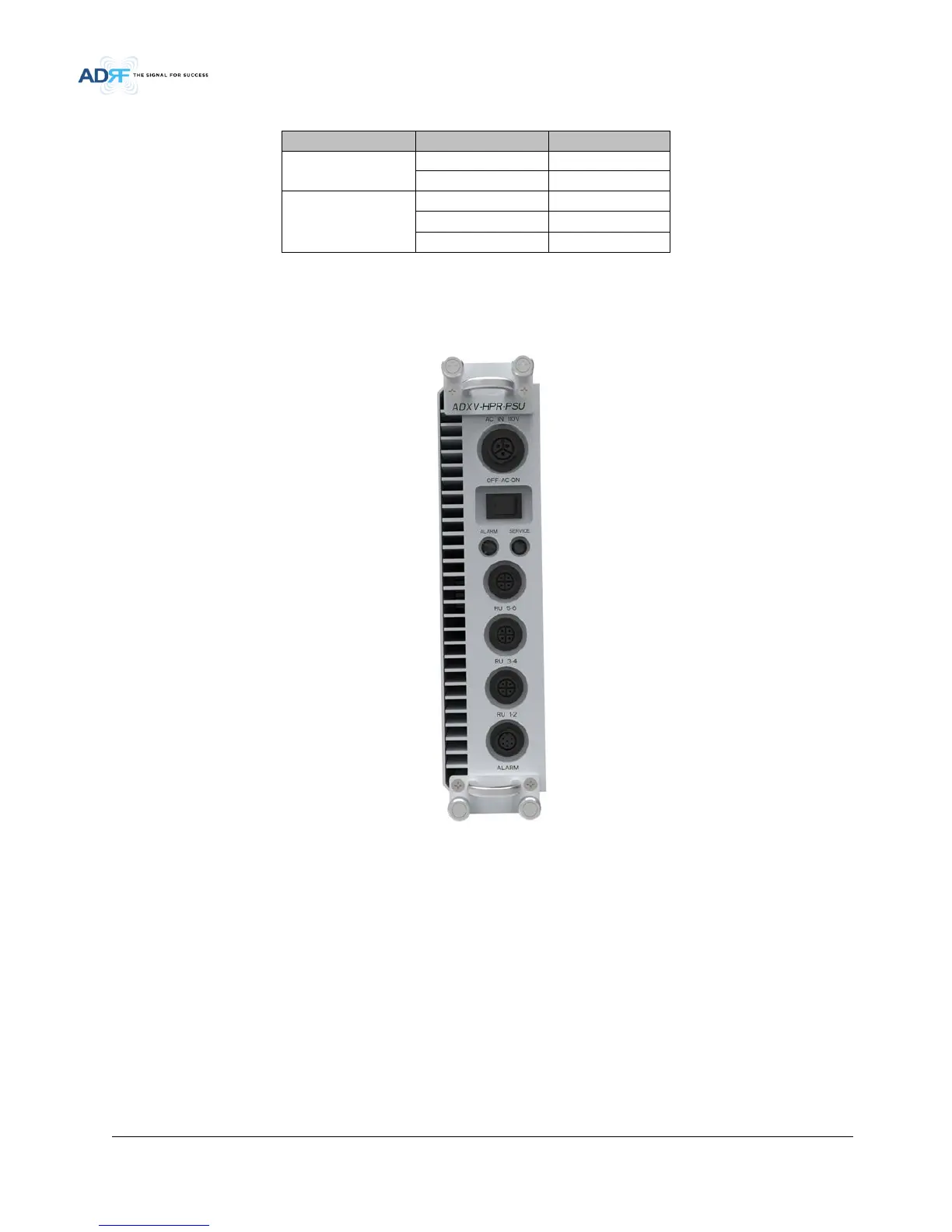

Figure 3-18 ADXV-HPR-PSU Front View
• Spec
- Size: 2.36 x 17.8 x 10.3inches
- Weight: 11.02lbs for AC/DC PSU
3.2.3.1 Port
ADXV-HPR1-ADXV-HPR4 ports connect respectively to ADXV-HPR’s front port.
ADXV-HPR-ORU port connects to ADXV-HPR.
ALARM port connects to ‘PSU ALARM’ port of ADXV-HPR-ORU ALARM port
AC IN 110V port connects to AC 110V
