Advanced RF Technologies, Inc.
26
Solid Yellow
POI power is ON and POI is soft fail alarm status
3.1.2.2 RF Ports
BTS DL/UL, DL OUT, UL IN, E911 Ports (refer to Figure 3-7) are located at the front of the POI
Table 3-4 POI RF port
RF Port
Function
BTS DL/UL
BTS Interface, DL duplexer Input, UL duplexer output
DL OUT
DL output
UL IN
UL input
UL OUT
UL output not passing through duplexer
E911
E911 RF interface
3.1.3 Channel Combiner (CHC, ADXV-H-CHC)

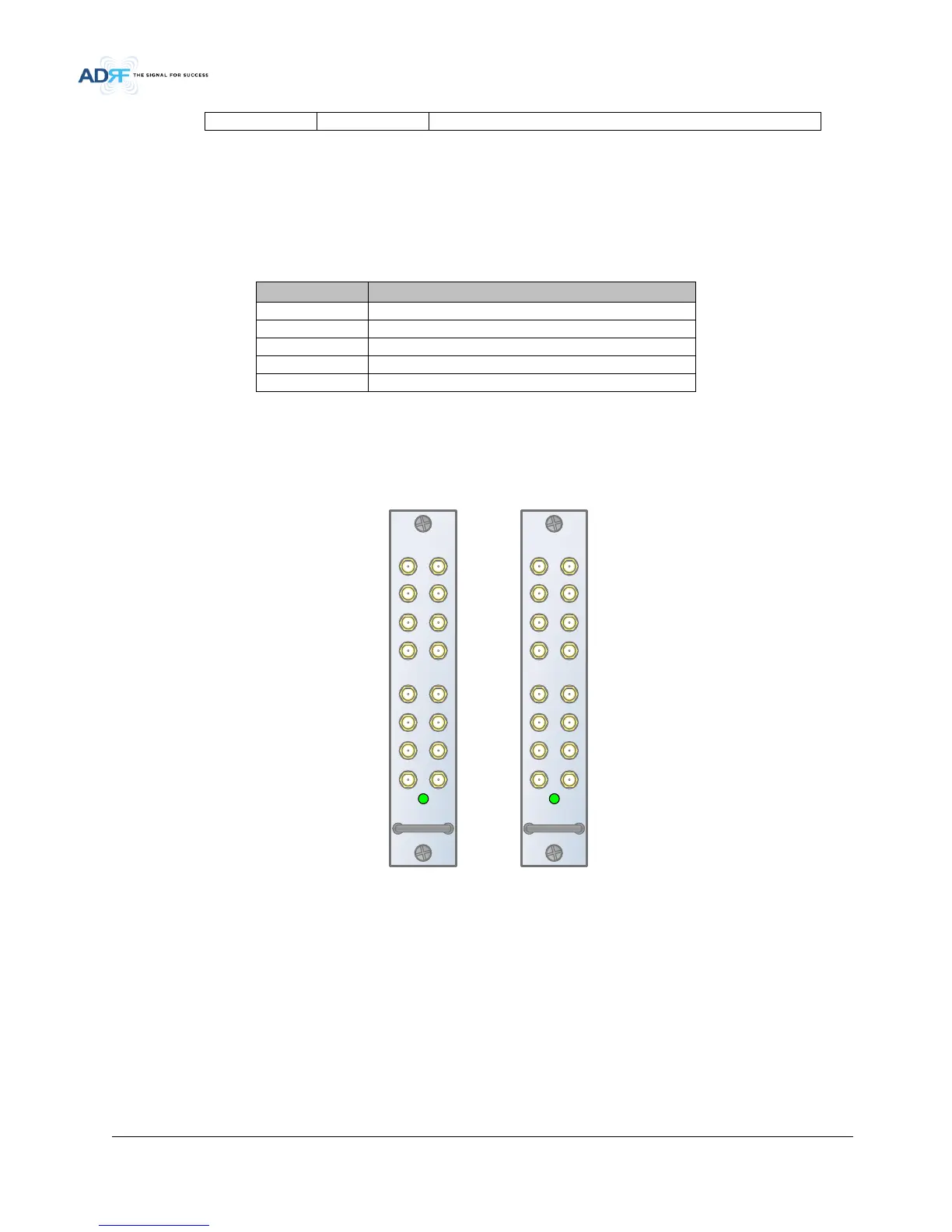

Figure 3-9 ADXV-H-CHC Front View
• Functions & Features
- Combines DL signals received from each POI and feeds the combined signals to the ADXV-H-ODU
- Combines UL signals received from each ADXV-HPR and feeds the combined signal to the ADXV-H-
POI
- No limit of installation number and location to install POI, ODU, CHC card in 12 slots except NMS
card
• Specifications
- Size: 1.3 x 17.1 x 6.85inches
- Weight: 4.4lbs per CHC
DL IN 1
SERVICE
ADXV-H-CHC-88-DL
DL IN7 DL IN6 DL IN5 DL IN4 DL IN3 DL IN2 DL IN1DL IN8
DL OUT7DL OUT6DL OUT5DL OUT4DL OUT3DL OUT2DL OUT1 DL OUT8
ADXV-H-CHC-88-DL
DL IN 1
SERVICE
ADXV-H-CHC-88-UL
DL IN7 DL IN6 DL IN5 DL IN4 DL IN3 DL IN2 DL IN1DL IN8
DL OUT7DL OUT6DL OUT5DL OUT4DL OUT3DL OUT2DL OUT1 DL OUT8
ADXV-H-CHC-88-UL
