User Manual of TV5600-B01 Series Dispensing Control System

120

15

APU+

A pulse signal+

16

APU-

A pulse signal-

17

ADR+

Adirection signal +

18

ADR-

Adirection signal-

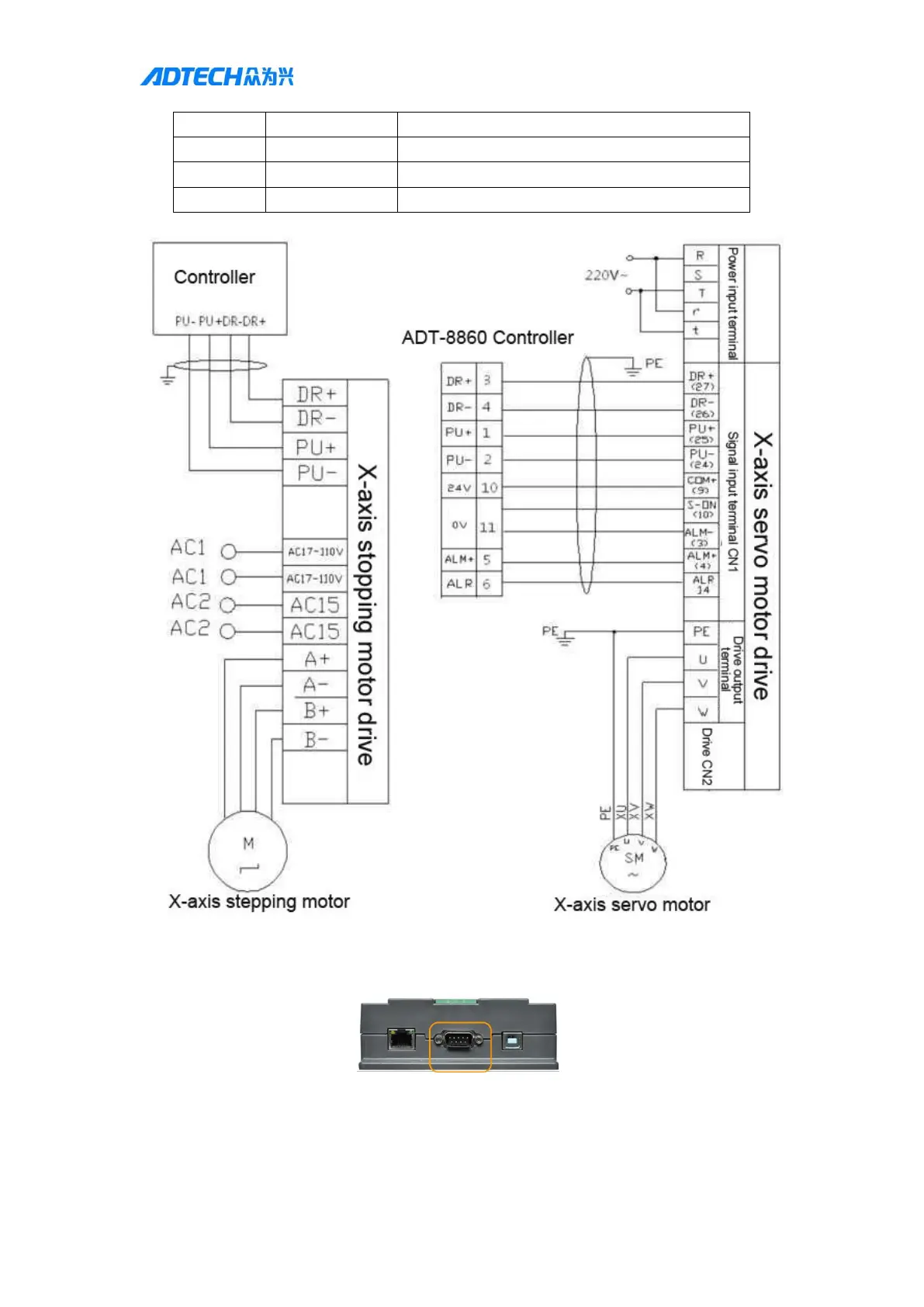

6. Stepper and servo general wiring diagram

7.Serial port pin wiring instructions

7.01 Serial port 0 wiring definition

ADT-8849 \8830 COM0 port
