User Manual of TV5600-B01 Series Dispensing Control System
57
19) Autonomous reset output port: Used to control Autonomous reset
20) Z-phase signal input port: The input port of the motor Z-phase signal. After
the above reset process, the motor searches for Z-phase signal to achieve
higher reset accuracy
21) Z-phase signal effective level: The level at which the Z-phase signal is
triggered

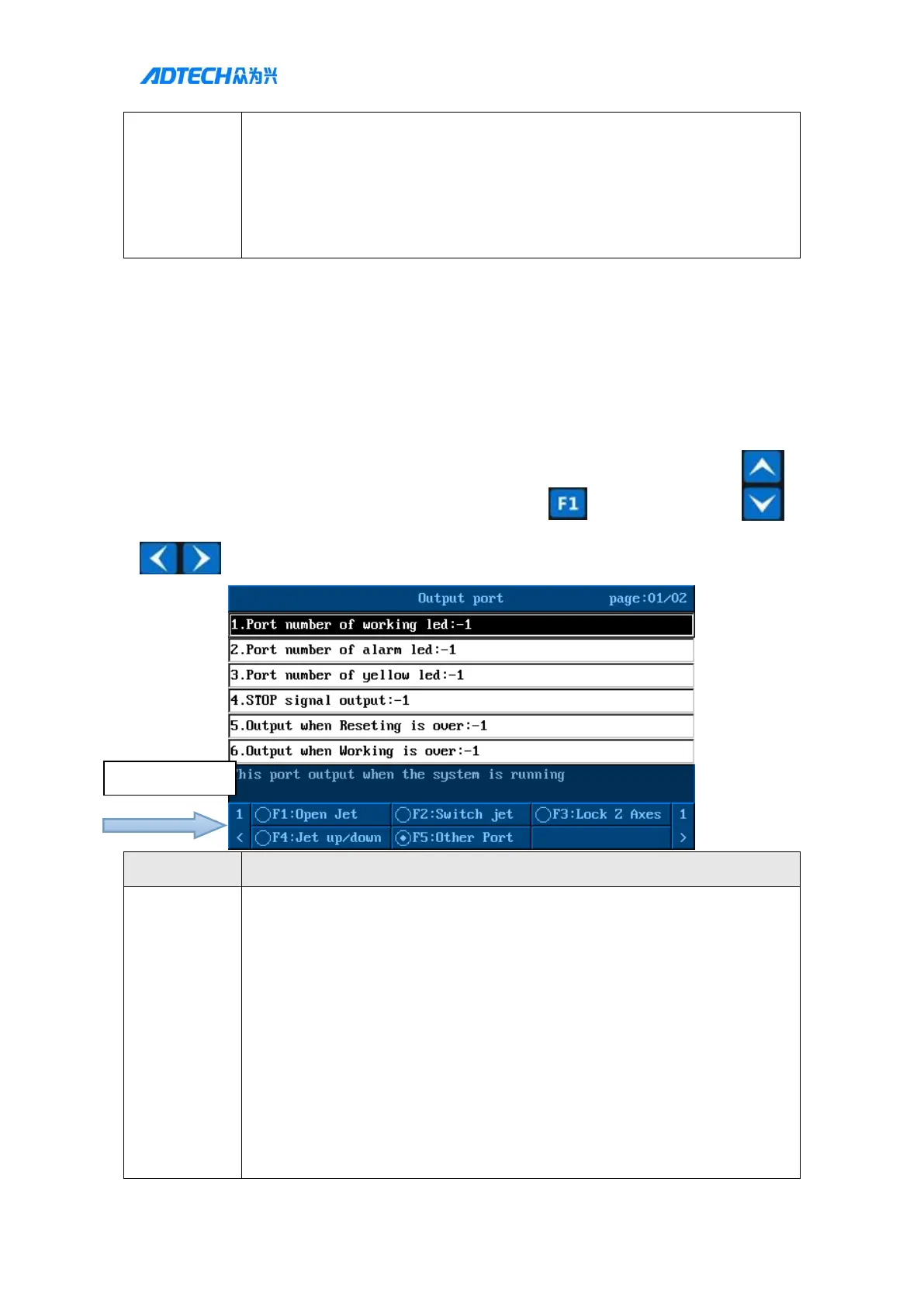

8.02.02 Output port configuration
The output port configuration includes configuration of the glue gun port, gun change switch,
lock Z-axis, cylinder gun forward/backward, and other operational indication output ports. The
simplified interface only has configurations of glue gun port, gun change switch and basic running
indicator port.
1. ->In handheld box system parameter interface -> Press [ Factory parameters] ->
Enter Output port configuration parameters ->
Parameter
Description
Output port
configuration
※Note: You can set the port number corresponding to the common output
function. Setting to -1 will disable this function.
1) Runningindicator port: This signal outputs low level when the program is
stopped or in dripping state, and outputs high level when running
2) Alarm indicator port: Indicates that the parameter setting is abnormal, etc.
3) Standby indicator port: Indicates that the system is in standby mode
4) Emergency stop output: When the emergency stop button is pressed, the
signal outputs at high level. When it is reset, it outputs at low level. This
signal can be used to lock the axis.
5) Outputafter resetting: The motor outputs at high level after completing a
reset, and the signal outputs at low level after pressing the emergency stop
6) Outputafter processing: The program outputs at high level after completing
F1-F5 selection
