User Manual of TV5600-B01 Series Dispensing Control System
41

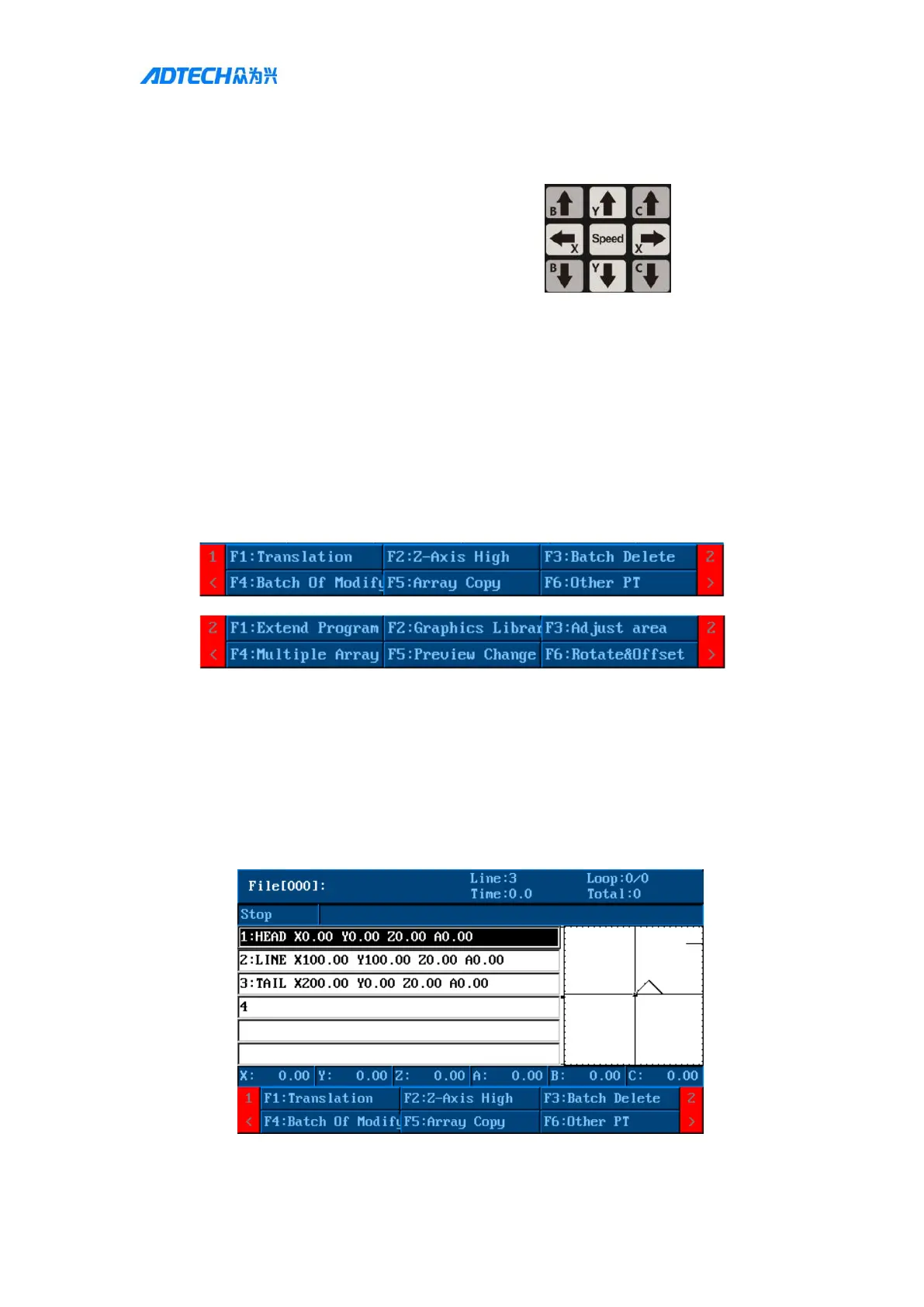

6.03 Correction of motor manual direction
1.Main interface of the handheld box: Press the manual key of the hand-held
box motor. If the motion direction of the motor does not match the direction of the button on
the hand-           
parameter of the axis. Refer to the above illustration for the parameter setting method.
※Note: In pulse + direction 
-
6.04 Advanced editing features
The advanced file editing function of the handheld box has the following items:
The advanced feature in the touch sc
6.04.01 Graphics translation
This function adjusts the XY coordinate position of the graphic uniformly according to the current
cursor position. First determine the point of the graph, and then move the XY coordinates to the
desired coordinate position. After calling this function, the entire graph is automatically
translated to the current position.
1.Move XY to the desired position first
2. Move the cursor to the point you want to moveand press F1 to translate (point 2 is the
translation point)
