6.04.05 Array copy
The array copy function is mainly used to copy a single graphic into multiple copies in an array, or
to generate an array of parallelograms.

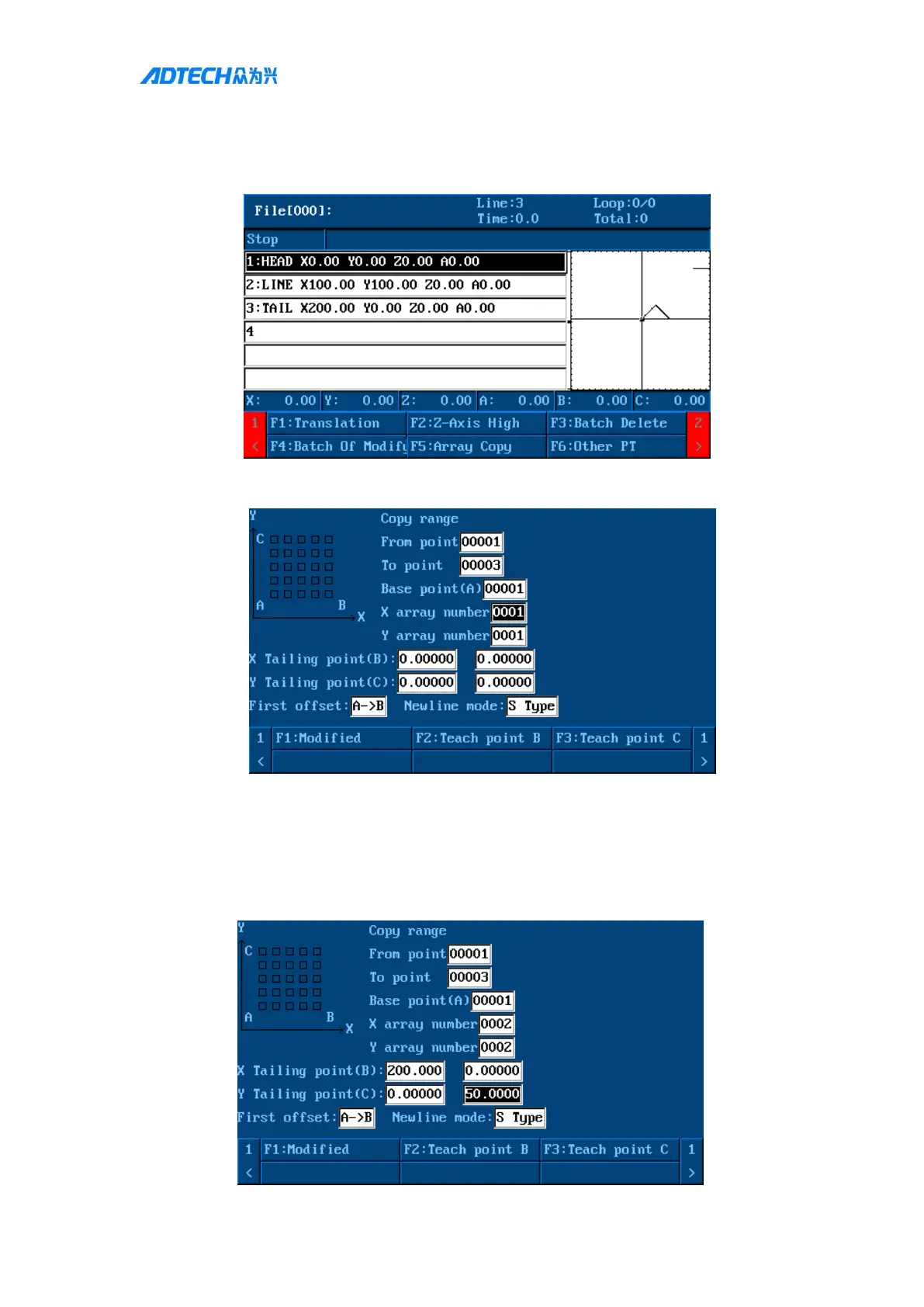

Enter the array copy interface:
Set X direction array to 2 to generate2 arrays from A to B
Set Y direction array to 2 togenerate 2 arrays fromA to C
2*2 arraysgenerated in total
X end point coordinate is set to 200,0,indicating that N points with the same interval are
generated as the points of each array between the reference point and the X end point, and N is
the size of the array in the X direction; the Y end point is the same;
