User Manual of TV5600-B01 Series Dispensing Control System

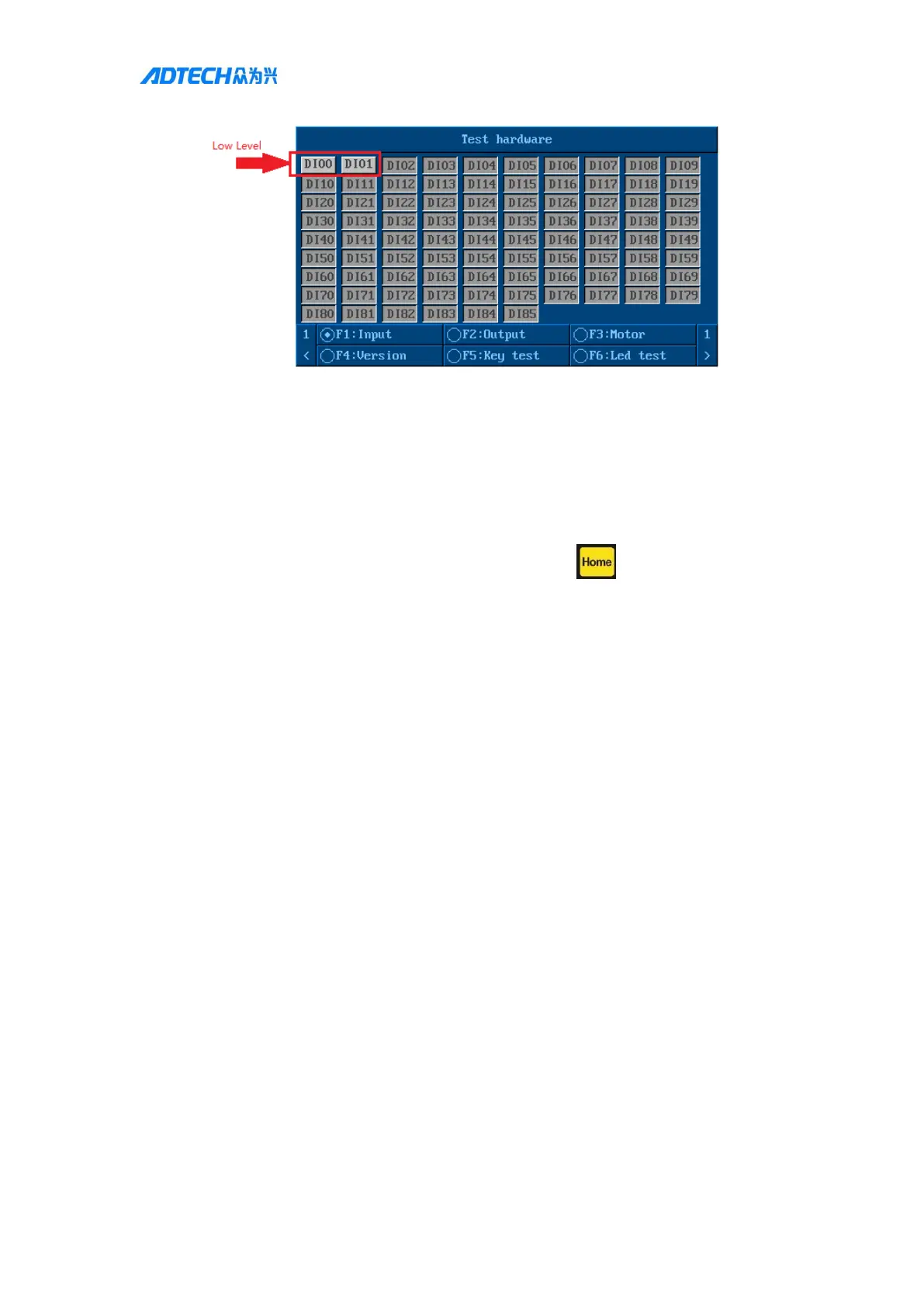

※Note: The effective level of the origin is the signal value from the input of the origin sensor
switch when the origin switch is blocked. The origin switch is in different states when it iscovered
and uncovered, or else the origin switch has been damaged.
5.05 Reset
1. -> Main interface of handheld box -> Press [Reset] button -> system reset -> the
following may occur:
2. -> Main interface of touch screen -> Press [Reset] button -> system reset -> the following may
occur:
Reset direction is
setting are correct
Reset overshoot: Please increase the reset low speed and reduce the reset high speed
reasonably, and increase the reset acceleration
Reset jitter: Please reduce the reset low speed reasonably; reduce the reset
acceleration, which is generally set at 800~15000
When resetting, the motor of one axis does not move, but the coordinates of the axis
change on the interface, please check the motor wiring.
