8.04Automatic needle aligning setting

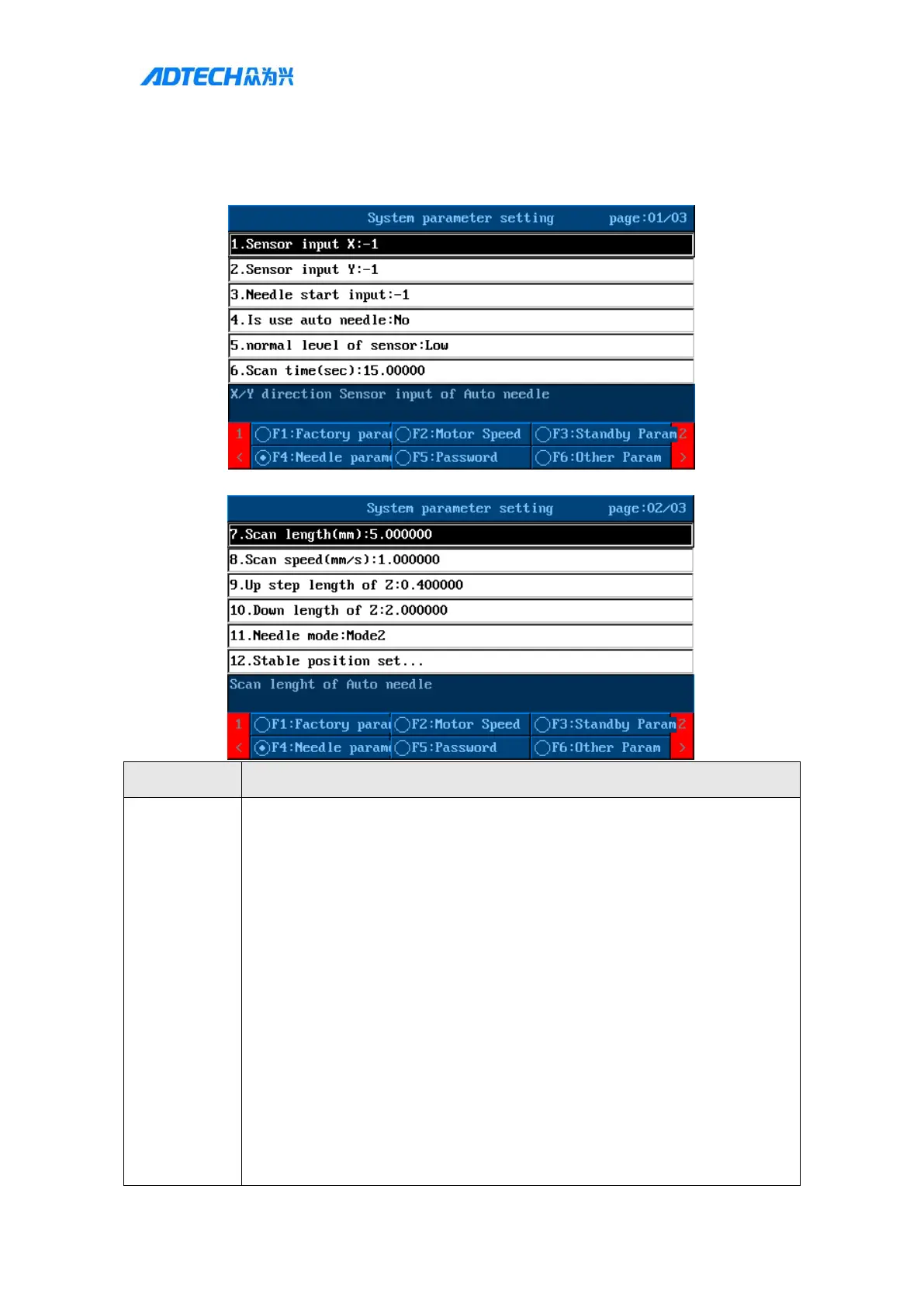

The needle aligning parameter is automatically set in the system parameters.
Parameter
Description
Automatic
needle aligning
parameter
1) X sensor port: Sensor access port for automatic needle aligning in X direction
2) Y sensor port: Sensor access port for automatic needle aligning inY direction
3) Auto needle aligning activationport: Press to start automatic needle aligning
4) Whether to use automatic needle aligning
5) Sensor normal level
6) Scanning timeout: Set the maximum time for the axis scanning when the
needle is automatically aligned. If the axis scanning is not completed at the time,
the needle aligning will fail, the automatic needle aligningends and the alarm will
display scanningtimeout
7) Scanningdistance: Set the range ofneedle scanning
8) Scanning speed: The speed of needle scanning. In order to ensure the scanning
accuracy, the speed should be set to be relatively small
9) Z-axis ascending step: The distance that the Z-axis ascends each time during
scanning
10) Z-axis descending step: The distance that the Z-axis descends each time
during scanning. This parameter should be slightly larger than the ascending step
