User Manual of TV5600-B01 Series Dispensing Control System

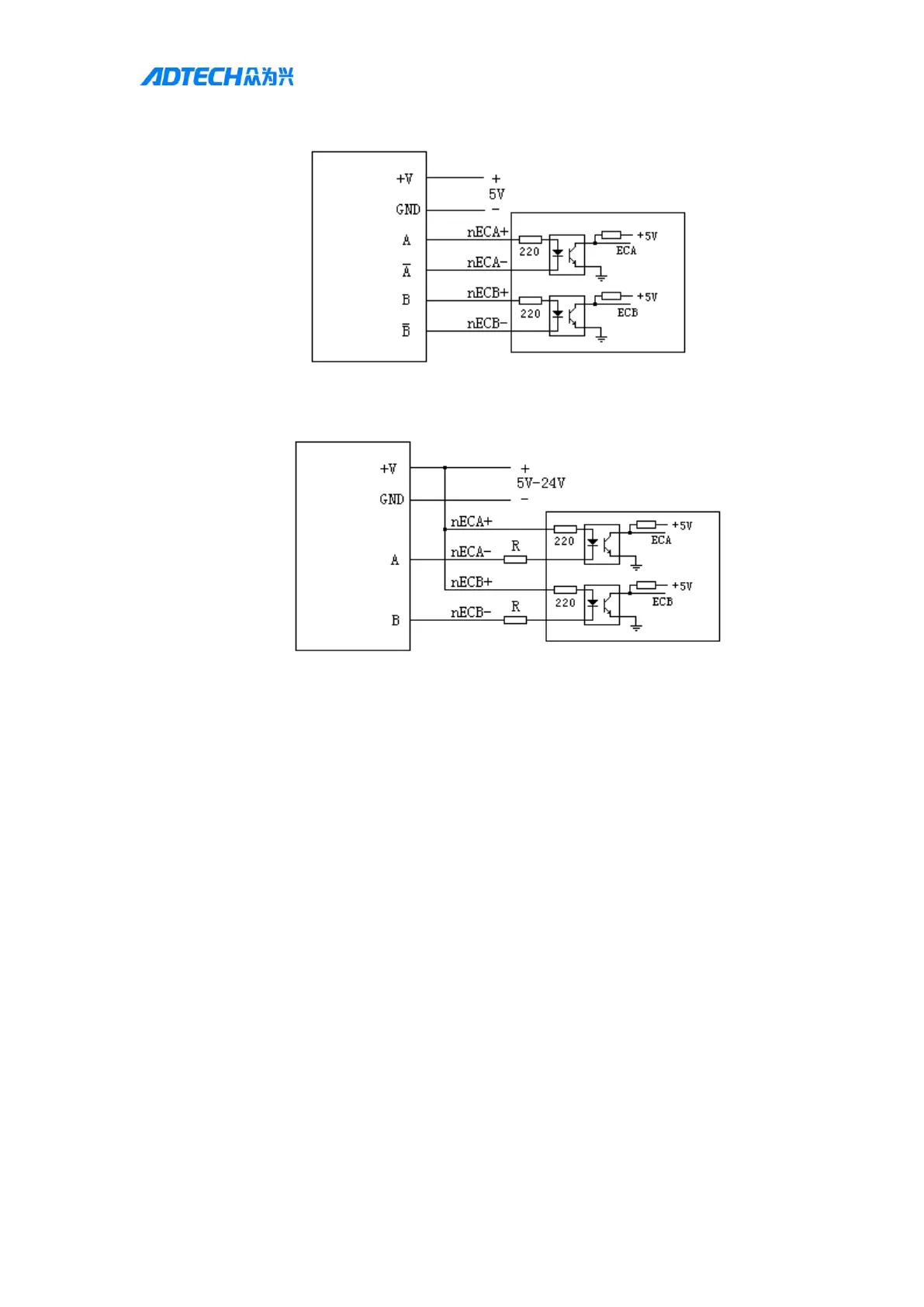

The differential connection is as follows:
The 5V power supply is provided externally.
The common anode connection method is as follows:
The power supply voltage is determined by the encoder. When using a 5V power supply, the
-2K resistor. When using a
24V power supply, R can be 2K-5K resistor.
※Note: Try to use the differential output encoder because the differential method is better in
anti-interference when the line is long.
7. Stepping and servo general wiring diagram
