8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland www.advancedsensors.co.uk
Page 76 of 93
OIW-HBO-0002-EX-005
OIW EX SERIES-SIDE STREAM
OPERATION MANUAL
Rev. 004 MAY 2015
5.3.1 – Monthly OIW Logs
Each monthly log folder contains the analyzer data for every second the unit is powered on and measuring. Within this
folder will be up to 3 subfolders as shown in Figure 86: Monthly OIW log sub folders; one each for data logs,
spectrometer logs (EX-1000 Models only) and ultrasonic logs.

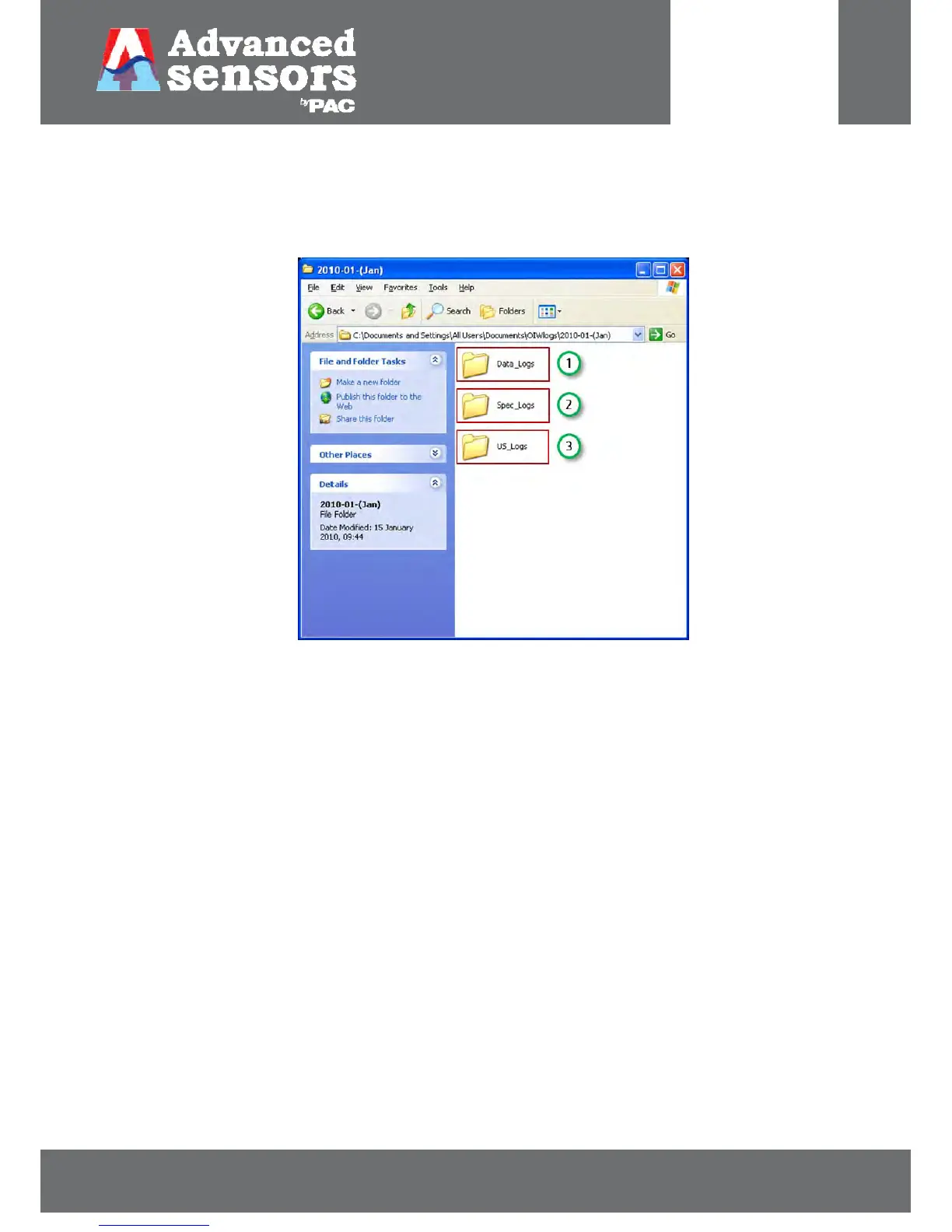

Figure 86: Monthly OIW log sub folders
1. Data Logs – contains logs of the second by second data acquired during routine operation of the analyzer.
2. Spec Logs – logs of all the spectrometer data, acquired second by second. Note this folder will only be
present for OIW EX-1000 analyzers which are fitted with a spectrometer. Additional spectrometer information
can be found in Section 3.2.3.1.5.4 – Spectrometer Settings or in the Spectrometer Handbook (OIW-HBO-0005-
EX-002)
3. US Logs – contains the Ultrasonic unit power and timing information.
