To alter baud rate or checksum settings, you must perform the following steps:
 Power on all components except the ADAM Module.

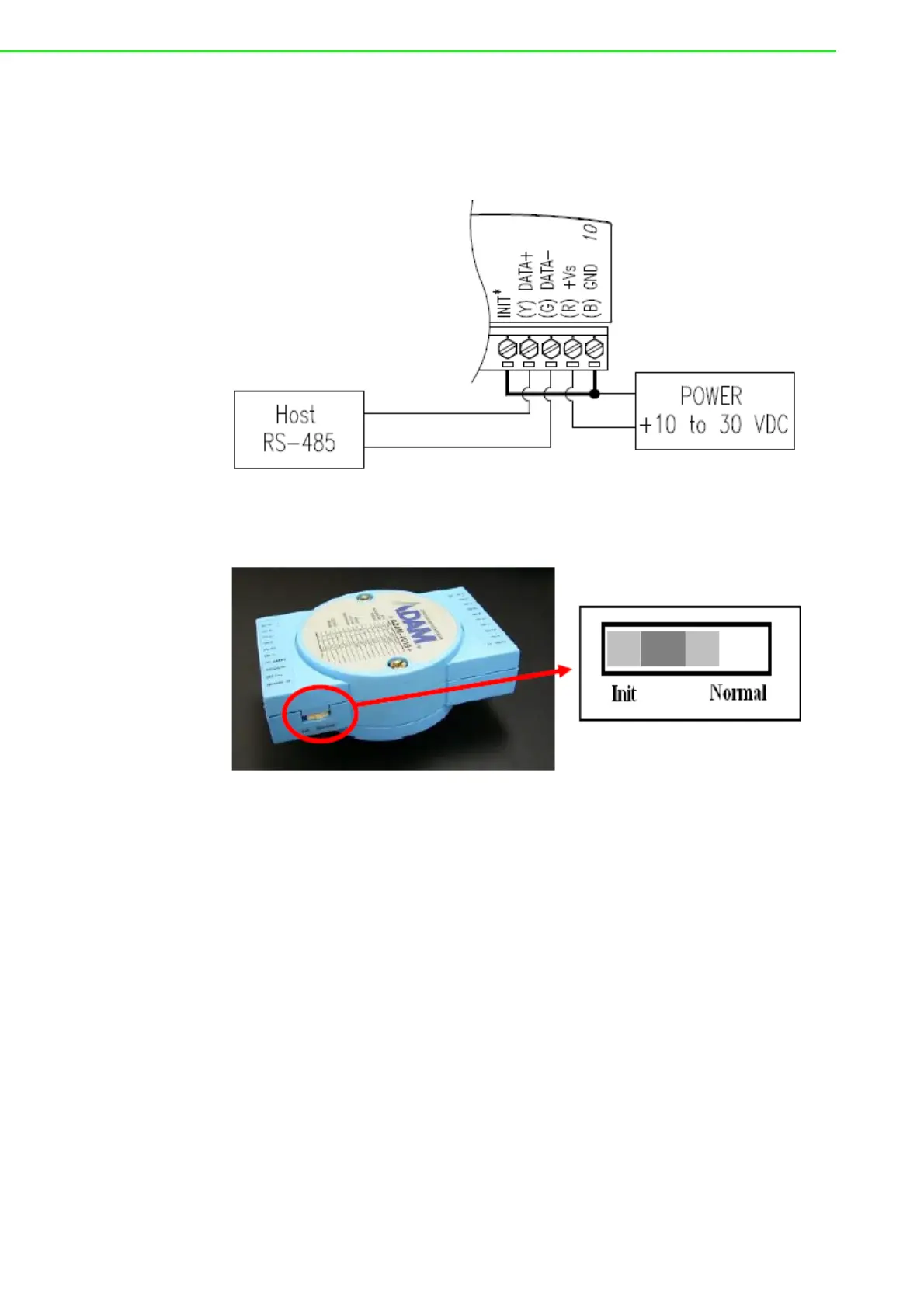

 • Power the ADAM module on while shorting the INIT* and GND terminals (See
Figure 2.3) or set the INIT switch to “Init” (See Figure 2-4)
Figure 2.3 Grounding the INIT* Terminal
Figure 2.4 Set INIT switch to “Init”
 Configure the checksum status and/or the baud rate.
 Switch the power OFF to the ADAM Module.
 Remove the grounding of the INIT* terminal and turn on the module, or set the
INIT switch to “Normal”.
 Check the settings (If the baud rate has changed, the settings on the host com-
puter should be changed accordingly).
