3.17 ADAM-4056S 12-channel Sink Type Isolated
Digital Output Module
ADAM-4056S is a 12-channel sink type isolated digital output module. The isolated
channels are designed for digital output for critical applications. Open collector out-
puts can provide from +5 to +40 VDC, and both ADAM ASCII and Modbus/RTU pro-
tocols are supported. LED indicators are used for status reading.

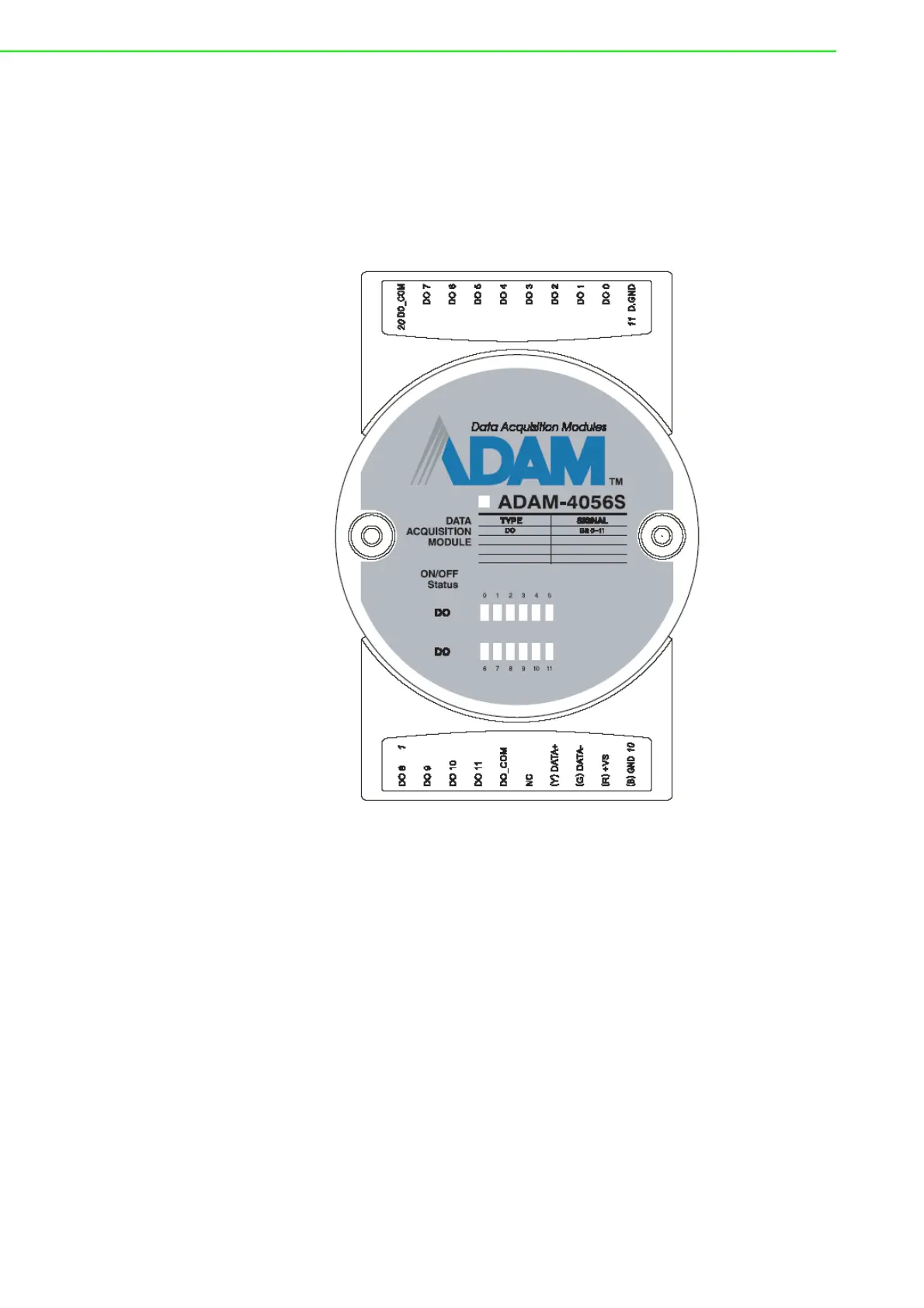

Figure 3.62 ADAM-4056S 12-channel Sink Type Isolated Digital Output Module
3.17.1 Technical Specification of ADAM-4056S
Number of Output Channel: 12
Digital Output:
Open Collector from +5 ~ +40V, 200mA max. load (Sink)
LED Indicator: On: Active, Off: Non-active
Power Consumption: 1 W @ 24V
DC
Optical isolation: 5000 V
DC
Supports Modbus/RTU protocol
I/O Connector Type: 10 pin plug-in terminal*2
Supports Safety Value:
Force the DO channels to safety status when communication is in time-out and
over pre-defined period.
