1-3-4 Power
• Unregulated 10 to 30V
DC
• Protection: Over-voltage and power reversal
1-3-5 Isolation
• Ethernet Communication: 1500 V
DC
• I/O Module: 3000 V
DC
1-3-6 Mechanical
• Case: KJW with captive mounting hardware
• Plug-in Screw Terminal Block:
Accepts 0.5 mm 2 to 2.5 mm 2 , 1 - #12 or 2 - #14 to #22 AWG
1-3-7 Environment
• Operating Temperature: - 10 to 70º C (14 to 158º F)
• Storage Temperature: - 25 to 85º C (-13 to 185º F)
• Humidity: 5 to 95%, non-condensing
• Atmosphere: No corrosive gases
NOTE: Equipment will operate below 30% humidity.
However, static electricity problems occur much more
frequently at lower hu- midity levels. Make sure you take
adequate precautions when you touch the equipment. Consider
using ground straps, anti- static floor coverings, etc. if you use
the equipment in low humidity environments.

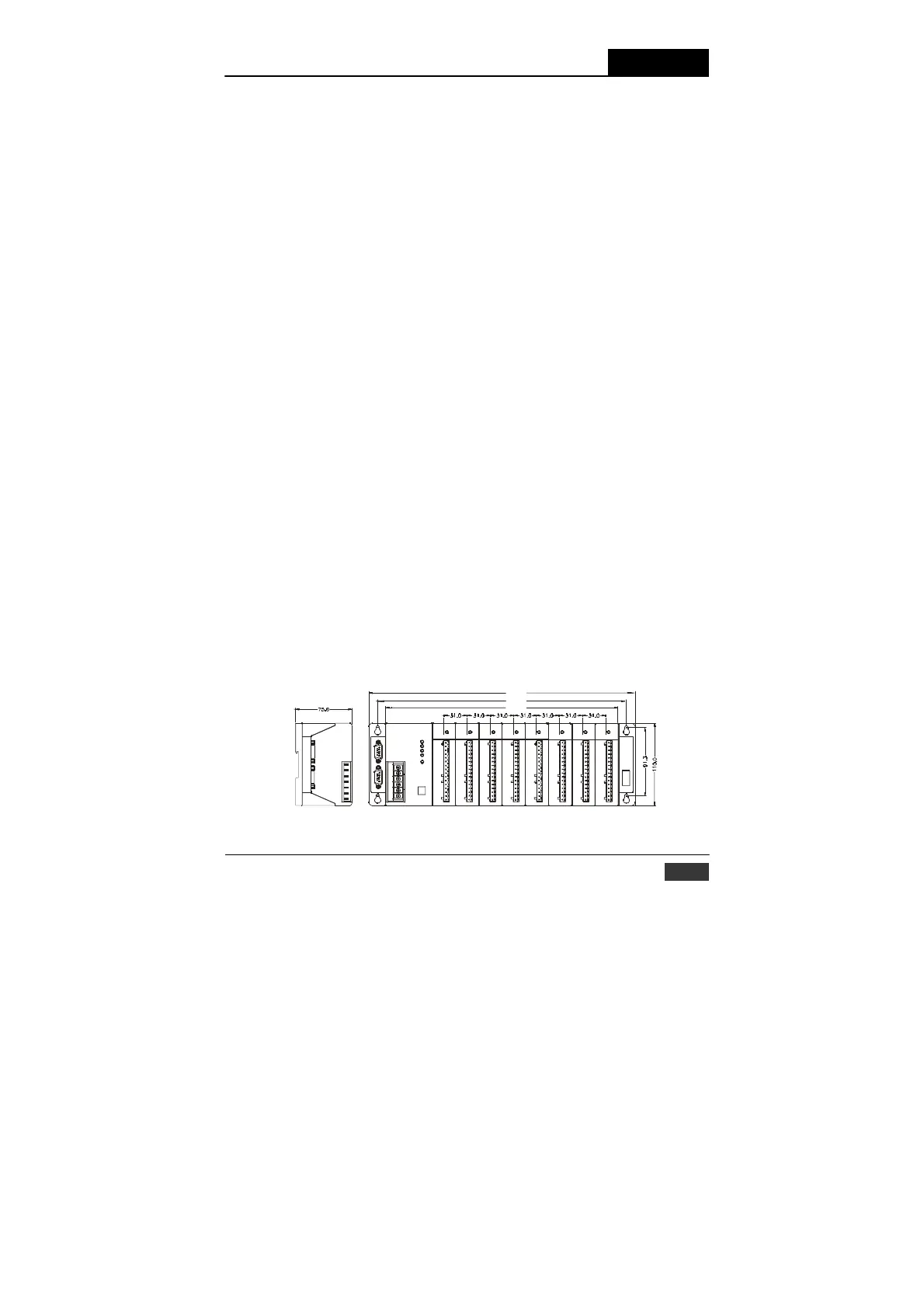

1-3-8 Dimensions The following diagrams show the dimensions
of the system unit and an I/O unit. All dimensions are in millimeters.
Figure 1-2: ADAM-5000/TCP system & I/O module dimensions
ADAM-5000/TCP User’s Manual
1-7
355.0
331.5
309.5
To Next Page
