Advantech ADAM-5000L/TCP User Manual

Appendix C
Grounding Reference

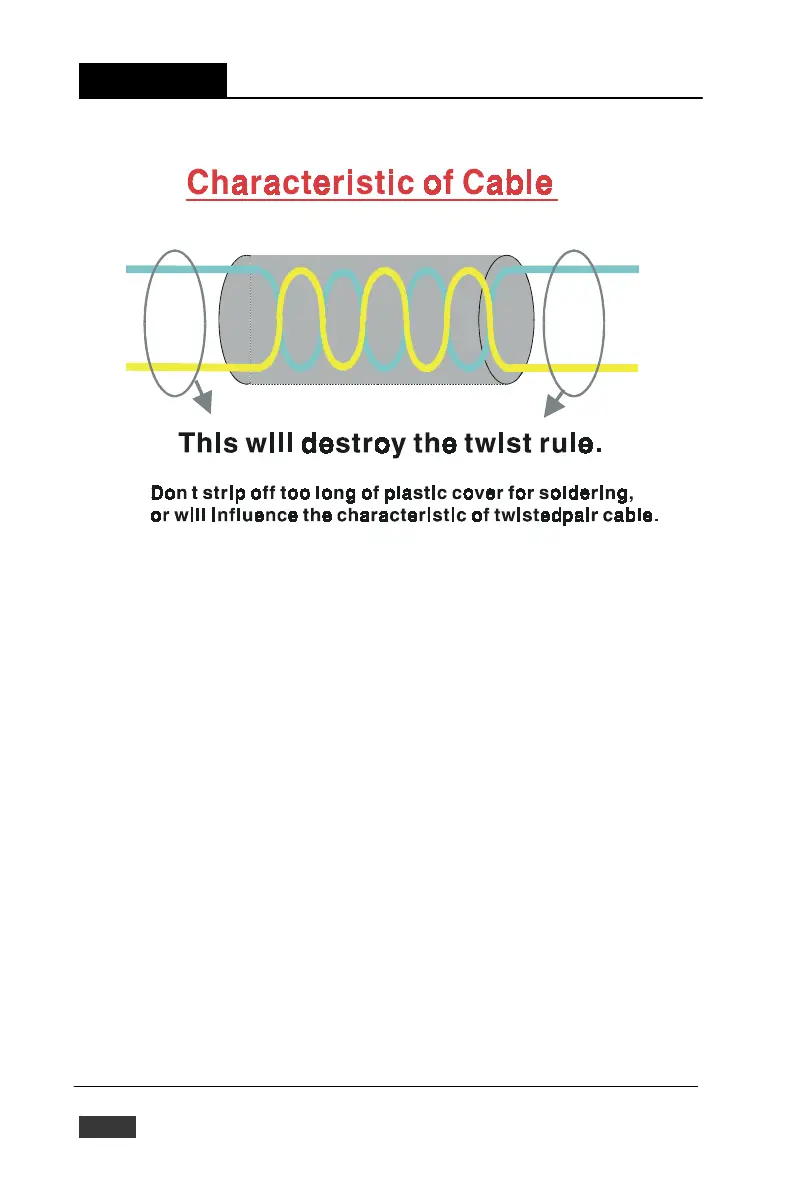

Figure C-12: The characteristic of the cable
• The characteristic of the cable Don’t strip off too much insulation
for soldering. This could change the effectiveness of the Shielded-
Twisted-Pair cable and open a path to in- troduce unwanted noise.
C-14 ADAM-5000/TCP User’s Manual
