Grounding Reference
Appendix C
C.2 Shielding
2-1 Cable Shield

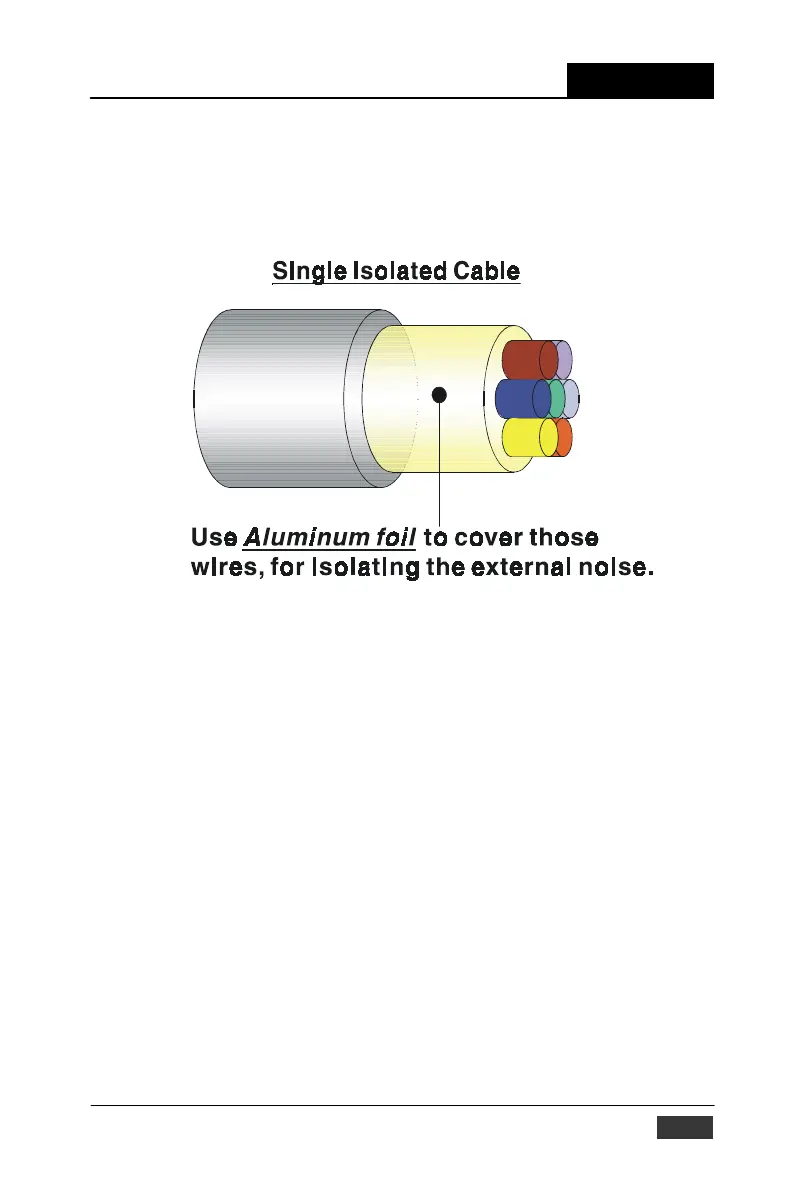

Figure C-9: Single isolated cable
• Single isolated cable The diagram shows the structure of an
isolated cablC. You see the iso- lated layer which is spiraled Aluminum
foil to cover the wires. This spi- raled structure makes a layer for
shielding the cables from external noisC.
ADAM-5000/TCP User’s Manual
C-11
