ADAM-5000 Series User Manual 8
1.2.3 ADAM-5017P 8-ch AI with independent Input
The ADAM-5017P is a 16-bit, 8-channel analog differential input and independent
configuration module. It accepts millivolt inputs (±150mV, ±500mV, 0~150mV,
0~500mV, 0~1V, 0~5V, 0~10V, 0~15V), voltage inputs (±1V, ±5V, ±10V, and ±20V)
and current input (±20 mA, 4~20mA). The module provides data to the host computer
in engineering units (mV, V (supports uni-poloar and bipolar) or mA). This module is
an extremely cost-effective solution for industrial measurement and monitoring appli-
cations. Its high common mode provides 200 VDC, protecting the module and
peripherals from damage due to high input line voltage. Additionally, the module uses
analog multiplexers with active over-voltage protection. The active protection circuitry
assures that signal fidelity is maintained even under fault conditions that would
destroy other multiplexers. This module can withstand an input voltage surge of ±60
VDC.
ADAM-5017P

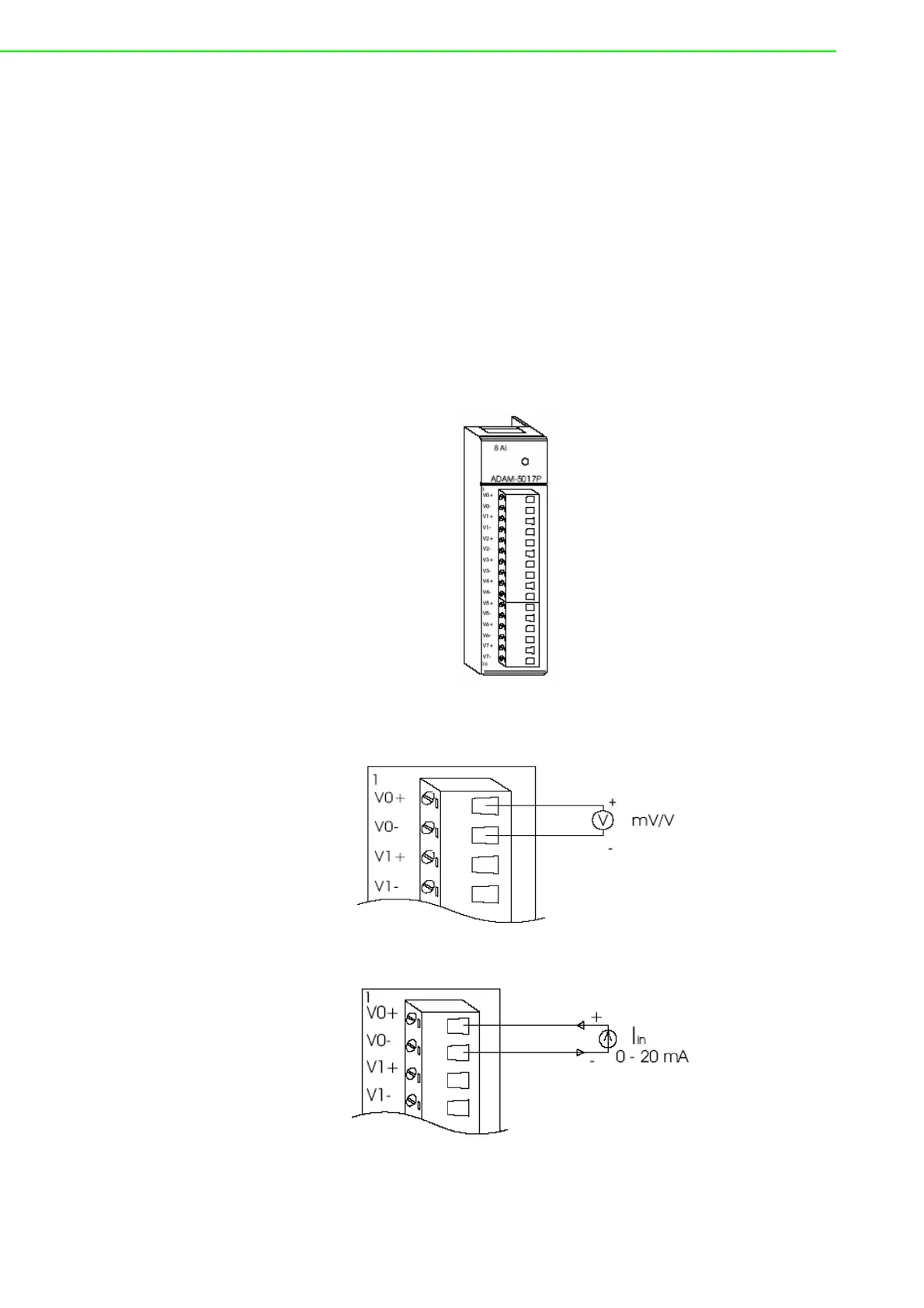

Figure 1.8 ADAM-5017P Module Front View
Application Wiring
Figure 1.9 Millivolt and Volt Input
Figure 1.10 Process Current Input
