ADAM-5000 Series User Manual 56
Features -- Frequency Mode
If users want to select frequency mode, they can only utilize Up Counting type, and
can only connect to C0A+ and C0A-.

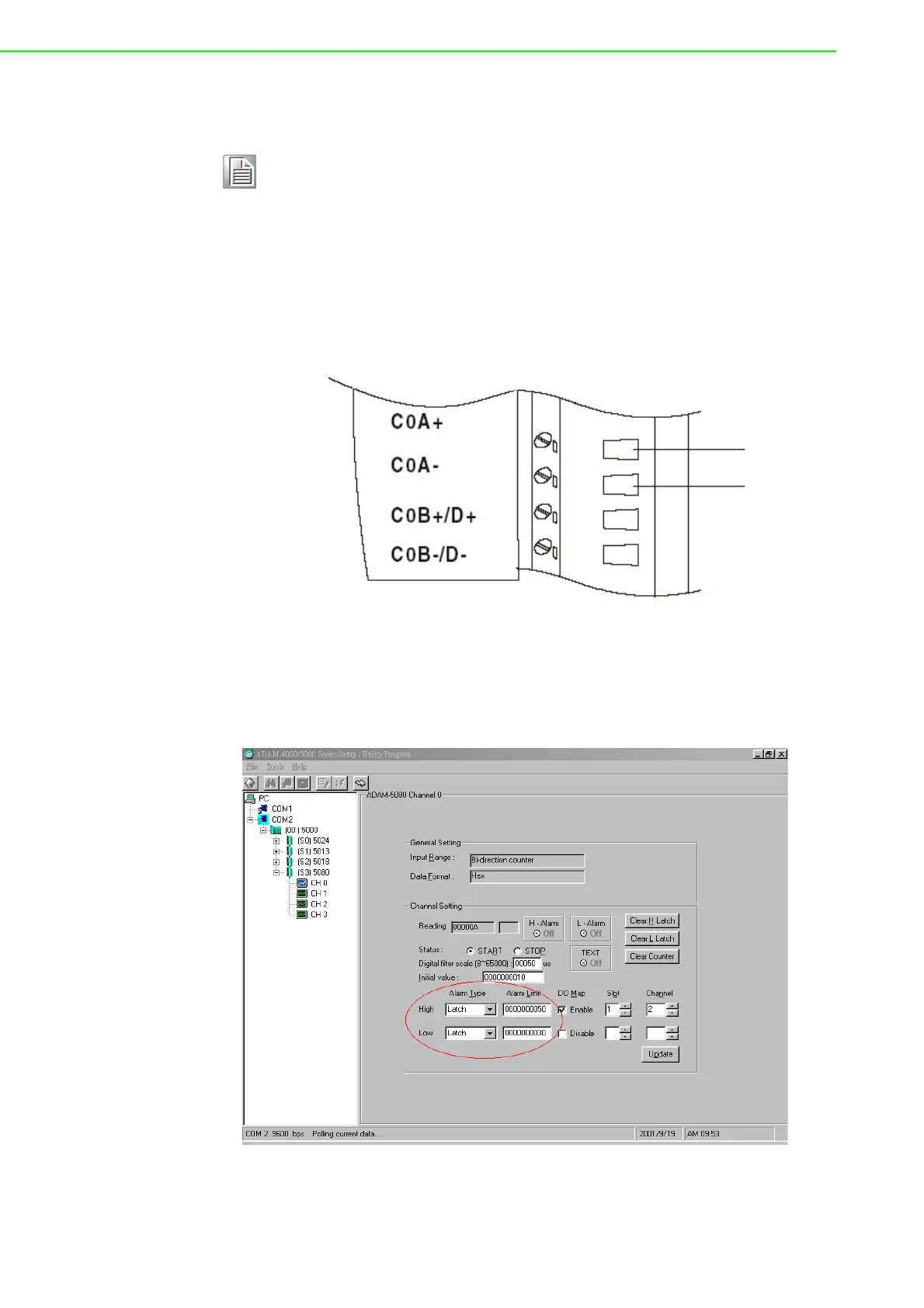

Figure 6.7 Wiring for Frequency Mode
Features -- Alarm Setting
According to your application purposes, you can run the utility program to set different
limit values for High/Low Alarm.
Figure 6.8 Setting Alarm Limit
Note! If users select TTL mode and don't connect C0B+ C0B-, the counter
value will increase. If users select Isolated mode and don't connect
C0B+ C0B-, the counter value will decrease.
For ADAM-5080-BE, if users don't connect C0B+ C0B-, the counter
value will decrease whichever the mode is.
