43 ADAM-5000 Series User Manual
Chapter 4 Digital Input
Output Modules
4.1.8 ADAM-5056S 16-ch Isolated Digital Output Module with LED
The ADAM-5056S provides 16 isolated digital output channels for critical environments
need individual channel isolating protection. Different from other ADAM-5000 I/O mod-
ules, ADAM-5056S designed with 21 pins plug terminal.
ADAM-5056S

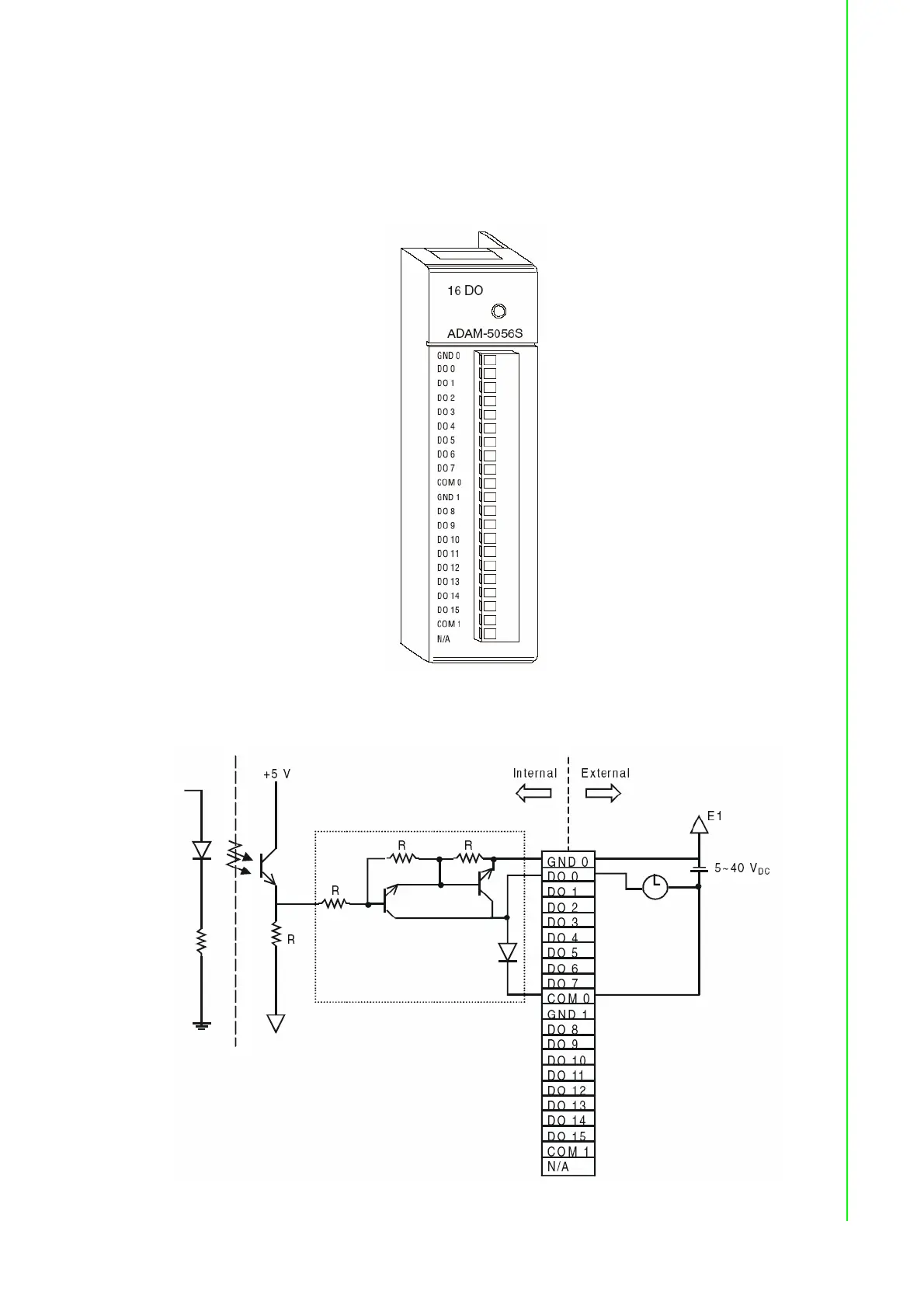

Figure 4.19 ADAM-5056S Module Front View
Application Wiring
Figure 4.20 ADAM-5056S Module Wiring Diagram
