ADAM-5000 Series User Manual 38
4.1.4 ADAM-5052 8-ch Isolated Digital Input Module
ADAM-5052 provides eight fully independent isolated channels. All have 5000 V
RMS
isolation
to prevent ground loop effects and to pre- vent damage from power surges on the input lines.
ADAM-5052

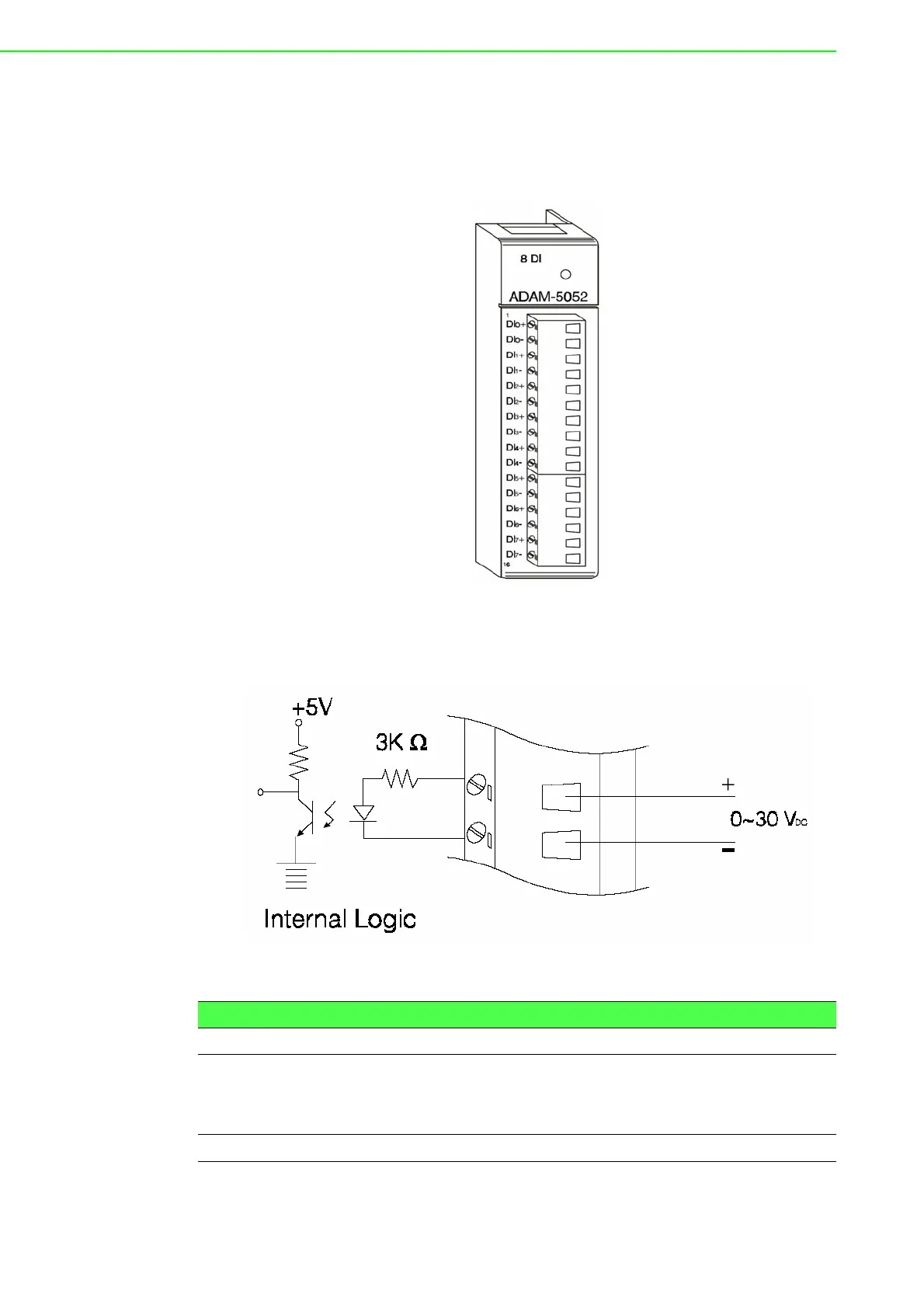

Figure 4.11 ADAM-5052 Module Front View
Application Wiring
Figure 4.12 Isolation Digital Input (ADAM-5052)
Table 4.4: Technical Specifications of ADAM-5052
Points 8 Differential
Digital input Logic level 0: + 1 V max
Logic level 1: + 3.5 to 30 V
Isolation voltage: 5000 V
RMS
Resistance: 3 k-/ 0.5 W
Power consumption 0.4 W
