ADAM-5000 Series User Manual 42
Application Wiring

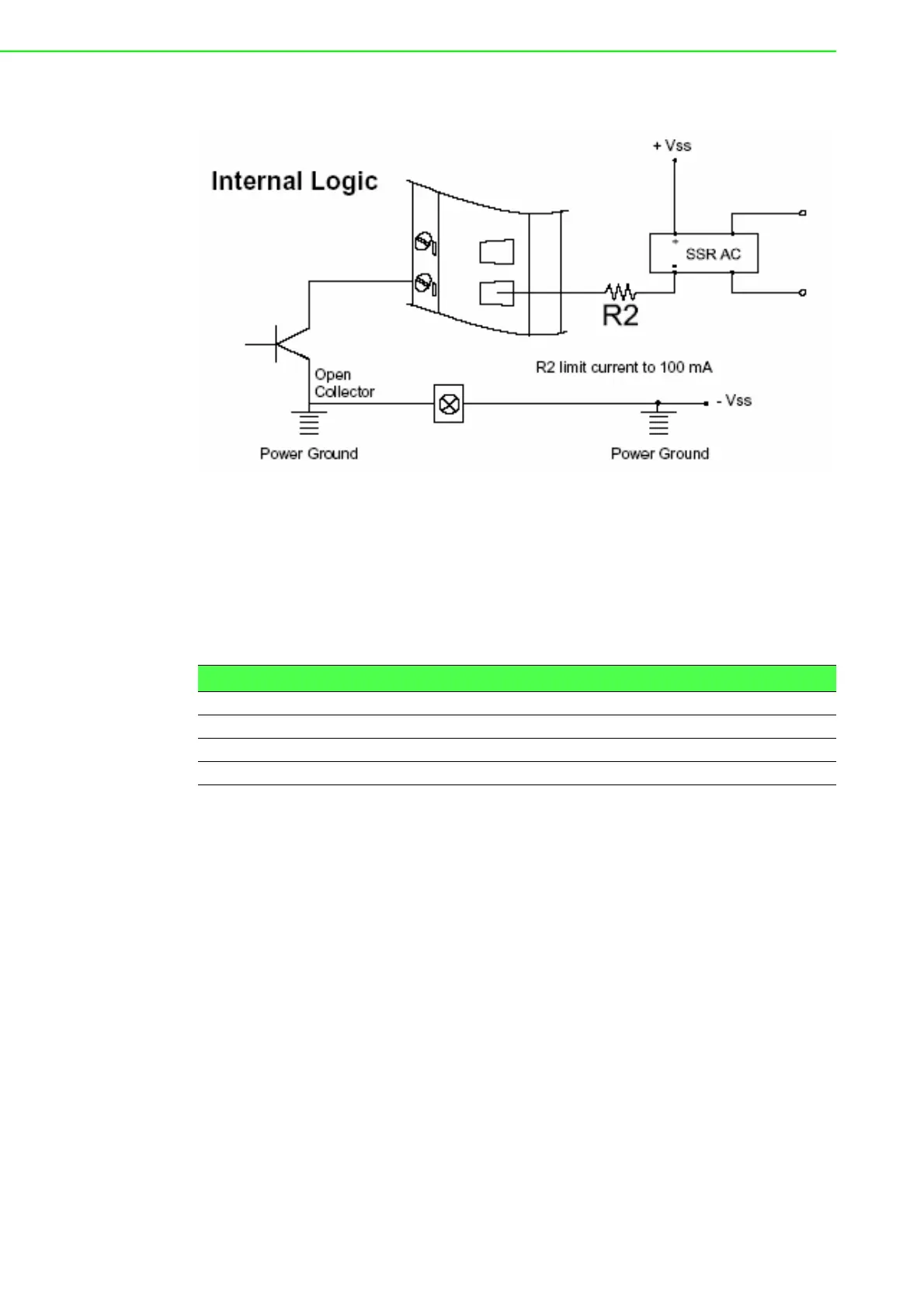

Figure 4.18 Digital Output with SSR (ADAM-5050/5056)
There are 16-point digital input and 16-point digital output modules in the ADAM-
5000 series. The addition of these solid state digital I/O devices allows these mod-
ules to control or monitor the interfaces between high power DC or AC lines and TTL
logic signals. A command from the host converts these signals into logic levels suit-
able for the solid-state I/O devices.
Table 4.7: Technical Specifications of ADAM-5056
Points 16
Digital Output Open collector to 30 V 100 mA max load
Power Dissipation 450 mW
Power Consumption 0.25 W
