Advantech ADAM-5013 - Figure 4.10 ADAM-5051 S Module Wiring Diagram

37 ADAM-5000 Series User Manual
Chapter 4 Digital Input
/
Output Modules
Application Wiring

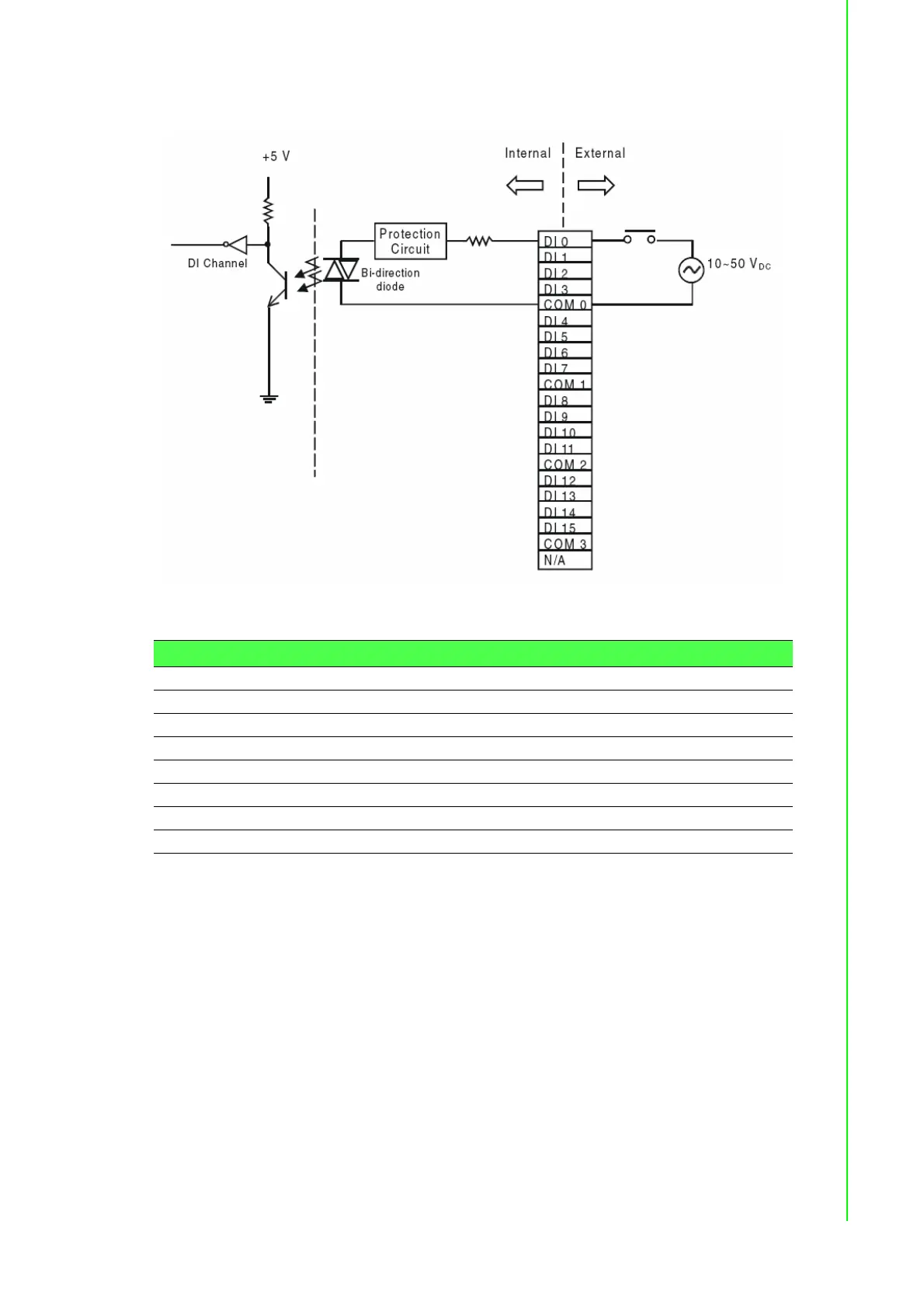

Figure 4.10 ADAM-5051S Module Wiring Diagram
Table 4.3: Technical Specifications of ADAM-5051S
Point 16 (4-channel/group)
Digital Input Logic Level 0: + 3 V max Logic Level 1: + 10 to 50 V
Optical Isolation 2500 V
DC
Opto-isolator response time 25 µs
Over-voltage Protection 70 V
DC
Power Consumption 0.8 W
LED Indicator On when active
I/O Connector Type 21-pin plug-terminal
