ADAM-5000 Series User Manual 40
4.1.6 ADAM-5055S 16-ch Isolated Digital I/O Module with LED
The ADAM-5055S provides 8 isolated digital input and 8 isolated output channels for crit-
ical environments need individual channel isolating protection. Different from other
ADAM-5000 I/O modules, ADAM-5055S designed with 21 pins plug terminal.
ADAM-5055S

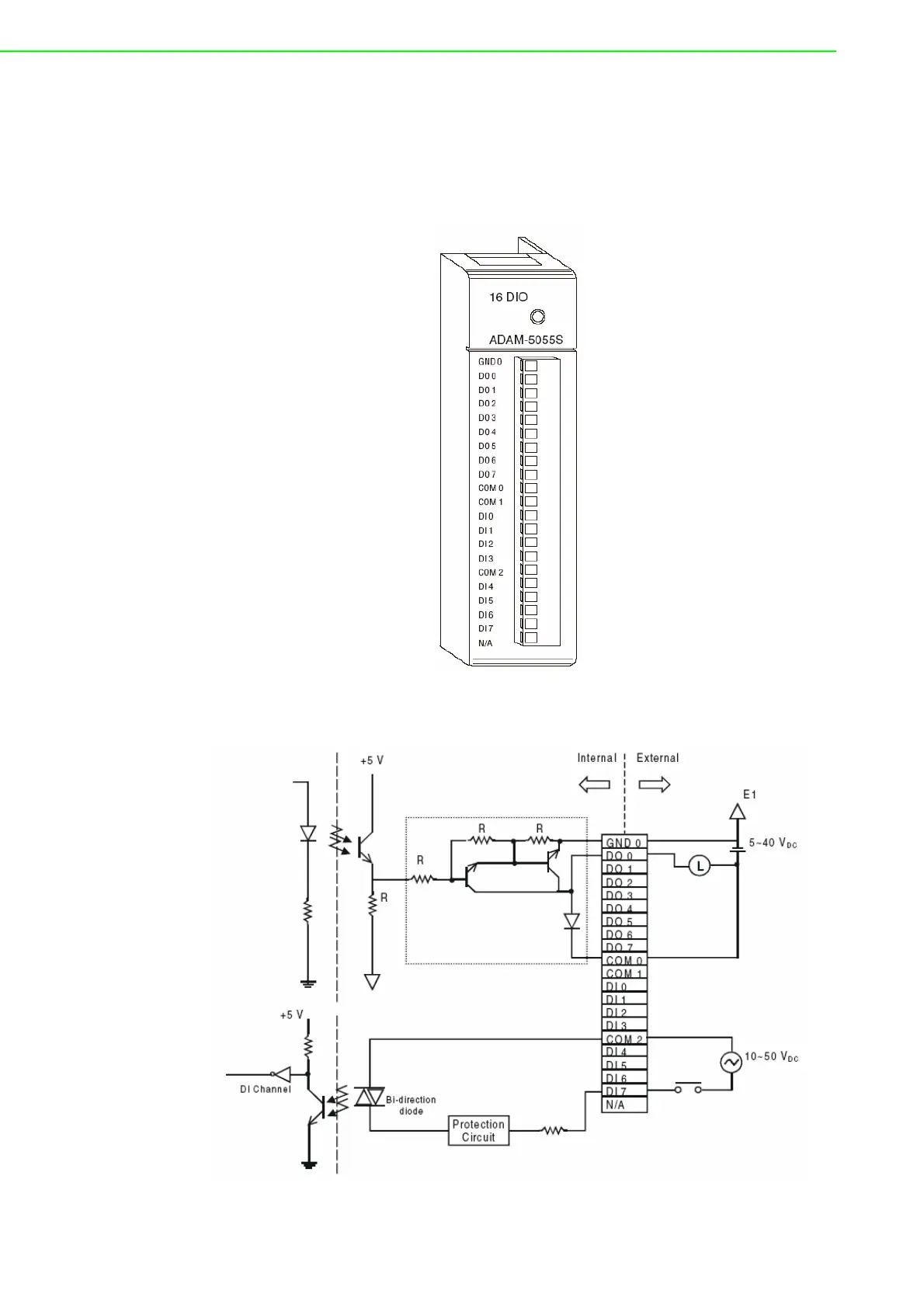

Figure 4.15 ADAM-5055S Module Front View
Application Wiring
Figure 4.16 ADAM-5055S Module Wiring Diagram
