5.1 Relay Output Modules
5.1.1 ADAM-5060 Relay Output Module
The ADAM-5060 relay output module is a low-cost alternative to SSR modules. It pro-
vides 6 relay channels, two of Form A and four of Form C.
ADAM-5060

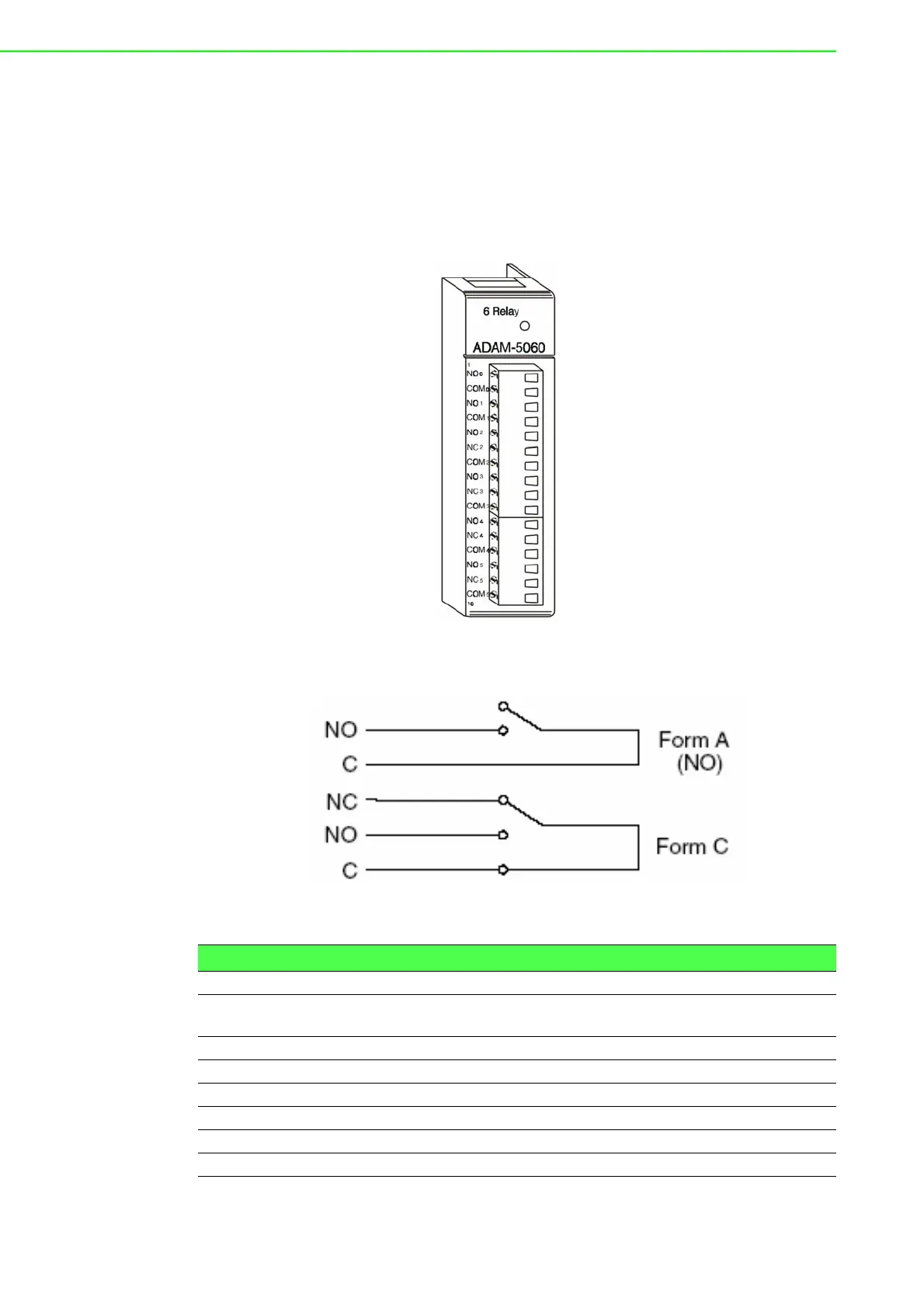

Figure 5.1 ADAM-5060 Module Frontal View
Application Wiring
Figure 5.2 Relay Output
Table 5.1: Technical Specifications of ADAM-5060
Points 6, two Form A and four Form C
Contact rating AC: 125 V @ 0.6A; 250 V @ 0.3 A DC: 30 V @ 2 A; 110
V @ 0.6 A
Breakdown voltage 500 V
AC(50/60 Hz)
Relay on time (typical) 3 ms
Relay off time (typical) 1 ms
Total switching time 10 ms
Insulation resistance 1000 M- min. @ 500 V
DC
Power consumption 0.7 W
